Onyx 19" Fanless 6th Generation Core i7 ...

Onyx - 19" Fanless 6th Generation Core i7 Powerful Medical All in One PC

Supplier: Micromax

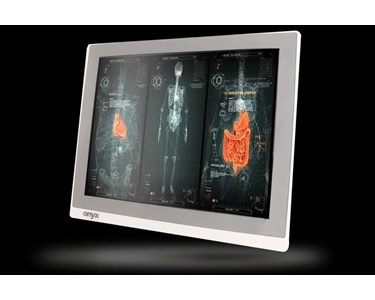

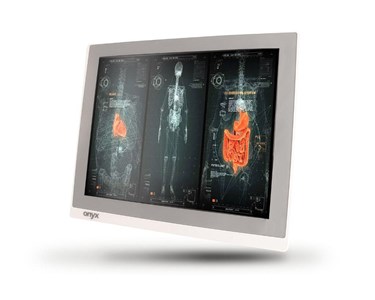

19" Fanless 6th Generation Core i7 Powerful Medical All in One PC

Discover the Onyx 19" Fanless 6th Gen Core i7 Medical All-in-One PC which is engineered for reliability and performance in healthcare. Enjoy silent operation and seamless multitasking for optimal patient care.

Features

Intel® 6th Generation Core™ i7 / i5 / i3 processor
Intel® H110 chipset
Supports dual channel DDR4 2133 SODIMM up to 32GB
19" SXGA LCD with LED backlight
Capacitive multi-touch screen
Two Gigabit Ethernet
High speed USB 3.0 ports
RS-232 x 2
PCI Express [x1] x 1 (optional)
25Wh backup battery (optional)

Specifications

Main Specifications
Processor	Intel® 6th Generation Core i7 / i5 / i3 processor
System Memory	Supports dual channel DDR4 2133 SODIMM up to 32GB
Chipset	Intel® H110
OS Support	Windows® 7, Windows® 10, Linux®
Storage Disk Drive	2.5" SATA hard disk drive / SSD x 1 Slim DVD-RW drive x 1 (optional)
Security	Trusted Platform Module, RFID reader (optional) Smart card reader x 1 (optional)
Wireless Communication	802.11ac, Bluetooth 5.1 (optional)
Speaker	5W x 2
Function Key	Speaker volume up/down, LCD brightness up/down, LCD on/off, touch screen on/off, reading light on/off
Power Requirement	DC 12V / DC 24V when backup battery is installed
Display
Size / Type	19" TN LCD
Max. Resolution	1280 x 1024
Luminance (cd/m²) (typ.)	250 nits
Viewing Angle	170° (H) / 160° (V)
Contrast Ratio	1000:1
Back Light Life Time	30,000 Hours
Touch Screen	Capacitive multi-touch screen
I/O
USB	USB 3.0 x 4, USB 2.0 x 2
Serial Port	RS-232 x 2
Ethernet	1.5KV isolated Gigabit LAN x 2
Video Out	DisplayPort 1.2 x 1, HDMI 1.4 x 1 (supports resolution up to 3840 x 2160)
Audio	Mic-in, line-out
Mechanical and Environmental
Operating Temperature	0°C ~ 35°C (32°F ~ 95°F)
Storage Temperature	-20°C ~ 60°C (-4°F ~ 140°F)
Mounting	VESA 75 / 100 mm
Degree of Protection	IP65 in the front; IP54 in the back
Dimension	450 x 388 x 66 mm
Package Size	640 x 220 x 520 mm
Gross Weight	11 kg (24.25 lb)
Net Weight	7.5 kg (16.53 lb)
Certifications	FCC: Part 15B / Part 18

Ordering Information

MATE-1903ST-A11-1010 - Medical Panel PC, 19" LCD, i7, DC 12V, capacitive touch

MATE-1903ST-A12-1010 - Medical Panel PC, 19" LCD, i5, DC 12V, capacitive touch

Optional Accessories

1255301204 - Medical power adapter, 120W, 12V

1255301206 - Medical power adapter, 120W, 24V

OPM-T006-A2 - Smart card reader kit

OPM-T013-A2 - Slim slot-in DVD-RW drive

OPM-C15W-A2 - WLAN kit, IEEE 802.11ac + Bluetooth 5.1

OPM-R03X-A1 - PCI Express [x1] riser kit

OPM-S07R-A1 - RFID reader kit

OPM-C02C-A1 - Two isolated RS-232 and one isolated USB 2.0 PCIe card

OPM-C02C-A2 - Two isolated RS-232 PCIe card

OPM-T017-A4 - Hot swap rack with lock kit for 2.5" HDD / SSD

OPM-P09C-A4 - 25Wh backup battery

To contact Micromax about Onyx 19" Fanless 6th Generation Core i7 Powerful Medical All in One PC use Get a quote.
