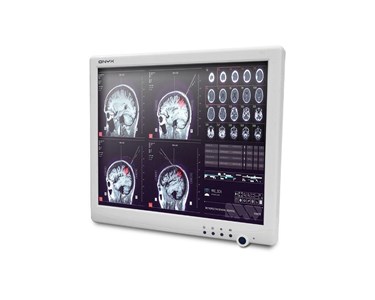

Onyx - 17" Fanless Slim Medical All In One PC | SMA-1733

Supplier: Micromax

17" Fanless Slim Medical All In One PC | SMA-1733

Discover the Onyx 17" Fanless Slim Medical All-In-One PC | SMA-173 Designed for healthcare, it offers silent operation, space-saving design, and reliable performance for seamless patient care.

Features

Intel® Celeron® N6210 / Atom™ x6211E / Atom™ x6425E processor
17" 350-nit SXGA LCD
Supports DDR4 SODIMM up to 32GB (optional In-Band ECC support)
5-wire resistive touch screen
Smart card reader (optional) / RFID reader (optional)
+12V DC input

Specifications

Main Specifications
Processor	Intel® Atom™ x6425E 3.0GHz quad core processor Intel® Atom™ x6211E 3.0GHz dual core processor Intel® Celeron® N6210 2.6GHz dual core processor
System Memory	Supports DDR4 SODIMM up to 32GB (optional In-Band ECC support)
Expansion Interface	M.2 2230 (E-key) x 1, proprietary PCIe [x1] x 1 (optional)
Storage Disk Drive	M.2 2242 (B-key) SATA SSD x 1
Security	TPM 2.0, RFID reader (optional)
Function Key	Speaker volume up/down, LCD brightness up/down
Wireless Communication	802.11 a/b/g/n/ac/ax + Bluetooth 5.3 (optional)
Speaker	Built-in speaker (3W x 2)
Power Requirement	DC 12V
OS Support	Windows® 10 and 11, Linux (optional)
Display
Size	17" TFT LCD
Type	TN
Resolution	1280 x 1024
Luminance	350 nits
View Angle	170° (H) / 160° (V)
Contrast Ratio	1000:1
Back Light Life Time	>30,000 hours
Touch Screen	5-wire resistive

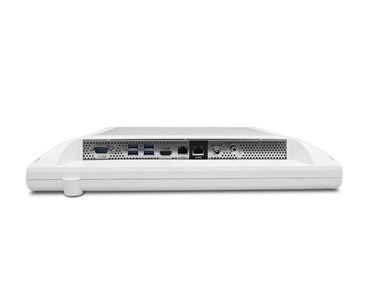

I/O
USB	USB 3.2 Gen 1x1 x 4
Serial Port	RS-232 x 1
Ethernet	Gigabit LAN x 2 (isolated x 1 + non-isolated x 1)
Video Out	HDMI 2.0b x 1
Mechanical and Environmental
Power Consumption	Full loading: 57.3 Watts
Operating Temperature	0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature	-20°C ~ 60°C (-4°F ~ 140°F)

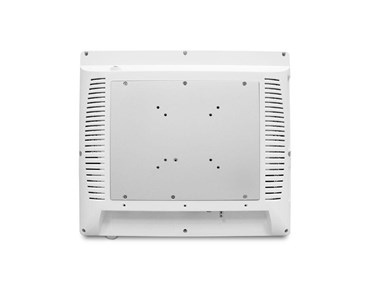

Mounting	VESA 75 / 100 mm
Degree of Protection	Front IP65, rear IPX1
Dimension	384 x 338 x 69 mm
Package Size	615 x 227 x 628 mm
Gross Weight	9 kg (19.84 lb)
Net Weight	5.6 kg (12.32 lb)
Certifications	CE: EN 60601-1-2:2015 + A1:2021 (V4.1), EN 60601-1:2007 + A1:2013 + A2:2021 (V3.2) EN 55032:2015/A1:2020 EN 55035:2017/A11:2020 (ITE) IEC 62368-1:2020+A11:2020 (ITE) FCC: Part 15B / Part 18 UL: ANSI AAMI ES60601-1:2005/A1:2012/A2:2021 (V3.2) cUL: CAN/CSA-C22.2 No. 60601-1:14 (IEC 60601-1: 2005+A1:2012+A2:2020, MOD) (V3.2) TELEC: Japan TELEC

Ordering Information

SMA-1733-P1-A1-0010 - Slim medical AIO, 17" LCD, resistive touch, Celeron N6210, DC 12V

SMA-1733-P2-A1-0010 - Slim medical AIO, 17" LCD, resistive touch, Atom x6211E, DC 12V

SMA-1733-P3-A1-0010 - Slim medical AIO, 17" LCD, resistive touch, Atom x6425E, DC 12V

Optional Accessories

1255300841 - Medical power adapter, 84W, 12V

OPM-T008-A1 - Smart card reader kit

OPM-T007-A5 - Slim slot-in DVD-RW drive

OPM-C20W-A9 - WLAN kit, IEEE 802.11 a/b/g/n/ac/ax + Bluetooth 5.3

To contact Micromax about Onyx 17" Fanless Slim Medical All In One PC | SMA-1733 use Get a quote.

Features

Intel® Celeron® N6210 / Atom™ x6211E / Atom™ x6425E processor
17" 350-nit SXGA LCD
Supports DDR4 SODIMM up to 32GB (optional In-Band ECC support)
5-wire resistive touch screen
Smart card reader (optional) / RFID reader (optional)
+12V DC input

Specifications

Main Specifications
Processor	Intel® Atom™ x6425E 3.0GHz quad core processor Intel® Atom™ x6211E 3.0GHz dual core processor Intel® Celeron® N6210 2.6GHz dual core processor
System Memory	Supports DDR4 SODIMM up to 32GB (optional In-Band ECC support)
Expansion Interface	M.2 2230 (E-key) x 1, proprietary PCIe [x1] x 1 (optional)
Storage Disk Drive	M.2 2242 (B-key) SATA SSD x 1
Security	TPM 2.0, RFID reader (optional)
Function Key	Speaker volume up/down, LCD brightness up/down
Wireless Communication	802.11 a/b/g/n/ac/ax + Bluetooth 5.3 (optional)
Speaker	Built-in speaker (3W x 2)
Power Requirement	DC 12V
OS Support	Windows® 10 and 11, Linux (optional)
Display
Size	17" TFT LCD
Type	TN
Resolution	1280 x 1024
Luminance	350 nits
View Angle	170° (H) / 160° (V)
Contrast Ratio	1000:1
Back Light Life Time	>30,000 hours
Touch Screen	5-wire resistive
I/O
USB	USB 3.2 Gen 1x1 x 4
Serial Port	RS-232 x 1
Ethernet	Gigabit LAN x 2 (isolated x 1 + non-isolated x 1)
Video Out	HDMI 2.0b x 1
Mechanical and Environmental
Power Consumption	Full loading: 57.3 Watts
Operating Temperature	0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature	-20°C ~ 60°C (-4°F ~ 140°F)
Mounting	VESA 75 / 100 mm
Degree of Protection	Front IP65, rear IPX1
Dimension	384 x 338 x 69 mm
Package Size	615 x 227 x 628 mm
Gross Weight	9 kg (19.84 lb)
Net Weight	5.6 kg (12.32 lb)
Certifications	CE: EN 60601-1-2:2015 + A1:2021 (V4.1), EN 60601-1:2007 + A1:2013 + A2:2021 (V3.2) EN 55032:2015/A1:2020 EN 55035:2017/A11:2020 (ITE) IEC 62368-1:2020+A11:2020 (ITE) FCC: Part 15B / Part 18 UL: ANSI AAMI ES60601-1:2005/A1:2012/A2:2021 (V3.2) cUL: CAN/CSA-C22.2 No. 60601-1:14 (IEC 60601-1: 2005+A1:2012+A2:2020, MOD) (V3.2) TELEC: Japan TELEC

Ordering Information

SMA-1733-P1-A1-0010 - Slim medical AIO, 17" LCD, resistive touch, Celeron N6210, DC 12V

SMA-1733-P2-A1-0010 - Slim medical AIO, 17" LCD, resistive touch, Atom x6211E, DC 12V

SMA-1733-P3-A1-0010 - Slim medical AIO, 17" LCD, resistive touch, Atom x6425E, DC 12V

Optional Accessories

1255300841 - Medical power adapter, 84W, 12V

OPM-T008-A1 - Smart card reader kit

OPM-T007-A5 - Slim slot-in DVD-RW drive

OPM-C20W-A9 - WLAN kit, IEEE 802.11 a/b/g/n/ac/ax + Bluetooth 5.3
