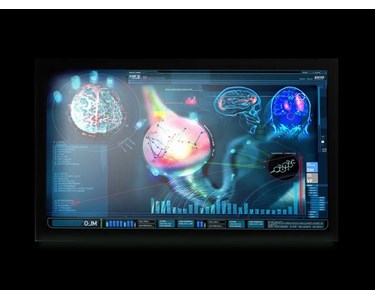

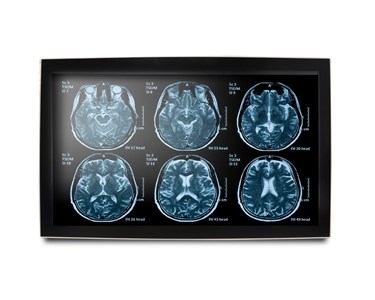

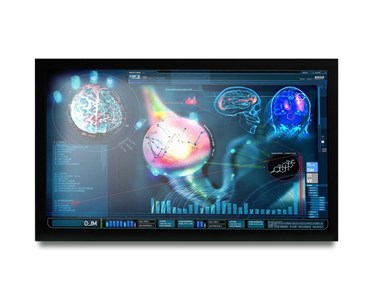

Onyx - 23.8” Slim Medical Display | MEDDP-624

Supplier: Micromax

23.8” Slim Medical Display | MEDDP-624

Introducing the Onyx 23.8” Slim Medical Display | MEDDP-624: Enhance patient care with crystal-clear visuals, ergonomic design, and seamless integration for superior diagnostics and efficiency in any healthcare setting.

Features

23.8" LCD panel with LED backlight
Compact and terse design
DVI x 1, HDMI x 1, DP x 1
True flat screen with PCT touch
Invisible OSD design
Low power consumption
Two built-in audio speakers

Specifications

Display
Size	23.8"
Resolution	FHD 1920 x 1080
Max. Colors	16.7M
Brightness (typ.)	400 nits
Viewing Angle (CR=10) (typ.)	89° (H) / 89° (V)
Contrast Ratio (typ.)	1000:1
Touch Screen	Projective capacitive touch screen (optional)
Power Requirement	External power adapter, AC in 100~240V, DC 12V / 5A
System
OS Support	Windows® 10, Windows® 11
I/O

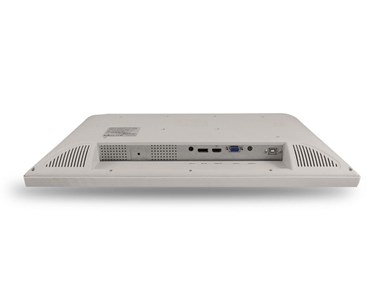

Input Signal	DVI-D x 1, HDMI 1.4 x 1, DP 1.2 x 1
USB Port	USB 2.0 Type B x 1 for touch screen
Audio	Line-in x 1
Speaker	Built-in 2W speaker x 2
Mechanical and Environmental
Operating Temperature	5°C ~ 40°C (41°F ~ 104°F)
Storage Temperature	-10°C ~ 60°C (14°F ~ 140°F)
Storage Humidity	10%~90% @ 35°C, non-condensing
VESA	100 x 200 mm, 100 x 100 mm
Dimension (W/H/D)	576.89 x 345.09 x 62.70 mm
Packing Size (W/H/D)	645 x 545 x 295 mm
Gross Weight	9.22 kg (20.33 lb)
Net Weight	5.91 kg (13.03 lb)
Certifications	CE: EN 60601-1-2:2015 + A1:2021 (V4.1), EN 60601-1:2007/A1:2013/A2:2021 (V3.2) FCC: Part 18 Subpart C

Ordering Information

MEDDP-624HNN-A1-1020 - 23.8" LCD monitor, 400 nits, DVI-D x 1, HDMI x 1, DP x 1, DC 12V adapter

MEDDP-624HPN-A1-1020 - 23.8" LCD monitor, 400 nits, DVI-D x 1, HDMI x 1, DP x 1, DC 12V adapter, P-Cap touch

MEDDP-624TND-A1-1020 - 23.8" LCD monitor, 400 nits, DVI-D x 1, HDMI x 1, DP x 1, DC 12V adapter, DICOM

MEDDP-624TPD-A1-1020 - 23.8" LCD monitor, 400 nits, DVI-D x 1, HDMI x 1, DP x 1, DC 12V adapter, P-Cap touch, DICOM

To contact Micromax about Onyx 23.8” Slim Medical Display | MEDDP-624 use Get a quote.

Features

23.8" LCD panel with LED backlight
Compact and terse design
DVI x 1, HDMI x 1, DP x 1
True flat screen with PCT touch
Invisible OSD design
Low power consumption
Two built-in audio speakers

Specifications

Display
Size	23.8"
Resolution	FHD 1920 x 1080
Max. Colors	16.7M
Brightness (typ.)	400 nits
Viewing Angle (CR=10) (typ.)	89° (H) / 89° (V)
Contrast Ratio (typ.)	1000:1
Touch Screen	Projective capacitive touch screen (optional)
Power Requirement	External power adapter, AC in 100~240V, DC 12V / 5A
System
OS Support	Windows® 10, Windows® 11
I/O
Input Signal	DVI-D x 1, HDMI 1.4 x 1, DP 1.2 x 1
USB Port	USB 2.0 Type B x 1 for touch screen
Audio	Line-in x 1
Speaker	Built-in 2W speaker x 2
Mechanical and Environmental
Operating Temperature	5°C ~ 40°C (41°F ~ 104°F)
Storage Temperature	-10°C ~ 60°C (14°F ~ 140°F)
Storage Humidity	10%~90% @ 35°C, non-condensing
VESA	100 x 200 mm, 100 x 100 mm
Dimension (W/H/D)	576.89 x 345.09 x 62.70 mm
Packing Size (W/H/D)	645 x 545 x 295 mm
Gross Weight	9.22 kg (20.33 lb)
Net Weight	5.91 kg (13.03 lb)
Certifications	CE: EN 60601-1-2:2015 + A1:2021 (V4.1), EN 60601-1:2007/A1:2013/A2:2021 (V3.2) FCC: Part 18 Subpart C

Ordering Information

MEDDP-624HNN-A1-1020 - 23.8" LCD monitor, 400 nits, DVI-D x 1, HDMI x 1, DP x 1, DC 12V adapter

MEDDP-624HPN-A1-1020 - 23.8" LCD monitor, 400 nits, DVI-D x 1, HDMI x 1, DP x 1, DC 12V adapter, P-Cap touch

MEDDP-624TND-A1-1020 - 23.8" LCD monitor, 400 nits, DVI-D x 1, HDMI x 1, DP x 1, DC 12V adapter, DICOM

MEDDP-624TPD-A1-1020 - 23.8" LCD monitor, 400 nits, DVI-D x 1, HDMI x 1, DP x 1, DC 12V adapter, P-Cap touch, DICOM

Read less...

To contact Micromax about Onyx 23.8” Slim Medical Display | MEDDP-624 use Get a quote.

Datasheet(0.52MB)
