Onyx NVIDIA IGX Platform For Medical AI ...

Onyx - NVIDIA IGX Platform For Medical AI Imaging Application - ACCEL-JS2000

Supplier: Micromax

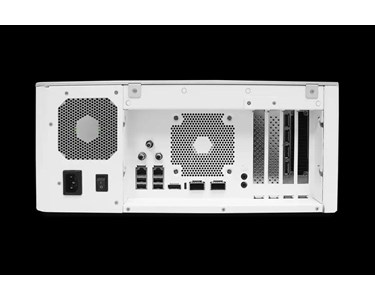

NVIDIA IGX Platform For Medical AI Imaging Application - ACCEL-JS2000

Unlock advanced medical imaging with the NVIDIA IGX Platform - ACCEL-JS2000 by Onyx. Experience unparalleled performance and precision for AI-driven diagnostics and enhanced patient care.

Features

NVIDIA IGX Orin Industrial Module with 250 TOPS AI performance
Supports RTX 6000 Ada GPU card for up to 1700 TOPS AI performance
ConnectX-7 high speed edge networking, 2 x 100GbE
Dedicated MCU to assure functional safety
Built-in BMC controller providing a standards-based interface for system management and recovery
System power design with 700W medical PSU
Thermal management tuned to maximise performance and lower noise
4K SDI capture card integration (optional)
Optional 7" front screen
Long life cycle support and medical certification

Specifications

Main Specifications
AI Engine	NVIDIA IGX Orin SoC Industrial Module
CPU	12-core Arm® Cortex®-A78AE v8.2
System Memory	64GB 256-bit LPDDR5, 204.8 GB/s
Graphics	2,048-core NVIDIA Ampere architecture with 64 Tensor Cores
Storage	M.2 NVMe SSD x 1 / 2.5" SATA SSD x 2 / 64GB eMMC 5.1
OS Support	IGX-SW 1.1
Front Screen (optional)	7" LED panel with P-Cap touch, 400 nits, 1280 x 800
Safety	Infineon Aurix TC397
NVIDIA BMC	Aspeed AST2600, Microchip ERoT
I/O
USB	4 x USB 3.2 Gen 2 Type A, 1 x USB 3.2 Gen 2 Type C
Ethernet	2 x 100GbE QSFP28 ports, 2 x 1GbE RJ45
Video Out	1 x DisplayPort 1.4a
Video Input (optional)	1 x 12G SDI + 1 x HDMI 2.0 HDMI 2.0 up to 4096 x 2160 @ 60fps 12G SDI up to 4096 x 2160 @ 60fps
Audio	3 x 3.5mm audio jacks (mic, line-in and speaker out)
Serial Port	2 x COM port
Function Port	Grounding pin x 1
Front I/O	1 x power button with power LED indicator, 2 x USB 2.0 Type A
Wireless Communication	1 x M.2 Key E for wireless module, 1 x M.2 Key B for 5G / LTE module
Expansion I/O	1 x PCIe Gen 5 double width slot [x16] for GPU card 1 x PCIe Gen 5 single width slot [x8]
Mechanical and Environmental
Power	100V to 240V AC input, 700W medical power supply
Operating Temperature	0°C ~ 35°C (32°F ~ 95°F)
Storage Temperature	-20°C ~ 60°C (-4°F ~ 140°F)
Dimension	400 x 166 x 407 mm
Package Size	560 x 305 x 628 mm
Gross Weight	14 kg
Net Weight	12 kg
Certifications	CE: EN 60601-1-2:2015 (V4.0), EN 60601-1:2006/A1:2013/A12:2014 (V3.1) FCC: Part 18 Class B UL: ANSI/AAMI ES60601-1:2012 (V3.1) cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)

Ordering Information

ACCEL-JS2000-N1-A2-0010 - Medical AI Edge, IGX Orin, 7" P-Cap, fan, 700W PSU, 64GB RAM, 64GB eMMC, M.2 1TB NVMe, IGX-OS, RTX 6000 Ada
ACCEL-JS2000-N2-A1-0010 - Medical AI Edge, IGX Orin, 7" P-Cap, fan, Full HD DP output, 700W PSU, 64GB RAM, 64GB eMMC, M.2 1TB NVMe, iGPU IGX-OS

Optional Accessories

OPM-C21W-A3 - WLAN kit, 802.11a/b/g/n/ac/ax (Wi-Fi 6) with BT 5.2, dual external antenna, Realtek RTL8852BE

To contact Micromax about Onyx NVIDIA IGX Platform For Medical AI Imaging Application - ACCEL-JS2000 use Get a quote.

Features

NVIDIA IGX Orin Industrial Module with 250 TOPS AI performance
Supports RTX 6000 Ada GPU card for up to 1700 TOPS AI performance
ConnectX-7 high speed edge networking, 2 x 100GbE
Dedicated MCU to assure functional safety
Built-in BMC controller providing a standards-based interface for system management and recovery
System power design with 700W medical PSU
Thermal management tuned to maximise performance and lower noise
4K SDI capture card integration (optional)
Optional 7" front screen
Long life cycle support and medical certification

Specifications

Main Specifications
AI Engine	NVIDIA IGX Orin SoC Industrial Module
CPU	12-core Arm® Cortex®-A78AE v8.2
System Memory	64GB 256-bit LPDDR5, 204.8 GB/s
Graphics	2,048-core NVIDIA Ampere architecture with 64 Tensor Cores
Storage	M.2 NVMe SSD x 1 / 2.5" SATA SSD x 2 / 64GB eMMC 5.1
OS Support	IGX-SW 1.1
Front Screen (optional)	7" LED panel with P-Cap touch, 400 nits, 1280 x 800
Safety	Infineon Aurix TC397
NVIDIA BMC	Aspeed AST2600, Microchip ERoT
I/O
USB	4 x USB 3.2 Gen 2 Type A, 1 x USB 3.2 Gen 2 Type C
Ethernet	2 x 100GbE QSFP28 ports, 2 x 1GbE RJ45
Video Out	1 x DisplayPort 1.4a
Video Input (optional)	1 x 12G SDI + 1 x HDMI 2.0 HDMI 2.0 up to 4096 x 2160 @ 60fps 12G SDI up to 4096 x 2160 @ 60fps
Audio	3 x 3.5mm audio jacks (mic, line-in and speaker out)
Serial Port	2 x COM port
Function Port	Grounding pin x 1
Front I/O	1 x power button with power LED indicator, 2 x USB 2.0 Type A
Wireless Communication	1 x M.2 Key E for wireless module, 1 x M.2 Key B for 5G / LTE module
Expansion I/O	1 x PCIe Gen 5 double width slot [x16] for GPU card 1 x PCIe Gen 5 single width slot [x8]
Mechanical and Environmental
Power	100V to 240V AC input, 700W medical power supply
Operating Temperature	0°C ~ 35°C (32°F ~ 95°F)
Storage Temperature	-20°C ~ 60°C (-4°F ~ 140°F)
Dimension	400 x 166 x 407 mm
Package Size	560 x 305 x 628 mm
Gross Weight	14 kg
Net Weight	12 kg
Certifications	CE: EN 60601-1-2:2015 (V4.0), EN 60601-1:2006/A1:2013/A12:2014 (V3.1) FCC: Part 18 Class B UL: ANSI/AAMI ES60601-1:2012 (V3.1) cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)

Ordering Information

ACCEL-JS2000-N1-A2-0010 - Medical AI Edge, IGX Orin, 7" P-Cap, fan, 700W PSU, 64GB RAM, 64GB eMMC, M.2 1TB NVMe, IGX-OS, RTX 6000 Ada
ACCEL-JS2000-N2-A1-0010 - Medical AI Edge, IGX Orin, 7" P-Cap, fan, Full HD DP output, 700W PSU, 64GB RAM, 64GB eMMC, M.2 1TB NVMe, iGPU IGX-OS

Optional Accessories

OPM-C21W-A3 - WLAN kit, 802.11a/b/g/n/ac/ax (Wi-Fi 6) with BT 5.2, dual external antenna, Realtek RTL8852BE

Read less...

To contact Micromax about Onyx NVIDIA IGX Platform For Medical AI Imaging Application - ACCEL-JS2000 use Get a quote.

Datasheet(5.83MB)

02-ACCEL-JS2000(0.48MB)
