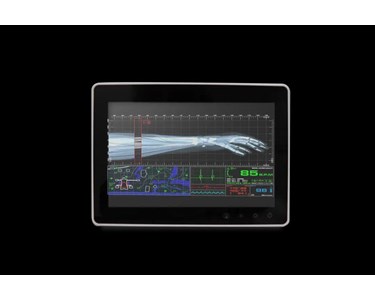

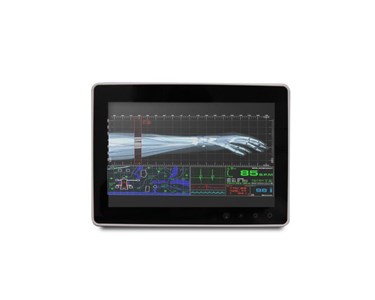

Onyx - 10.1" Fanless Slim Medical All In One PC | SMA-1033

Supplier: Micromax

10.1" Fanless Slim Medical All In One PC | SMA-1033

Discover the Onyx 10.1" Fanless Slim Medical All In One PC | SMA-1033 Designed for healthcare, it offers silent operation, easy cleaning, and reliable performance, enhancing efficiency in any medical environment.

Features

Intel® Celeron® N6210 / Atom™ x6211E / Atom™ x6425E processor
10.1" 1280 x 800 LCD
Supports DDR4 SODIMM up to 32GB (optional In-Band ECC support)
Capacitive multi-touch screen
Proprietary PCI Express [x1] interface
Easy cleaning flat screen
4 programmable smart function keys
High speed USB 3.2 Gen 1x1 ports
2.0M / 5.0M pixel camera with mic (optional)
HDMI 2.0b port for second display
RFID reader (optional)
+12V DC input

Specifications

Main Specifications
Processor	Intel® Atom™ x6425E 3.0GHz quad core processor Intel® Atom™ x6211E 3.0GHz dual core processor Intel® Celeron® N6210 2.6GHz dual core processor
System Memory	Supports DDR4 SODIMM up to 32GB (optional In-Band ECC support)
Expansion Interface	M.2 2230 (E-key) x 1, proprietary PCIe [x1] x 1
Storage Disk Drive	M.2 2242 (B-key) SATA SSD x 1
Security	TPM 2.0, RFID reader (optional)
Wireless Communication	802.11 a/b/g/n/ac/ax + Bluetooth 5.3 (optional)
Speaker	2W x 2
Function Key	LCD brightness up/down, touch screen on/off
Power Requirement	DC 12V
OS Support	Windows® 10, Windows® 11, Linux
Display
Size	10.1" TFT LCD
Type	AHVA
Max. Resolution	1280 x 800 (WXGA)
Luminance (cd/m²) (typ.)	400 nits
Viewing Angle	178° (H) / 178° (V)
Contrast Ratio	800:1
Back Light Life Time	>30,000 hours
Touch Screen	Capacitive multi-touch

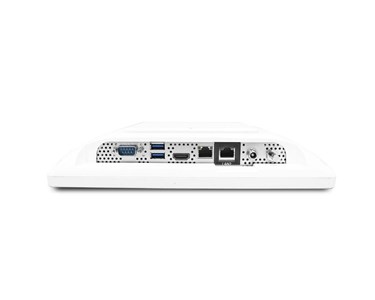

I/O
USB	USB 3.2 Gen 1x1 x 4
Serial Port	RS-232 x 1
Ethernet	Gigabit LAN x 2 (isolated x 1 + non-isolated x 1)
Video Out	HDMI 2.0b x 1
Mechanical and Environmental
Power Consumption	Full loading: 28.5 Watts
Operating Temperature	0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature	-20°C ~ 60°C (-4°F ~ 140°F)

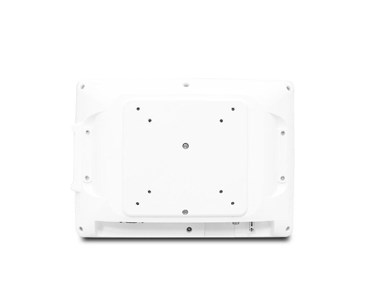

Mounting	VESA 75 / 100 mm
Degree of Protection	Front IP65, rear IPX1
Dimension	262 x 191 x 45 mm
Package Size	400 x 323 x 175 mm
Gross Weight	3.7 kg (8.2 lb)
Net Weight	1.2 kg (2.6 lb)
Certifications	CE: EN 60601-1-2:2015 + A1:2021 (V4.1), EN 60601-1:2007 + A1:2013 + A2:2021 (V3.2) EN 55032:2015/A1:2020 EN 55035:2017/A11:2020 (ITE) IEC 62368-1:2020+A11:2020 (ITE) FCC: Part 15B / Part 18 UL: ANSI AAMI ES60601-1:2005/A1:2012/A2:2021 (V3.2) cUL: CAN/CSA-C22.2 No. 60601-1:14 (IEC 60601-1: 2005+A1:2012+A2:2020, MOD) (V3.2) TELEC: Japan TELEC

Ordering Information

SMA-1033-P1-A1-0010 - Slim medical AIO, 10.1" LCD, capacitive touch, Celeron N6210, DC 12V

SMA-1033-P2-A1-0010 - Slim medical AIO, 10.1" LCD, capacitive touch, Atom x6211E, DC 12V

SMA-1033-P3-A1-0010 - Slim medical AIO, 10.1" LCD, capacitive touch, Atom x6425E, DC 12V

Optional Accessories

OPM-C20W-A9 - WLAN kit, IEEE 802.11 a/b/g/n/ac/ax + Bluetooth 5.3

OPM-T010-A2 - Smart card reader kit

OPM-V08C-A1 - 2M pixel camera with mic kit

OPM-V08C-A2 - 5M pixel camera with mic kit

To contact Micromax about Onyx 10.1" Fanless Slim Medical All In One PC | SMA-1033 use Get a quote.

Features

Intel® Celeron® N6210 / Atom™ x6211E / Atom™ x6425E processor
10.1" 1280 x 800 LCD
Supports DDR4 SODIMM up to 32GB (optional In-Band ECC support)
Capacitive multi-touch screen
Proprietary PCI Express [x1] interface
Easy cleaning flat screen
4 programmable smart function keys
High speed USB 3.2 Gen 1x1 ports
2.0M / 5.0M pixel camera with mic (optional)
HDMI 2.0b port for second display
RFID reader (optional)
+12V DC input

Specifications

Main Specifications
Processor	Intel® Atom™ x6425E 3.0GHz quad core processor Intel® Atom™ x6211E 3.0GHz dual core processor Intel® Celeron® N6210 2.6GHz dual core processor
System Memory	Supports DDR4 SODIMM up to 32GB (optional In-Band ECC support)
Expansion Interface	M.2 2230 (E-key) x 1, proprietary PCIe [x1] x 1
Storage Disk Drive	M.2 2242 (B-key) SATA SSD x 1
Security	TPM 2.0, RFID reader (optional)
Wireless Communication	802.11 a/b/g/n/ac/ax + Bluetooth 5.3 (optional)
Speaker	2W x 2
Function Key	LCD brightness up/down, touch screen on/off
Power Requirement	DC 12V
OS Support	Windows® 10, Windows® 11, Linux
Display
Size	10.1" TFT LCD
Type	AHVA
Max. Resolution	1280 x 800 (WXGA)
Luminance (cd/m²) (typ.)	400 nits
Viewing Angle	178° (H) / 178° (V)
Contrast Ratio	800:1
Back Light Life Time	>30,000 hours
Touch Screen	Capacitive multi-touch
I/O
USB	USB 3.2 Gen 1x1 x 4
Serial Port	RS-232 x 1
Ethernet	Gigabit LAN x 2 (isolated x 1 + non-isolated x 1)
Video Out	HDMI 2.0b x 1
Mechanical and Environmental
Power Consumption	Full loading: 28.5 Watts
Operating Temperature	0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature	-20°C ~ 60°C (-4°F ~ 140°F)
Mounting	VESA 75 / 100 mm
Degree of Protection	Front IP65, rear IPX1
Dimension	262 x 191 x 45 mm
Package Size	400 x 323 x 175 mm
Gross Weight	3.7 kg (8.2 lb)
Net Weight	1.2 kg (2.6 lb)
Certifications	CE: EN 60601-1-2:2015 + A1:2021 (V4.1), EN 60601-1:2007 + A1:2013 + A2:2021 (V3.2) EN 55032:2015/A1:2020 EN 55035:2017/A11:2020 (ITE) IEC 62368-1:2020+A11:2020 (ITE) FCC: Part 15B / Part 18 UL: ANSI AAMI ES60601-1:2005/A1:2012/A2:2021 (V3.2) cUL: CAN/CSA-C22.2 No. 60601-1:14 (IEC 60601-1: 2005+A1:2012+A2:2020, MOD) (V3.2) TELEC: Japan TELEC

Ordering Information

SMA-1033-P1-A1-0010 - Slim medical AIO, 10.1" LCD, capacitive touch, Celeron N6210, DC 12V

SMA-1033-P2-A1-0010 - Slim medical AIO, 10.1" LCD, capacitive touch, Atom x6211E, DC 12V

SMA-1033-P3-A1-0010 - Slim medical AIO, 10.1" LCD, capacitive touch, Atom x6425E, DC 12V

Optional Accessories

OPM-C20W-A9 - WLAN kit, IEEE 802.11 a/b/g/n/ac/ax + Bluetooth 5.3

OPM-T010-A2 - Smart card reader kit

OPM-V08C-A1 - 2M pixel camera with mic kit

OPM-V08C-A2 - 5M pixel camera with mic kit

Read less...

To contact Micromax about Onyx 10.1" Fanless Slim Medical All In One PC | SMA-1033 use Get a quote.

Datasheet(0.41MB)
