Onyx 22" Medical AI All-In-One PC With ...

Onyx - 22" Medical AI All-In-One PC With 14th Gen Core I | ACCEL-A2203

Supplier: Micromax

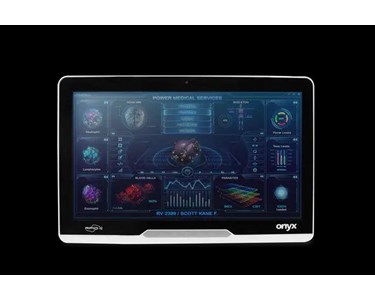

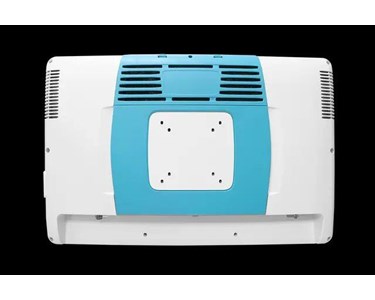

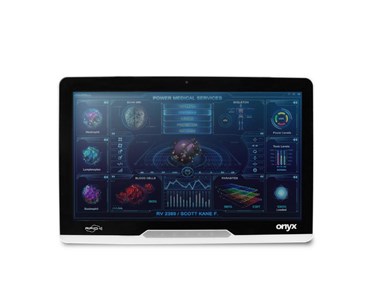

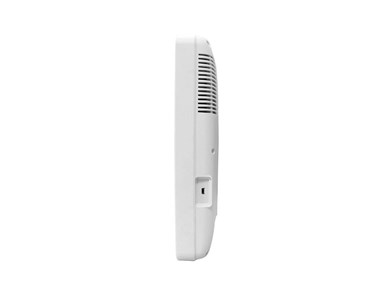

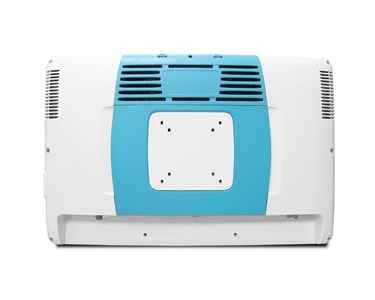

22" Medical AI All-In-One PC With 14th Gen Core I | ACCEL-A2203

Experience seamless healthcare solutions with our 22" Medical AI All-In-One PC. Powered by a 14th Gen Core I CPU and MXM graphics, 8MP Camera with Mic, Imprivata RFI. Upgrade your practice today!

Receive 1-3 days from order

Features of this product

NVIDIA MXM modules RTX 2000 Ada supported for edge AI applications
Intel® 14th generation Core™ i9/ i7/ i5 Processor
Support Dual Channel DDR5 5600Mhz SODIMM up to 96GB
22" Full HD High Contrast LCD w/ Capacitive Multi-Touch Screen
2.5 Gigabit LAN x 1, Gigabit LAN x 1
High Speed USB 3.2 Gen2 Ports
8MP Camera with Mic (optional)
Imprivata RFID Reader (optional)

Specifications of this product

Main Specifications
Processor	Intel® 14th Gen Core i9-14900 / i7-14700 / i5-14500 (TDP 65W)
System Memory	Support Dual Channel DDR5 5600MHz SODIMM up to 96GB
Expansion	M.2 2280 M-key (PCIe [x4]) slot x 1*
MXM Graphics	NVIDIA RTX 2000 Ada
OS Support	Windows® 10, Windows® 11, Linux®
Storage Disk Driver	M.2 2242 M Key NVMe x 1
Security	Trusted Platform Module 2.0, Imprivata RFID Reader (optional)
Wireless Communication	802.11 ax (optional), Bluetooth 5.3 (optional)*
Speaker	2W x 2
Function Key	Power on/off, LCD up/down, Touch enable/disable, Reading Light enable/disable
Power Requirement	Medical Adapter 300W 12V
Display
Size	22" LCD
Resolution	1920 x 1080
Luminance	250 nits
View Angle	178° (H) / 178° (V)
Contrast Ratio	1000:1
Back Light Life Time	50,000 Hours
Touch Screen	Capacitive Multi-Touch
I/O
USB	USB 3.2 Gen2 x 4, USB 3.2 Type C x 1 (5V, 3A) as optional side I/O
Ethernet	2.5 Gigabit LAN x 1, Gigabit LAN x 1
Video Out	HDMI 2.0b x 2, Display Port 1.4a x 1
Audio	Mic-in, Line-out
Mechanical and Environmental
Operating Temperature	0°C ~ 35°C (32°F ~ 95°F)
Storage Temperature	-20°C ~ 60°C (-4°F ~ 140°F)
Mounting	VESA 75 / 100 mm
Degree of Protection	IP65 in the front; IPX1 in the back
Dimension	542 x 355 x 69 mm
Package Size	755 x 195 x 528 mm
Gross Weight	11.5 kg
Net Weight	8.5 kg
Certifications	CE: EN 60601-1-2:2015 (V4.1) FCC: Part 18 Class B UL: ANSI/AAMI ES60601-1:2012 (V3.2) cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.2)

?*Remark: The M.2 capture card and WiFi module cannot be used at the same time. Only one can be chosen in a single configuration.?

Ordering Information

ACCEL-A2203-P1-A1-0010 - OR Station, i9-14900, 22" FHD, Fan, DC 12V Adapter, PCT
ACCEL-A2203-P2-A1-0010 - OR Station, i7-14700, 22" FHD, Fan, DC 12V Adapter, PCT
ACCEL-A2203-P3-A1-0010 - OR Station, i5-14500, 22" FHD, Fan, DC 12V Adapter, PCT

Optional Accessories

OPM-V203V-A1 - RTX 2000 Ada MXM GPU kit for ACCEL-A2203
9686666696 - Capture Card, M.2 2280 Type M, YUAN High SC710N1 M2 HDMI 2.0 (with HDMI 2.0 cable set)

Specifications of this product

Main Specifications
Processor	Intel® 14th Gen Core i9-14900 / i7-14700 / i5-14500 (TDP 65W)
System Memory	Support Dual Channel DDR5 5600MHz SODIMM up to 96GB
Expansion	M.2 2280 M-key (PCIe [x4]) slot x 1*
MXM Graphics	NVIDIA RTX 2000 Ada
OS Support	Windows® 10, Windows® 11, Linux®
Storage Disk Driver	M.2 2242 M Key NVMe x 1
Security	Trusted Platform Module 2.0, Imprivata RFID Reader (optional)
Wireless Communication	802.11 ax (optional), Bluetooth 5.3 (optional)*
Speaker	2W x 2
Function Key	Power on/off, LCD up/down, Touch enable/disable, Reading Light enable/disable
Power Requirement	Medical Adapter 300W 12V
Display
Size	22" LCD
Resolution	1920 x 1080
Luminance	250 nits
View Angle	178° (H) / 178° (V)
Contrast Ratio	1000:1
Back Light Life Time	50,000 Hours
Touch Screen	Capacitive Multi-Touch
I/O
USB	USB 3.2 Gen2 x 4, USB 3.2 Type C x 1 (5V, 3A) as optional side I/O
Ethernet	2.5 Gigabit LAN x 1, Gigabit LAN x 1
Video Out	HDMI 2.0b x 2, Display Port 1.4a x 1
Audio	Mic-in, Line-out
Mechanical and Environmental
Operating Temperature	0°C ~ 35°C (32°F ~ 95°F)
Storage Temperature	-20°C ~ 60°C (-4°F ~ 140°F)
Mounting	VESA 75 / 100 mm
Degree of Protection	IP65 in the front; IPX1 in the back
Dimension	542 x 355 x 69 mm
Package Size	755 x 195 x 528 mm
Gross Weight	11.5 kg
Net Weight	8.5 kg
Certifications	CE: EN 60601-1-2:2015 (V4.1) FCC: Part 18 Class B UL: ANSI/AAMI ES60601-1:2012 (V3.2) cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.2)

?*Remark: The M.2 capture card and WiFi module cannot be used at the same time. Only one can be chosen in a single configuration.?

Ordering Information

ACCEL-A2203-P1-A1-0010 - OR Station, i9-14900, 22" FHD, Fan, DC 12V Adapter, PCT
ACCEL-A2203-P2-A1-0010 - OR Station, i7-14700, 22" FHD, Fan, DC 12V Adapter, PCT
ACCEL-A2203-P3-A1-0010 - OR Station, i5-14500, 22" FHD, Fan, DC 12V Adapter, PCT

Optional Accessories

OPM-V203V-A1 - RTX 2000 Ada MXM GPU kit for ACCEL-A2203
9686666696 - Capture Card, M.2 2280 Type M, YUAN High SC710N1 M2 HDMI 2.0 (with HDMI 2.0 cable set)

Read less...

To contact Micromax about Onyx 22" Medical AI All-In-One PC With 14th Gen Core I | ACCEL-A2203 use Get a quote.

ACCEL-A2203 - Datasheet(1.71MB)
