Onyx High Performance Medical Grade PC ...

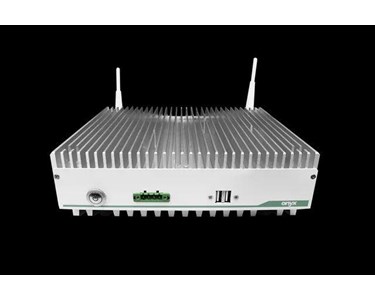

Onyx - High Performance Medical Grade PC With Intel 13th Gen Core iSeries

Supplier: Micromax

High Performance Medical Grade PC With Intel 13th Gen Core iSeries

Introducing the Onyx High Performance Medical Grade PC with Intel 13th Gen Core iSeries -engineered for reliability, speed, and precision in critical healthcare environments. Elevate your practice today!

Features

Intel® 13th Gen Core™ i3 / i5 / i7 / i9 processor
Supports DDR4 DIMM up to 64GB memory
Supports TPM 2.0 for security management
Supports USB 3.2 Gen 2 Type A x 4 and USB 2.0 x 2
Supports digital IO (optional)
Supports external power switch (optional)

Specifications

Main Specifications
Processor	Intel® 13th Gen Core™ i9 / i7 / i5 / i3
System Memory	Supports DDR4 3200 SO-DIMM x 2 up to 64GB
Storage	M.2 2242 up to 2TB
OS Support	Windows® 11, Linux (optional)
Storage Disk Drive	2.5" SATA SSD x 1
Security	TPM 2.0
Speaker (optional)	3W speaker x 2 (optional)
Wireless Communication	WiFi 6E + Bluetooth 5.3 (optional)
I/O
USB	(Rear) USB 3.2 Gen 2 x 4, USB 2.0 x 2 (Rear) USB 3.0 x 2 (optional) (Front) USB 2.0 x 2 (optional)
Serial Port	RS-232 x 2
Display Output	DP 1.4 x 2, HDMI 2.0 x 1
Ethernet	Gigabit LAN x 2
Video	HDMI 2.0b x 1, DP 1.4a x 2
Audio	Mic-in x 1, line-out x 1
Functional Ports	Grounding pin x 1 Digital IO x 1 (optional) External power switch (optional)
DC-in	12V DC-in x 1
Mechanical and Environmental
Operating Temperature	0°C ~ 35°C (32°F ~ 95°F)
Storage Temperature	-20°C ~ 60°C (-4°F ~ 140°F)
Dimension	251 x 88 x 231 mm
Net Weight	4.5 kg
Package Size	365 x 355 x 300 mm
Gross Weight	5.7 kg
Certifications	CE: EN 60601-1-2:2015 + A1:2021 (V4.1), EN 60601-1:2007 + A1:2013 + A2:2021 (V3.2) EN 55032:2015/A1:2020 EN 55035:2017/A11:2020 (ITE) IEC 62368-1:2020+A11:2020 (ITE) FCC: Part 15B / Part 18 UL: ANSI AAMI ES60601-1:2005/A1:2012/A2:2021 (V3.2) cUL: CAN/CSA-C22.2 No. 60601-1:14 (IEC 60601-1: 2005+A1:2012+A2:2020, MOD) (V3.2)

Ordering Information

MEDPC-9210-N35-A1-0000 - Box PC, i5-13500TE, fanless, adapter, 2 x COM, 2 x DP, HDMI, 2 x LAN, line-out, mic, 4 x USB

Optional Accessories

DDR4-08G-004 - DDR4 3200 8GB RAM

DDR4-16G-004 - DDR4 3200 16GB RAM

OPM-C20W-A11 - WLAN dual band module kit, Intel AX210, WiFi 6E + BT 5.3

OPM-Y01C-A1 - (Rear) USB 3.0 x 2

OPM-Y01C-A2 - (Front) USB 2.0 x 2

OPM-U02T-A1 - 3W speaker x 2

OPM-P07T-A1 - External power switch

OPM-Y01-A1 - Digital IO

To contact Micromax about Onyx High Performance Medical Grade PC With Intel 13th Gen Core iSeries use Get a quote.

Features

Intel® 13th Gen Core™ i3 / i5 / i7 / i9 processor
Supports DDR4 DIMM up to 64GB memory
Supports TPM 2.0 for security management
Supports USB 3.2 Gen 2 Type A x 4 and USB 2.0 x 2
Supports digital IO (optional)
Supports external power switch (optional)

Specifications

Main Specifications
Processor	Intel® 13th Gen Core™ i9 / i7 / i5 / i3
System Memory	Supports DDR4 3200 SO-DIMM x 2 up to 64GB
Storage	M.2 2242 up to 2TB
OS Support	Windows® 11, Linux (optional)
Storage Disk Drive	2.5" SATA SSD x 1
Security	TPM 2.0
Speaker (optional)	3W speaker x 2 (optional)
Wireless Communication	WiFi 6E + Bluetooth 5.3 (optional)
I/O
USB	(Rear) USB 3.2 Gen 2 x 4, USB 2.0 x 2 (Rear) USB 3.0 x 2 (optional) (Front) USB 2.0 x 2 (optional)
Serial Port	RS-232 x 2
Display Output	DP 1.4 x 2, HDMI 2.0 x 1
Ethernet	Gigabit LAN x 2
Video	HDMI 2.0b x 1, DP 1.4a x 2
Audio	Mic-in x 1, line-out x 1
Functional Ports	Grounding pin x 1 Digital IO x 1 (optional) External power switch (optional)
DC-in	12V DC-in x 1
Mechanical and Environmental
Operating Temperature	0°C ~ 35°C (32°F ~ 95°F)
Storage Temperature	-20°C ~ 60°C (-4°F ~ 140°F)
Dimension	251 x 88 x 231 mm
Net Weight	4.5 kg
Package Size	365 x 355 x 300 mm
Gross Weight	5.7 kg
Certifications	CE: EN 60601-1-2:2015 + A1:2021 (V4.1), EN 60601-1:2007 + A1:2013 + A2:2021 (V3.2) EN 55032:2015/A1:2020 EN 55035:2017/A11:2020 (ITE) IEC 62368-1:2020+A11:2020 (ITE) FCC: Part 15B / Part 18 UL: ANSI AAMI ES60601-1:2005/A1:2012/A2:2021 (V3.2) cUL: CAN/CSA-C22.2 No. 60601-1:14 (IEC 60601-1: 2005+A1:2012+A2:2020, MOD) (V3.2)

Ordering Information

MEDPC-9210-N35-A1-0000 - Box PC, i5-13500TE, fanless, adapter, 2 x COM, 2 x DP, HDMI, 2 x LAN, line-out, mic, 4 x USB

Optional Accessories

DDR4-08G-004 - DDR4 3200 8GB RAM

DDR4-16G-004 - DDR4 3200 16GB RAM

OPM-C20W-A11 - WLAN dual band module kit, Intel AX210, WiFi 6E + BT 5.3

OPM-Y01C-A1 - (Rear) USB 3.0 x 2

OPM-Y01C-A2 - (Front) USB 2.0 x 2

OPM-U02T-A1 - 3W speaker x 2

OPM-P07T-A1 - External power switch

OPM-Y01-A1 - Digital IO

Read less...

To contact Micromax about Onyx High Performance Medical Grade PC With Intel 13th Gen Core iSeries use Get a quote.

Datasheet(0.92MB)
