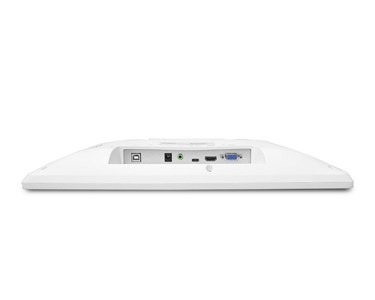

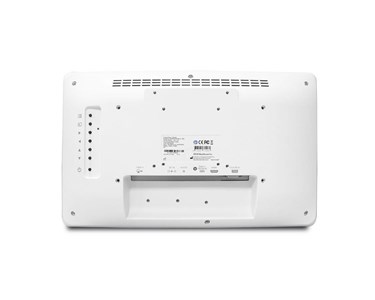

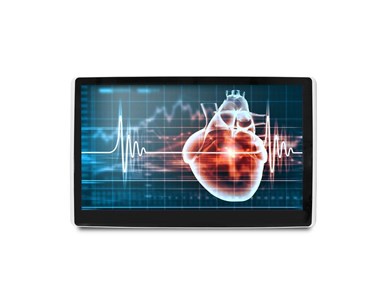

Onyx - 15.6" Slim Medical Display | MEDDP-615

Supplier: Micromax

15.6" Slim Medical Display | MEDDP-615

Introducing the Onyx 15.6" Slim Medical Display | MEDDP-615: Elevate patient care with crystal-clear visuals, ultra-slim design, and reliable performance, ensuring precision in every diagnosis. Perfect for any clinical setting!

Receive 1-3 days from order

Features

15.6" 1920 x 1080 resolution display
Projected capacitive multi-touch
VGA input, HDMI input and USB Type-C input
Stylish and elegant design

Specifications

Display
Size	15.6"
Resolution	FHD 1920 x 1080
Max. Colors	262K
Brightness (typ.)	400 nits
Viewing Angle (CR=10) (typ.)	170° (H) / 170° (V)
Contrast Ratio (typ.)	800:1
Touch Screen	Projective capacitive touch screen
Power Requirement	External power adapter, AC in 100~240V, DC 12V / 3.33A
System
OS Support	Windows® 10, Windows® 11
I/O
Input Signal	HDMI 1.4 x 1, VGA x 1, USB Type C x 1
USB Port	USB 2.0 Type B x 1 for touch screen
Audio	Line-in x 1
Speaker	Built-in 1W speaker x 2
Mechanical and Environmental
Operating Temperature	0°C ~ 50°C (32°F ~ 122°F)
Storage Temperature	-10°C ~ 60°C (14°F ~ 140°F)
Storage Humidity	10%~90% @ 35°C, non-condensing
VESA	75 x 75 mm, 100 x 100 mm
IP Rating	Front IP65, rear IP20
Dimension (W/H/D)	387.8 x 232.9 x 38.4 mm
Packing Size (W/H/D)	425.3 x 269.2 x 45.6 mm
Gross Weight	5.20 kg (11.46 lb)
Net Weight	1.50 kg (3.31 lb)
Certifications	CE: EN 60601-1-2:2015 + A1:2021 (V4.1), EN 60601-1:2007/A1:2013/A2:2021 (V3.2) FCC: Part 18 Subpart C

Ordering Information

MEDDP-615HPN-A1-1020 — 15.6" LCD monitor, 400 nits, P-Cap touch, VGA x 1, HDMI x 1, DC 12V adapter

To contact Micromax about Onyx 15.6" Slim Medical Display | MEDDP-615 use Get a quote.

Features

15.6" 1920 x 1080 resolution display
Projected capacitive multi-touch
VGA input, HDMI input and USB Type-C input
Stylish and elegant design

Specifications

Display
Size	15.6"
Resolution	FHD 1920 x 1080
Max. Colors	262K
Brightness (typ.)	400 nits
Viewing Angle (CR=10) (typ.)	170° (H) / 170° (V)
Contrast Ratio (typ.)	800:1
Touch Screen	Projective capacitive touch screen
Power Requirement	External power adapter, AC in 100~240V, DC 12V / 3.33A
System
OS Support	Windows® 10, Windows® 11
I/O
Input Signal	HDMI 1.4 x 1, VGA x 1, USB Type C x 1
USB Port	USB 2.0 Type B x 1 for touch screen
Audio	Line-in x 1
Speaker	Built-in 1W speaker x 2
Mechanical and Environmental
Operating Temperature	0°C ~ 50°C (32°F ~ 122°F)
Storage Temperature	-10°C ~ 60°C (14°F ~ 140°F)
Storage Humidity	10%~90% @ 35°C, non-condensing
VESA	75 x 75 mm, 100 x 100 mm
IP Rating	Front IP65, rear IP20
Dimension (W/H/D)	387.8 x 232.9 x 38.4 mm
Packing Size (W/H/D)	425.3 x 269.2 x 45.6 mm
Gross Weight	5.20 kg (11.46 lb)
Net Weight	1.50 kg (3.31 lb)
Certifications	CE: EN 60601-1-2:2015 + A1:2021 (V4.1), EN 60601-1:2007/A1:2013/A2:2021 (V3.2) FCC: Part 18 Subpart C

Ordering Information

MEDDP-615HPN-A1-1020 — 15.6" LCD monitor, 400 nits, P-Cap touch, VGA x 1, HDMI x 1, DC 12V adapter

Read less...

To contact Micromax about Onyx 15.6" Slim Medical Display | MEDDP-615 use Get a quote.

Datasheet(0.43MB)
