Onyx 21.5" Slim Medical Display | MEDDP-822P ...

Onyx - 21.5" Slim Medical Display | MEDDP-822P

Supplier: Micromax

21.5" Slim Medical Display | MEDDP-822P

Introducing the Onyx 25" Slim Medical Display | MEDDP-822P: Enhance patient care with crystal-clear visuals, space-saving design, and advanced technology for accurate diagnostics in any clinical setting.

Features

21.5" LCD panel with LED backlight
High brightness 500 nits
Compact and terse design
DVI x 1, HDMI x 1, VGA x 1
True flat screen with capacitive touch
Two built-in speakers
Physical OSD key button
DICOM

Specifications

Display
Size	21.5"
Resolution	FHD 1920 x 1080
Max. Colors	16.7M
Brightness (typ.)	500 nits
Viewing Angle (CR=10) (typ.)	178° (H) / 178° (V)
Contrast Ratio (typ.)	1000:1
Touch Screen	Projected capacitive multi-touch screen
Power Requirement	External power adapter, AC in 100~240V, DC 12V / 3A
System
OS Support	Windows® 10, Windows® 11
I/O
Input Signal	DVI-D x 1, HDMI 2.0 x 1, VGA x 1
USB Port	USB 2.0 Type B x 1 for touch screen
Audio	Line-in x 1
Speaker	Built-in 2.5W speaker x 2
Mechanical and Environmental
Operating Temperature	0°C ~ 35°C (32°F ~ 95°F)
Storage Temperature	-20°C ~ 60°C (-4°F ~ 140°F)
Storage Humidity	10% to 90% RH, non-condensing

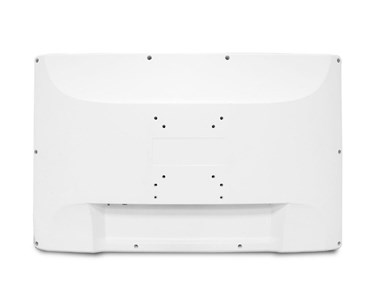

VESA	75 x 75 mm, 100 x 100 mm
Dimension (W/H/D)	526 x 324 x 54 mm
Packing Size (W/H/D)	645 x 378 x 210 mm
Gross Weight	6.8 kg (14.99 lb)
Net Weight	5.0 kg (11.02 lb)
Certifications	CE: EN 60601-1-2:2015 + A1:2021 (V4.1), EN 60601-1:2007/A1:2013/A2:2021 (V3.2) FCC: Part 15 Subpart B / Part 18 Subpart C UL: ANSI/AAMI ES60601-1:2005 & A1:2012 & A2:2021 (V3.1) cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)

Ordering Information

MEDDP-822P-G1-A1-0010 - Monitor, 22", 500 nits, DC 12V, glass, medical adapter

MEDDP-822P-P1-A1-0010 - Monitor, 22", 500 nits, DC 12V, P-Cap, medical adapter

Optional Accessories

125530036A - Medical power adaptor, AC/DC 100~240V, 12V, 3A, 36W

1700252001 - DVI-D cable, (24+1)P DVI (M) to (24+1)P DVI (M), 200cm

1704191800 - HDMI cable, HDMI 19P (F) to HDMI 19P (M), 180cm

1704151800 - VGA cable, D-Sub 15P (M) to D-Sub 15P (M), 180cm

1700031802 - Audio cable, 3.5mm 3-pole stereo plug to 3.5mm 3-pole stereo plug, 180cm

1700202000 - DP to HDMI cable, 20P DP (M) to 20P HDMI (M), 200cm

To contact Micromax about Onyx 21.5" Slim Medical Display | MEDDP-822P use Get a quote.

Features

21.5" LCD panel with LED backlight
High brightness 500 nits
Compact and terse design
DVI x 1, HDMI x 1, VGA x 1
True flat screen with capacitive touch
Two built-in speakers
Physical OSD key button
DICOM

Specifications

Display
Size	21.5"
Resolution	FHD 1920 x 1080
Max. Colors	16.7M
Brightness (typ.)	500 nits
Viewing Angle (CR=10) (typ.)	178° (H) / 178° (V)
Contrast Ratio (typ.)	1000:1
Touch Screen	Projected capacitive multi-touch screen
Power Requirement	External power adapter, AC in 100~240V, DC 12V / 3A
System
OS Support	Windows® 10, Windows® 11
I/O
Input Signal	DVI-D x 1, HDMI 2.0 x 1, VGA x 1
USB Port	USB 2.0 Type B x 1 for touch screen
Audio	Line-in x 1
Speaker	Built-in 2.5W speaker x 2
Mechanical and Environmental
Operating Temperature	0°C ~ 35°C (32°F ~ 95°F)
Storage Temperature	-20°C ~ 60°C (-4°F ~ 140°F)
Storage Humidity	10% to 90% RH, non-condensing
VESA	75 x 75 mm, 100 x 100 mm
Dimension (W/H/D)	526 x 324 x 54 mm
Packing Size (W/H/D)	645 x 378 x 210 mm
Gross Weight	6.8 kg (14.99 lb)
Net Weight	5.0 kg (11.02 lb)
Certifications	CE: EN 60601-1-2:2015 + A1:2021 (V4.1), EN 60601-1:2007/A1:2013/A2:2021 (V3.2) FCC: Part 15 Subpart B / Part 18 Subpart C UL: ANSI/AAMI ES60601-1:2005 & A1:2012 & A2:2021 (V3.1) cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)

Ordering Information

MEDDP-822P-G1-A1-0010 - Monitor, 22", 500 nits, DC 12V, glass, medical adapter

MEDDP-822P-P1-A1-0010 - Monitor, 22", 500 nits, DC 12V, P-Cap, medical adapter

Optional Accessories

125530036A - Medical power adaptor, AC/DC 100~240V, 12V, 3A, 36W

1700252001 - DVI-D cable, (24+1)P DVI (M) to (24+1)P DVI (M), 200cm

1704191800 - HDMI cable, HDMI 19P (F) to HDMI 19P (M), 180cm

1704151800 - VGA cable, D-Sub 15P (M) to D-Sub 15P (M), 180cm

1700031802 - Audio cable, 3.5mm 3-pole stereo plug to 3.5mm 3-pole stereo plug, 180cm

1700202000 - DP to HDMI cable, 20P DP (M) to 20P HDMI (M), 200cm

Read less...

To contact Micromax about Onyx 21.5" Slim Medical Display | MEDDP-822P use Get a quote.

Datsheet(0.40MB)
