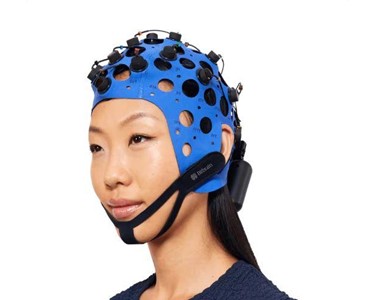

EEG System | Versatile EEG (8, 16, 32, 64ch)

Supplier: Aerobe

The Versatile EEG is a flexible, water-based, gel-free EEG system designed for laboratory-grade brain monitoring, offering customisable channel options for diverse clinical and research environments.

Gel-free, water-based EEG system with flexible electrode placement and advanced ambulatory capabilities.

Key Features

Gel-free, water-based setup using tap water-moistened sponge sensors, eliminating the need for messy gels and post-session hair washing.
Customisable electrode placement within standard 10–20 or 10–10 systems to suit specific research needs.
Active shielding technology enhances Signal-to-Noise Ratio (SNR) by neutralising movement artefacts and environmental electromagnetic interference.
Real-time impedance monitoring with intuitive visual cues for optimal electrode contact.
Maximum ambulatory freedom with an ultra-light amplifier, extended battery life, and onboard removable SD card storage, allowing natural subject movement in real-world settings.
Seamless multimodal synchronisation with other biosensors (EMG, ECG, GSR) and external devices, including virtual reality headsets and eye-trackers.

Technical Specifications

Autonomy	> 8 hours continuous recording
Bandwidth	DC – 40 Hz (8ch) / DC – 70 Hz (16/32/64ch) with 3rd-order LPF
Data Backup	Removable MicroSD card (up to 8GB, Class = 10), supports CSV/EDF format
Sensor Type	Water-based semi-dry sensors with active shielding and optimised DRL
Power Supply	Rechargeable LiPo battery (less than 3 hours charging time)
Product Type	Portable water-based (semi-dry) EEG cap system
Certifications	CE (Directive 2014/53), EN 60950, EN 55032, EN 55024
Amplifier Weight	82g (8ch), 125g (16ch), 165g (32ch)
Additional Inputs	1x digital input (1 bit), 1x optical trigger (photodiode), 2x bipolar ExG (on 32ch model)
Integrated Sensors	9-axis IMU (accelerometer, gyroscope, magnetometer)
Input Range & Noise	± 100 mV, < 1 µVRMS (0.5 – 30 Hz) @ 256Hz
CMRR / Input Impedance	> 100 dB @ 50Hz / > 50 GO
Channel Configurations	Available in 8, 16, 32, and 64 EEG channel models (+ REF and GND)
Software Compatibility	Bitbrain SennsLab / SennsLite, Bitbrain SDK (C/C++), LSL-compatible (BCI2000, OpenVibe, NeuroPype), MATLAB (EEGLAB, FieldTrip), and Python (MNE)
Sampling Rate / Resolution	256 SPS at 24 bits
Head Perimeter Compatibility	42 cm – 66 cm (Cap sizes: S, S/M, M, M/L, L, XL)

Bitbrain is a leading neurotechnology company, integrating neuroscience, artificial intelligence, and hardware to provide advanced EEG brain-sensing devices and practical software solutions for research and healthcare applications.

Scientific Support

Consultation, training, and long-term application support by PhD-led teams and domain experts.
Extensive global presence for on-site calibration, compliance, and lifecycle support.

To contact Aerobe about EEG System | Versatile EEG (8, 16, 32, 64ch) use Get a quote.

Key Features

Gel-free, water-based setup using tap water-moistened sponge sensors, eliminating the need for messy gels and post-session hair washing.
Customisable electrode placement within standard 10–20 or 10–10 systems to suit specific research needs.
Active shielding technology enhances Signal-to-Noise Ratio (SNR) by neutralising movement artefacts and environmental electromagnetic interference.
Real-time impedance monitoring with intuitive visual cues for optimal electrode contact.
Maximum ambulatory freedom with an ultra-light amplifier, extended battery life, and onboard removable SD card storage, allowing natural subject movement in real-world settings.
Seamless multimodal synchronisation with other biosensors (EMG, ECG, GSR) and external devices, including virtual reality headsets and eye-trackers.

Technical Specifications

Autonomy	> 8 hours continuous recording
Bandwidth	DC – 40 Hz (8ch) / DC – 70 Hz (16/32/64ch) with 3rd-order LPF
Data Backup	Removable MicroSD card (up to 8GB, Class = 10), supports CSV/EDF format
Sensor Type	Water-based semi-dry sensors with active shielding and optimised DRL
Power Supply	Rechargeable LiPo battery (less than 3 hours charging time)
Product Type	Portable water-based (semi-dry) EEG cap system
Certifications	CE (Directive 2014/53), EN 60950, EN 55032, EN 55024
Amplifier Weight	82g (8ch), 125g (16ch), 165g (32ch)
Additional Inputs	1x digital input (1 bit), 1x optical trigger (photodiode), 2x bipolar ExG (on 32ch model)
Integrated Sensors	9-axis IMU (accelerometer, gyroscope, magnetometer)
Input Range & Noise	± 100 mV, < 1 µVRMS (0.5 – 30 Hz) @ 256Hz
CMRR / Input Impedance	> 100 dB @ 50Hz / > 50 GO
Channel Configurations	Available in 8, 16, 32, and 64 EEG channel models (+ REF and GND)
Software Compatibility	Bitbrain SennsLab / SennsLite, Bitbrain SDK (C/C++), LSL-compatible (BCI2000, OpenVibe, NeuroPype), MATLAB (EEGLAB, FieldTrip), and Python (MNE)
Sampling Rate / Resolution	256 SPS at 24 bits
Head Perimeter Compatibility	42 cm – 66 cm (Cap sizes: S, S/M, M, M/L, L, XL)

Scientific Support

Consultation, training, and long-term application support by PhD-led teams and domain experts.
Extensive global presence for on-site calibration, compliance, and lifecycle support.

Read less...

To contact Aerobe about EEG System | Versatile EEG (8, 16, 32, 64ch) use Get a quote.
