ITO - ES-5200 2-Channel Electrotherapy Unit

Supplier: Aerobe

ES-5200 2-Channel Electrotherapy Unit

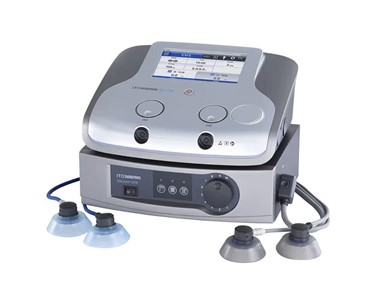

The ES-5200 is a highly versatile multi-channel electrotherapy unit engineered for professional physiotherapy clinics, offering advanced therapy modes and interactive features for optimal patient care.

Advanced multi-channel electrotherapy with 13 therapy modes and interactive body mapping for tailored treatments.

Key Features

Interactive Human Body Diagram: Therapists can visually select the treatment area, automatically loading one of 28 clinical programs tailored to specific pathologies.
13 Therapy Modes: Includes TENS, IF, EMS, Russian, MCR, HV, Galvanic, Faradic, Diadynamic (DF, MF, CP, CP-ISO, LP, RS), Traebert (Ultra Reiz), and Diagnostic (I/T curve, AQ) for comprehensive musculoskeletal care.
Sequential Mode: Automates transitions between two therapy types in a session, delivering a seamless patient experience.
Constant Current (CC) & Constant Voltage (CV): Enhanced safety with automatic current adjustment if skin resistance changes.
120 Memory Slots: Store and quickly retrieve up to 120 custom treatment parameters for high-volume use.
Multi-Language Support: System navigation is available in nine languages.
Vacuum Unit Ready: Compatible with the SU-520 vacuum unit, offering maintenance-free and hygienic electrode application.

System Components

SU-520BK: Advanced 2-channel vacuum unit with a blow-out system for improved hygiene and no water reservoir required.

Technical Specifications

Device Type	Multi-Channel Electrotherapy Unit
Number of Channels	2 Independent Channels
Timer	Maximum 60 minutes
Weight	2.3 kg
Display	Full-colour, 7-inch LCD Touch Screen
Dimensions	345 mm (W) x 270 mm (D) x 145 mm (H)
Power Supply	AC 100–240 V, 50/60 Hz
Safety Class	Class I, Type BF (IEC 60601-1)
Memory Capacity	120 User-defined protocol memories
Maximum Amplitude	100 mA (IF, EMS, Russian, TENS); 600 mA (High Voltage); 750 µA (MCR); 20 mA (Galvanic); 70 mA (Faradic, Diadynamic, Traebert, Diagnostic)
Power Consumption	100 VA
IF Carrier Frequencies	2 kHz, 4 kHz, 5 kHz, 8 kHz, 10 kHz
Pre-programmed Protocols	28 Clinical Protocols

ITO is a globally recognised leader in electrophysical agents, offering advanced combination therapy, ultrasound, and electroacupuncture devices developed with evidence-based approaches to optimise clinical rehabilitation and athletic conditioning.

To contact Aerobe about ITO ES-5200 2-Channel Electrotherapy Unit use Get a quote.

Key Features

Interactive Human Body Diagram: Therapists can visually select the treatment area, automatically loading one of 28 clinical programs tailored to specific pathologies.
13 Therapy Modes: Includes TENS, IF, EMS, Russian, MCR, HV, Galvanic, Faradic, Diadynamic (DF, MF, CP, CP-ISO, LP, RS), Traebert (Ultra Reiz), and Diagnostic (I/T curve, AQ) for comprehensive musculoskeletal care.
Sequential Mode: Automates transitions between two therapy types in a session, delivering a seamless patient experience.
Constant Current (CC) & Constant Voltage (CV): Enhanced safety with automatic current adjustment if skin resistance changes.
120 Memory Slots: Store and quickly retrieve up to 120 custom treatment parameters for high-volume use.
Multi-Language Support: System navigation is available in nine languages.
Vacuum Unit Ready: Compatible with the SU-520 vacuum unit, offering maintenance-free and hygienic electrode application.

System Components

SU-520BK: Advanced 2-channel vacuum unit with a blow-out system for improved hygiene and no water reservoir required.

Technical Specifications

Device Type	Multi-Channel Electrotherapy Unit
Number of Channels	2 Independent Channels
Timer	Maximum 60 minutes
Weight	2.3 kg
Display	Full-colour, 7-inch LCD Touch Screen
Dimensions	345 mm (W) x 270 mm (D) x 145 mm (H)
Power Supply	AC 100–240 V, 50/60 Hz
Safety Class	Class I, Type BF (IEC 60601-1)
Memory Capacity	120 User-defined protocol memories
Maximum Amplitude	100 mA (IF, EMS, Russian, TENS); 600 mA (High Voltage); 750 µA (MCR); 20 mA (Galvanic); 70 mA (Faradic, Diadynamic, Traebert, Diagnostic)
Power Consumption	100 VA
IF Carrier Frequencies	2 kHz, 4 kHz, 5 kHz, 8 kHz, 10 kHz
Pre-programmed Protocols	28 Clinical Protocols
