ITO ES-5400 4-Channel Electrotherapy Unit ...

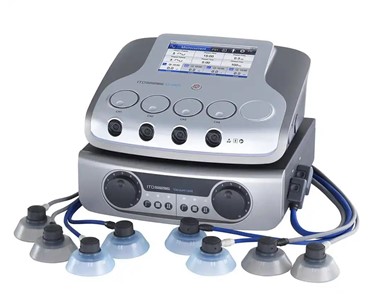

ITO - ES-5400 4-Channel Electrotherapy Unit

Supplier: Aerobe

ES-5400 4-Channel Electrotherapy Unit

The ES-5400 is a professional 4-channel electrotherapy unit designed for use in busy physiotherapy clinics, enabling simultaneous treatment of multiple patients or body areas.

Four independent channels maximise efficiency by treating multiple areas or patients at once.

The advanced 4-channel electrotherapy unit is built for high-volume professional physiotherapy clinics, allowing for versatile, targeted, and efficient treatments. Practitioners can leverage a suite of 13 current modes and intuitive user controls for both standard and complex therapy regimens.

System Components

SU-540 Vacuum Electrode Unit: A high-performance 4-channel vacuum electrode system, pairs exclusively with the multi-channel modalities, offering hygienic, maintenance-free operation with no water reservoir required.

Key Features

Four independent channels for simultaneous multi-site or multi-patient treatments.
Interactive Human Body Diagram for program selection and targeted therapy suggestions.
Thirteen current and therapy modes: Interferential, EMS, Russian, High Voltage, TENS, Microcurrent, Galvanic, Faradic, Diadynamic, Traebert, and Diagnostic modalities.
Sequential Mode for back-to-back therapeutic applications without manual reconfiguration.
Constant Current (CC) and Constant Voltage (CV) operation to optimise patient comfort and safety.
120 user memory slots for custom and repeatable treatment setups.
Multi-language user interface (supports 9 languages).
Ready for integration with the SU-540 Vacuum Unit via an innovative blow-out system.

Technical Specifications

Timer	Maximum 60 minutes
Weight	2.5 kg
Display	Full-colour, 7-inch LCD touch screen
Dimensions	345 (W) x 270 (D) x 145 (H) mm
Power Supply	AC 100–240 V, 50/60 Hz
Safety Class	Class I, Type BF (IEC 60601-1)
Memory Capacity	120 user-defined protocol memories
Maximum Amplitude	100 mA (IF, EMS, Russian, TENS); 600 mA (High Voltage); 750 µA (MCR); 20 mA (Galvanic); 70 mA (Faradic, Diadynamic, Traebert, Diagnostic)
Power Consumption	150 VA
Number of Channels	4 independent channels
IF Carrier Frequencies	2 kHz, 4 kHz, 5 kHz, 8 kHz, 10 kHz
Current Modes	13 types: IF-4, IF-2, EMS, Russian, High Voltage (HV), TENS, Microcurrent (MCR), Galvanic, Faradic, Diadynamic (DF, MF, CP, CP-ISO, LP, RS), Traebert (Ultra Reiz), Diagnostic (I/T curve, AQ)
Pre-programmed Protocols	28 clinical protocols

Additional Highlights

Enhanced hygiene through maintenance-free vacuum unit accessory.
Backed by PhD-led configuration, training, and lifetime technical support.
3,000+ global installations and available in 16+ countries.

To contact Aerobe about ITO ES-5400 4-Channel Electrotherapy Unit use Get a quote.

System Components

SU-540 Vacuum Electrode Unit: A high-performance 4-channel vacuum electrode system, pairs exclusively with the multi-channel modalities, offering hygienic, maintenance-free operation with no water reservoir required.

Key Features

Four independent channels for simultaneous multi-site or multi-patient treatments.
Interactive Human Body Diagram for program selection and targeted therapy suggestions.
Thirteen current and therapy modes: Interferential, EMS, Russian, High Voltage, TENS, Microcurrent, Galvanic, Faradic, Diadynamic, Traebert, and Diagnostic modalities.
Sequential Mode for back-to-back therapeutic applications without manual reconfiguration.
Constant Current (CC) and Constant Voltage (CV) operation to optimise patient comfort and safety.
120 user memory slots for custom and repeatable treatment setups.
Multi-language user interface (supports 9 languages).
Ready for integration with the SU-540 Vacuum Unit via an innovative blow-out system.

Technical Specifications

Timer	Maximum 60 minutes
Weight	2.5 kg
Display	Full-colour, 7-inch LCD touch screen
Dimensions	345 (W) x 270 (D) x 145 (H) mm
Power Supply	AC 100–240 V, 50/60 Hz
Safety Class	Class I, Type BF (IEC 60601-1)
Memory Capacity	120 user-defined protocol memories
Maximum Amplitude	100 mA (IF, EMS, Russian, TENS); 600 mA (High Voltage); 750 µA (MCR); 20 mA (Galvanic); 70 mA (Faradic, Diadynamic, Traebert, Diagnostic)
Power Consumption	150 VA
Number of Channels	4 independent channels
IF Carrier Frequencies	2 kHz, 4 kHz, 5 kHz, 8 kHz, 10 kHz
Current Modes	13 types: IF-4, IF-2, EMS, Russian, High Voltage (HV), TENS, Microcurrent (MCR), Galvanic, Faradic, Diadynamic (DF, MF, CP, CP-ISO, LP, RS), Traebert (Ultra Reiz), Diagnostic (I/T curve, AQ)
Pre-programmed Protocols	28 clinical protocols

Additional Highlights

Enhanced hygiene through maintenance-free vacuum unit accessory.
Backed by PhD-led configuration, training, and lifetime technical support.
3,000+ global installations and available in 16+ countries.

Read less...

To contact Aerobe about ITO ES-5400 4-Channel Electrotherapy Unit use Get a quote.
