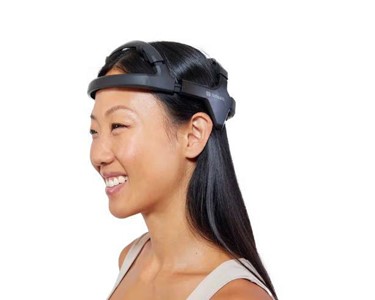

Ultrafast, gel-free setup with reliable, high-quality brain monitoring.

Key Features

Advanced gel-free dry electrodes for hassle-free setup and quick cleanup
2-minute rapid and easy configuration – suitable for both professionals and users
Active shielding technology minimises electromagnetic interference and movement artefacts
Optimised electrode layout for detailed cognitive and emotional neuromarker capture
Real-time impedance monitoring via intuitive software interface
Wireless Bluetooth data streaming and onboard SD card storage for high mobility

Technical Specifications

Battery Autonomy	More than 8 hours continuous
Bandwidth	DC – 40Hz (3rd order low-pass filter)
Data Backup	Removable MicroSD card (up to 8 GB, class = 10) in CSV format
Sensor Type	Dry-EEG with active shielding and optimised DRL
Power Supply	Rechargeable LiPo battery (<3 hours charging)
Inputs	1 x digital (1 bit), 1 x optical trigger
Transmission	Bluetooth 2.1 + EDR (10m direct line)
Integrated Sensors	9-axis IMU (accelerometer, gyroscope, magnetometer)
Number of Channels	12 x EEG (Fp1, Fp2, AF7, AF8, F3, F4, P3, P4, PO7, PO8, O1, O2), REF (A1), DRL (Fpz)
Dimensions & Weight	Headset: 185g; Amplifier: 122g
Input Range & Noise	±100 mV, <1 µVRMS (0.5 – 30Hz) @256Hz
CMRR / Input Impedance	>100 dB @50Hz / >50 GO
Software Compatibility	Bitbrain software suite (SDK for Python, MATLAB, etc.)
Sampling Rate / Resolution	256 SPS at 24 bits
Head Perimeter Compatibility	53 cm - 61 cm

Applications

Neuroergonomics research
Behavioural studies
Mobile and out-of-lab cognitive monitoring
Emotional state monitoring in real-world environments

Bitbrain is a global leader in neurotechnology, combining neuroscience, AI, and hardware innovations to develop high-tech EEG brain-sensing devices and user-friendly software for clinical research and healthcare.
