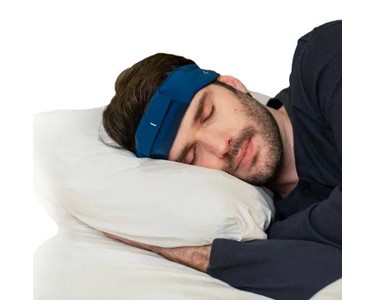

Name: EEG System | Ikon Sleep EEG
Price: 30000 AUD
Availability: InStock

Enables accurate, real-world sleep data collection with comfortable self-setup.

Key Features

Specially made for natural, at-home sleep studies capturing authentic sleep patterns beyond lab settings.
Easy self-managed setup with intuitive snap-on, pre-gelled frontal sensors and a comfortable, washable textile band.
Maintains optimal electrode contact with pre-gelled sensor stability for high-quality signals over 8+ hours.
Multi-modal physiological data collection: high-resolution EEG, integrated 9-axis IMU (accelerometer, gyroscope, magnetometer), and PPG for movement and position tracking.
Washable, reusable design with durable materials for convenience and long-term use.
Proven 90% clinical success rate based on 250+ participants, ensuring reliability in diverse populations.

Technical Specifications

Weight	~100 g
Recording Autonomy	More than 9 hours continuous recording and streaming
Bandwidth	DC – 40 Hz
Data Backup	Direct BLE transfer + simultaneous internal SD card backup
Sensor Type	Pre-gelled wet EEG, active shielding
Power Supply	Rechargeable LiPo battery (< 3h charging)
Data Transmission	Bluetooth Low Energy (BLE) 4.2 + EDR, up to 10 m direct
Integrated Sensors	9-axis IMU, PPG
Channels	2 active EEG (AF7, AF8), REF (A1), GND (A2)
Input Range / Noise	±100 mV, < 1 µVRMS (0.5 – 30 Hz) @256 Hz
CMRR / Input Impedance	>100 dB @50 Hz / >50 GO
Online Impedance Check	Real-time monitoring
Software Compatibility	Bitbrain SDK (C/C++), LSL-compatible, MATLAB (EEGLAB, FieldTrip), Python (MNE)
Sampling Rate / Resolution	256 SPS / 24-bit
Head Perimeter Compatibility	52 cm – 72 cm
Certifications	CE (Directive 2014/53), FCC (Part 15), designed for ISO 13485 (Medical CE and FDA clearance expected 2026)

Clinical Success
