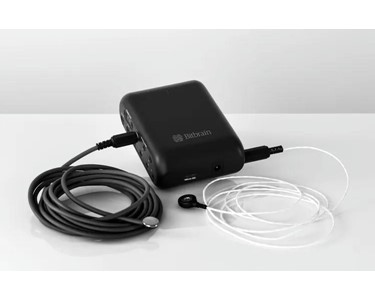

Name: EEG System | Versatile Bio (Mobile Biosignal Amplifier)
Price: 30000 AUD
Availability: InStock

Extreme, multi-sensory mobile monitoring with up to 35 variables, fully synchronised in real-time.

Key Features

Simultaneous monitoring of up to 35 physiological variables including EXG, GSR, RESP, TEMP, and EMG.
Ultra-lightweight design (172 g), easily wearable on waist or arm for unrestricted participant mobility.
Active artifact shielding with optimised DRL circuit to minimise electromagnetic and movement noise.
Dual operation modes: real-time Bluetooth streaming or untethered data logging to SD card.
Simplified sensor setup with intuitive sensor connections and software-guided quality checks.
Seamless synchronisation with Bitbrain’s Human Behaviour Research Lab and compatibility with EEG, eye-trackers, and VR headsets.

Technical Specifications

Weight	172 g
Autonomy	> 8 hours continuous operation
Bandwidth	DC – 100 Hz (3rd-order LPF)
Data Backup	Removable MicroSD card, CSV export
Power Supply	Rechargeable LiPo battery (charging time < 3 h)
Channels	21+ base, extensible to 35 physiological variables
Sensor Inputs	9x Bipolar ExG + GND, 6x auxiliary analogue, 2x IMU digital inputs (up to 8 IMUs), 1x digital input & output
Certifications	CE, CB, EN 60950, EN 55032, EN 55024
Data Transmission	Bluetooth 2.1 + EDR (10 m range)
Integrated Sensors	9-axis IMU (accelerometer, gyroscope, magnetometer)
Input Range & Noise	Bipolar ExG: ±420 mV, <4 µVRMS (0.5–30 Hz) @ 256 Hz; Analogue AUX: ±2.5 V, <10 µVRMS (0.5–30 Hz) @ 256 Hz
CMRR / Input Impedance	>100 dB @ 50 Hz, >50 GO
Software Compatibility	Includes Bitbrain SDK (C/C++), LSL-compatible (MATLAB, Python, BCI2000, OpenVibe, NeuroPype), supports EEGLAB, FieldTrip, MNE
Sampling Rate / Resolution	256 SPS @ 24 bits
