The F-Scan GO is a wireless, in-shoe gait analysis system enabling advanced biomechanics research and clinical evaluation of foot function.

Video for Pressure Mapping | F-Scan GO Wireless In-Shoe Gait Analysis System

Wireless, high-resolution in-shoe gait analysis with automated reporting.

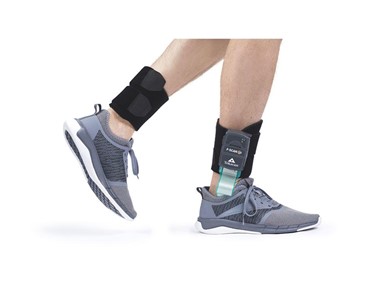

The F-Scan GO is a state-of-the-art, wireless pressure measurement system designed for comprehensive in-shoe gait analysis. Ideal for clinicians and researchers, it provides dynamic data on pressure, force, and timing without limiting natural movement—crucial for optimising orthotic interventions and assessing gait abnormalities.

Key Features

Wireless Operation: Entirely cord-free, allowing analysis of walking, running, or stair climbing with complete freedom.
High-Resolution Sensors: The most detailed plantar pressure mapping, vital for identifying high-pressure areas that can cause ulcers.
Automated Data Analysis: FootVIEW software offers one-click "3-Box Analysis" (Heel, Midfoot, Forefoot) and swift pre/post-intervention reporting.
Custom Fit Sensors: Sensors can be trimmed to precisely fit patient shoe size without sacrificing performance.
Multi-Device Integration: Syncs or is triggered by equipment such as EMG and Motion Capture systems (FootVIEW Pro version).
Real-Time Visuals: Force-vs-time curves, Centre of Force (CoF) trajectory, and pressure heatmaps can be viewed live during movement.

Technical Specifications

Storage	32 GB Micro-SD (onboard)
Sensor Type	Resistive (trimmable)
Battery Life	~2 hours continuous
Connectivity	Wi-Fi to PC
Sensing Area	Up to 960 sensing points per sensor
Sensor Model	Model 3010 (Standard) or 3000E
Sampling Rate	Up to 500 Hz (FootVIEW Pro), 100 Hz (Standard)
Pressure Range	Up to 862 kPa
Wearable Weight	133 g per leg unit
Data Acquisition	Wireless (Wi-Fi) or Data logging (Micro-SD)
Sensor Thickness	0.28 mm
Spatial Resolution	3.9 sensels/cm²

Software: FootVIEW

Modern, tablet-friendly interface designed exclusively for the F-Scan GO system.
Automates clinical biomechanics workflows and report generation.
Synchronises with external lab equipment for integrated analysis.

Manufacturer Support

Expert consultation for system configuration and setup.
Comprehensive training, troubleshooting and maintenance for continuous use.
Extensive global presence with reliable support for clinical or research environments.
