Pressure Mapping | MobileMat Portable Pressure Measurement Mat

Supplier: Aerobe

The MobileMat is a portable pressure measurement mat designed for detailed gait, balance, and plantar pressure analysis, ideal for clinicians and researchers in podiatry and orthopaedics.

Video for Pressure Mapping | MobileMat Portable Pressure Measurement Mat

Portable, high-speed mat for detailed gait and pressure analysis in clinical and research environments.

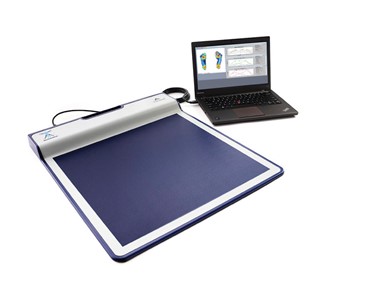

The MobileMat is a lightweight, portable pressure sensing mat engineered for both static and dynamic assessments of foot function, gait, and balance. With its low-profile design (only 0.3cm thick) and USB connectivity, it enables fast setup for use in clinics, laboratories, or even on the field, delivering objective plantar pressure and force data to aid in treatment and rehabilitation planning.

System Components

FootMat Software for Clinicians: Facilitates automated analysis and reporting for static and dynamic foot function to help clinicians evaluate pathologies, confirm treatment effectiveness, and educate patients.
FootMat Software for Researchers: Provides advanced analysis, raw data export, synchronisation with external devices (such as EMG and motion capture), and user-defined calibration—perfect for in-depth biomechanical research.
SportsAT Software (Standard Resolution Only): Enables standardised concussion protocols and sports-related assessments.

Key Features

Portable, durable design with a built-in handle, offering almost zero setup time and easy transport.
Ultra-low platform height for safe, natural movements, especially for users with mobility concerns.
Multi-purpose use: Static stance, dynamic gait, and balance or sway evaluations on a single platform.
Provides quantitative insights: Measures force asymmetries, centre of force excursions, and peak pressure points for evidence-based care.
Specialised software support for clinical and sports assessments, plus comprehensive reporting tools.
High-speed scanning capability (up to 185Hz) for accurate capture of rapid gait events and weight shifts.

Technical Specifications

Weight	3.5kg
Scan Rate	Standard: Up to 100Hz, High Resolution: Up to 185Hz
Connection	USB 2.0
Configurations	Standard Resolution (Model 3140), High Resolution (Model 7101E)
Pressure Range	Standard: 345–862 kPa (50–125 PSI); High Res: 345–1,103 kPa (50–160 PSI)
Sensor Resolution	Standard: 1.0 sensels/cm²; High Res: 3.9 sensels/cm²
Active Sensing Area	48.7 x 44.7 cm
Platform Dimensions	63.6 x 55.9 x 4.2 cm

Tekscan is globally renowned for tactile force and pressure mapping systems featuring ultra-thin sensors, supported by PhD-led consultation and worldwide installations. The company stands out for its commitment to providing comprehensive training, troubleshooting and lifetime application support.

To contact Aerobe about Pressure Mapping | MobileMat Portable Pressure Measurement Mat use Get a quote.

System Components

FootMat Software for Clinicians: Facilitates automated analysis and reporting for static and dynamic foot function to help clinicians evaluate pathologies, confirm treatment effectiveness, and educate patients.
FootMat Software for Researchers: Provides advanced analysis, raw data export, synchronisation with external devices (such as EMG and motion capture), and user-defined calibration—perfect for in-depth biomechanical research.
SportsAT Software (Standard Resolution Only): Enables standardised concussion protocols and sports-related assessments.

Key Features

Portable, durable design with a built-in handle, offering almost zero setup time and easy transport.
Ultra-low platform height for safe, natural movements, especially for users with mobility concerns.
Multi-purpose use: Static stance, dynamic gait, and balance or sway evaluations on a single platform.
Provides quantitative insights: Measures force asymmetries, centre of force excursions, and peak pressure points for evidence-based care.
Specialised software support for clinical and sports assessments, plus comprehensive reporting tools.
High-speed scanning capability (up to 185Hz) for accurate capture of rapid gait events and weight shifts.

Technical Specifications

Weight	3.5kg
Scan Rate	Standard: Up to 100Hz, High Resolution: Up to 185Hz
Connection	USB 2.0
Configurations	Standard Resolution (Model 3140), High Resolution (Model 7101E)
Pressure Range	Standard: 345–862 kPa (50–125 PSI); High Res: 345–1,103 kPa (50–160 PSI)
Sensor Resolution	Standard: 1.0 sensels/cm²; High Res: 3.9 sensels/cm²
Active Sensing Area	48.7 x 44.7 cm
Platform Dimensions	63.6 x 55.9 x 4.2 cm
