Philips - Motorised Mobile C-Arm with Flat Detector | Zenition 90

Supplier: Philips Healthcare

Motorised Mobile C-Arm with Flat Detector | Zenition 90

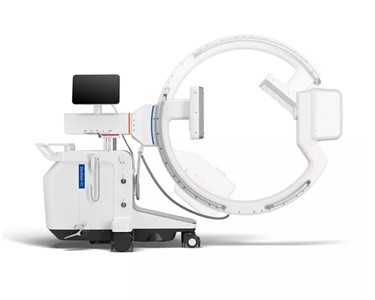

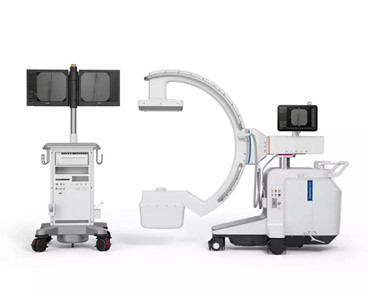

The Zenition 90 Motorized is an advanced, motorised mobile C-arm system designed for high-quality image guidance in complex medical procedures.

Intuitive, motorised C-arm system optimised for high-quality image guidance and efficiency in complex procedures.

Overview

This motorised C-arm delivers fast, high-resolution imaging for demanding clinical settings. Designed for flexibility and intuitive operation, it allows surgeons greater control at the table side with automated workflows, versatile motion, and advanced software solutions for streamlined procedures.

Key Features

Independence in the Operating Room: Operators can control four axes of motorisation via the Table Side Operator, maintaining sterility and ensuring smooth, precise movements. Control angulation and rotation using a single joystick, with variable speeds up to 15° per second.
High Power and Endurance: Available with 15 kW or 25 kW generator for a variety of procedures, even at steep angles or with dense anatomies. Enhanced heat management and active oil circulation support longer and more demanding workflows.

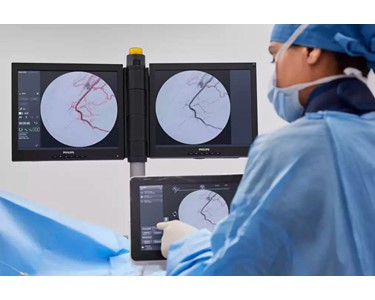

Advanced Control Interface: Features a touch screen module for a user-friendly, tablet-like experience. Physicians can adjust image parameters, collimate, rotate, and swipe through images directly from the table side.
Detector Options: Available with 21x21 cm or 30x30 cm flat detector sizes to accommodate diverse procedural needs.
Automated Workflows: Includes automatic vascular outlining for rapid and accurate vessel tree recognition in 2D imaging.
Safety: BodyGuard collision prevention sensors and electromagnetic brakes ensure safe operation.

Specifications

X-ray Tube	Rotating Anode
X-ray Generator	Monoblock 40 kHz high-frequency generator
Maximum Output	15 kW or 25 kW
Detector Options	Trixell amorphous silicon, 1344 x 1344 pixels (21x21 cm), 1956 x 1956 pixels (30x30 cm)
Pixel Pitch	154 µm
C-arc Depth	73 cm
Source Image Distance	99.3 cm
Angulation Range	+90° / -50°, max speed 15°/s
Lowest Lateral Position	103 cm
Connectivity	USB (PNG, MP4, BMP), Wireless data transfer, 2 DVI out, Advanced DICOM/IHE Package
Safety Features	BodyGuard collision sensors, electromagnetic brakes

Options & Software

Injector interface available
Automatic vascular outlining
Digital video output: S-Video, DVI, SDI
Advanced DICOM/IHE package

To contact Philips Healthcare about Philips Motorised Mobile C-Arm with Flat Detector | Zenition 90 use Get a quote.

Overview

Key Features

Independence in the Operating Room: Operators can control four axes of motorisation via the Table Side Operator, maintaining sterility and ensuring smooth, precise movements. Control angulation and rotation using a single joystick, with variable speeds up to 15° per second.
High Power and Endurance: Available with 15 kW or 25 kW generator for a variety of procedures, even at steep angles or with dense anatomies. Enhanced heat management and active oil circulation support longer and more demanding workflows.
Advanced Control Interface: Features a touch screen module for a user-friendly, tablet-like experience. Physicians can adjust image parameters, collimate, rotate, and swipe through images directly from the table side.
Detector Options: Available with 21x21 cm or 30x30 cm flat detector sizes to accommodate diverse procedural needs.
Automated Workflows: Includes automatic vascular outlining for rapid and accurate vessel tree recognition in 2D imaging.
Safety: BodyGuard collision prevention sensors and electromagnetic brakes ensure safe operation.

Specifications

X-ray Tube	Rotating Anode
X-ray Generator	Monoblock 40 kHz high-frequency generator
Maximum Output	15 kW or 25 kW
Detector Options	Trixell amorphous silicon, 1344 x 1344 pixels (21x21 cm), 1956 x 1956 pixels (30x30 cm)
Pixel Pitch	154 µm
C-arc Depth	73 cm
Source Image Distance	99.3 cm
Angulation Range	+90° / -50°, max speed 15°/s
Lowest Lateral Position	103 cm
Connectivity	USB (PNG, MP4, BMP), Wireless data transfer, 2 DVI out, Advanced DICOM/IHE Package
Safety Features	BodyGuard collision sensors, electromagnetic brakes

Options & Software

Injector interface available
Automatic vascular outlining
Digital video output: S-Video, DVI, SDI
Advanced DICOM/IHE package

Read less...

To contact Philips Healthcare about Philips Motorised Mobile C-Arm with Flat Detector | Zenition 90 use Get a quote.
