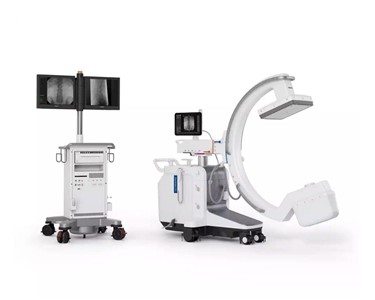

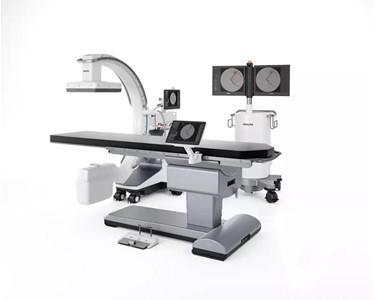

Exceptional imaging clarity and flexible control with automated workflows for complex procedures.

Exceptional Imaging Clarity and Flexibility

The system is designed for a wide variety of medical procedures, delivering exceptional imaging clarity through a powerful 15 kW generator. The improved heat management enables longer fluoroscopy and extended procedure times, making it suitable for complex interventions. Active oil circulation further enhances performance and system endurance.

Key Features

Touch Screen Module for sterile, table-side image control, offering a tablet-like, intuitive interface.
Fully counterbalanced C-arm for easy, single-surgeon operation, enhancing user independence and workflow optimisation in the operating room.
Available detector sizes: 21 x 21 cm and 30 x 30 cm flat detectors.
Automatic vascular outlining and multi-modality image viewing capability.
Injector interface and position memory for up to three C-arm positions.
Colour-coded, manual brakes for all C-arm movements.
Wireless data transfer and multi-format USB storage (PNG, MP4, BMP).

Specifications

X-ray Generator	Monoblock 40 kHz high frequency
Generator Output	15 kW
X-ray Tube	Rotating Anode
Flat Detector	Trixell amorphous silicon
Matrix Size	1344 × 1344 pixels (21 cm detector), 1956 × 1956 pixels (30 cm detector)
Pixel Pitch	154 µm
Detector Area	21 × 21 cm, 30 × 30 cm
C-arm Depth	73 cm
Source-Image Distance	99.3 cm
Angulation (rotation)	+90° / -50° (total 140°)
Lowest Lateral Position	103 cm
Brakes	Manual brakes for all movements (colour-coded)
Digital Connectivity	USB, Wireless, DICOM/IHE, DVI, SDI
Options	Multi-Modality Viewer, Tank Laser Aimer, Injector Interface, Position Memory

To contact Philips Healthcare about Philips Mobile C-arm with Flat Detector | Zenition 90 use Get a quote.
