Exceptional imaging clarity and intuitive usability for surgical environments.

Overview

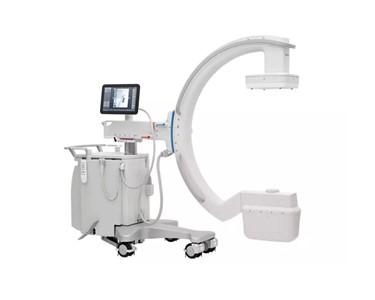

The Zenition 70 is part of the Zenition mobile C-arm family, delivering fourth-generation flat detector imaging for surgical procedures. It offers proven ease of use, efficient workflow, and future-fit technology with user-friendly controls and advanced image guidance.

Key Features

Imaging Clarity: Delivers high-quality images with flat detector technology, supporting a wide range of cases.
Efficiency in the Operating Room: Touch control and Unify workflow reduce miscommunication and repositioning time, helping to increase surgical efficiency.
User Interface: Intuitive ‘point and shoot’ design with on-screen guidance, enabling use by operators at all experience levels.
Usability: Scored in the top 12% for best system usability in independent clinical tests.
Detector Sizes: Available with 21x21 cm, 26x26 cm, and 30x30 cm amorphous silicon detectors.
Future Ready: Based on a standard Windows® platform for seamless updates and new innovation integration.

Specifications

X-ray Generator	Monoblock 80 kHz high frequency
X-ray Tube	Rotating Anode
Maximum Output	15 kW
Detector Technology	Trixell amorphous silicon
Detector Area	FD30: 30.12 x 30.12 cm; FD26: 26.2 x 26.2 cm; FD21: 20.7 x 20.7 cm
Matrix Size	FD30: 1956 x 1956 px; FD26: 1560 x 1424 px; FD21: 1344 x 1344 px
Pixel Pitch	FD30 & FD21: 154 µm; FD26: 184 µm
Connectivity	Optional WLAN S-Video, DVI (digital and analogue), SDI Optional digital video out: 2 DVI connectors (left and right monitors) USB storage (PNG, MP4, BMP) Advanced DICOM/IHE package
Geometry	C-arc depth: 73 cm Source-image distance: 99.3 cm Angulation: +90° / -50° Lowest lateral position: 102.7 cm

To contact Philips Healthcare about Philips Mobile C-arm with Flat Detector | Zenition 70 use Get a quote.
