Fluoroscopy System | ProxiDiagnost N90

The ProxiDiagnost N90 is a versatile digital radiography-fluoroscopy (DRF) system engineered by Philips, tailored for both radiography and fluoroscopy applications in clinical settings.

Integrated 2-in-1 digital system for high-end radiography and fluoroscopy with automatic dose adjustment.

Overview

The ProxiDiagnost N90 is a compact digital radiography-fluoroscopy solution designed to improve both room utilisation and patient throughput. Integrating advanced Philips imaging technologies, this 2-in-1 system supports a broad range of diagnostic examinations with a slim design, robust construction, and patient-centred features.

Key Features

2-in-1 cross-functional system for radiography and fluoroscopy, suitable for chest, spine, extremities, skull, GI, arthrography, venography, lymphography, myelography, and Digital Subtraction Angiography (DSA).
Grid-Controlled Fluoroscopy (GCF) for fully automatic dose adjustment, using a grid-switch mechanism for low-dose, high-quality imaging.
Eleva Tube Head with intuitive smart touch interface, allowing quick adjustment of imaging parameters at the tube head and optional live camera image for patient positioning.
High room utilisation and improved workflow efficiency.

Specifications

Parameter	Value
Table Weight Capacity (static/tilting/all movements)	300 kg / 250 kg / 185 kg
Tabletop Dimensions	200 cm x 80 cm
Tabletop Height	83.3 cm

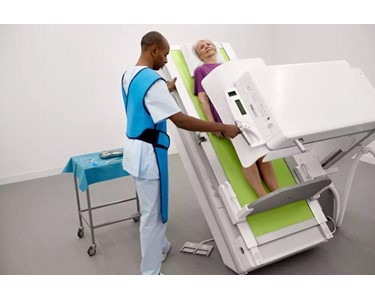

Table Tilt Angle	+90° to -30° (optional up to -45°/-85°)
Tabletop Clearance to Detector	25 – 60 cm
Dynamic Flat Detector Type/Size	Cesium Iodide (CsI), 43 cm x 43 cm
Active Detector Area	42 cm x 42.6 cm
Pixel Size	148 µm
Image Matrix Size	2880 x 2881 pixels
Fluoroscopy Rate	Continuous: up to 30 fps, Pulsed GCF: 0.5–30 fps, Pulsed PCF: 0.5–6 fps
Generator Power	65 kW (80 kW optional)
Tube Voltage (exposure/fluoroscopy)	40–150 kV / 40–125 kV

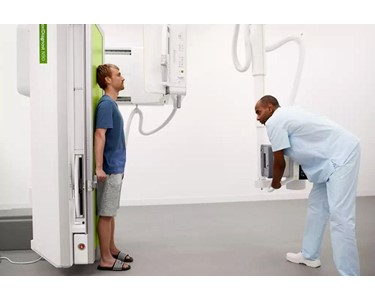

Vertical Stand (motorised, option)	Travel: 30–180 cm, Tilting optional -20° to +90°
Detector (Vertical Stand Option)	Fixed 43 cm x 43 cm or SkyPlate 35 cm x 43 cm
Eleva Tube Head Display	30.7 cm full colour LCD touch display

Applicational Range

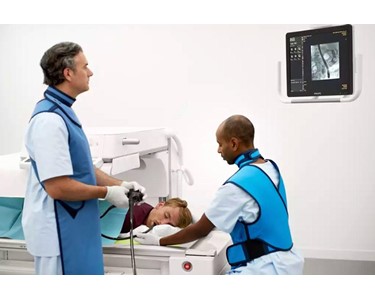

Fluoroscopy: Gastrointestinal, urinary studies, ERCP, and guided injections.
Radiography: Skull, ribs, spine, pelvis, upper extremities, long spine, lung, abdomen, and more.

Additional Options

Choice of SkyPlate detector sizes (small: 24 cm x 30 cm, large: 35 cm x 43 cm, both CsI flat detectors).
Motorised collimator and four-part telescopic ceiling suspension option.
Colour-coded control buttons and capacitive sensors for ergonomic workflow.
