Philips - Fluoroscopy System | CombiDiagnost R90

Supplier: Philips Healthcare

Fluoroscopy System | CombiDiagnost R90

The CombiDiagnost R90 is a versatile remote-controlled system combining digital radiography and fluoroscopy, designed for a wide range of diagnostic imaging needs.

Combines digital radiography and remote fluoroscopy in one versatile system.

Overview

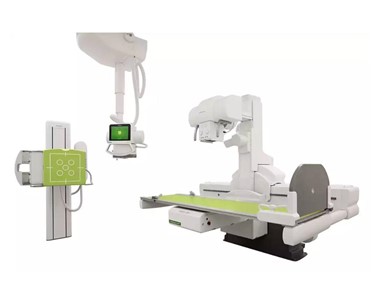

The CombiDiagnost R90 is a multi-purpose medical imaging system offering high-end digital radiography and remote fluoroscopy in one device. Its fully digital workflow, advanced image quality, and robust dose management support a broad range of examinations, from paediatric to bariatric imaging. The system is engineered to enhance room utilisation while being cost effective.

Key Features

2-in-1 Functionality: Combines high-end radiography and fluoroscopy. Ideal for chest, spine, extremities, skull, gastro-intestinal exams, arthrography, venography, lymphography, myelography, and Digital Subtraction Angiography (DSA).

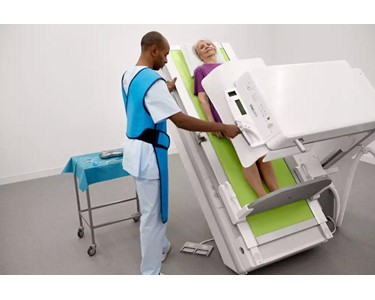

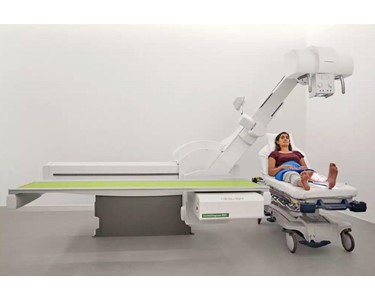

Flexible Geometry: Remote controlled tiltable table (-90° to +90°) supports all standard fluoroscopy studies and traditional X-rays, including image stitching. The tabletop accommodates patients up to 284 kg without restricting movement.

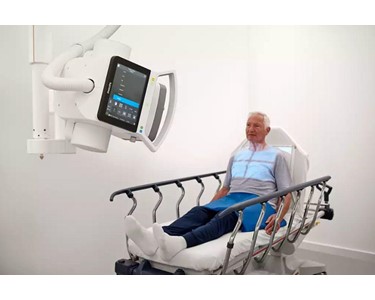

Eleva Tube Head^¹: Modern touch interface in the examination room for fast parameter adjustment and improved positioning via optional live camera image.

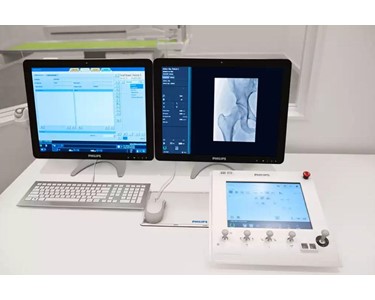

Optimised Workflow: Intuitive touchscreen for controlling geometry movement and fluoroscopy parameters.
Excellent Image Quality at Low Dose: DIGITAL radiography and fluoroscopy with high-resolution detectors and multiple acquisition modes.

Technical Specifications

Generator Power	65 kW (80kW optional)
Tube Voltage Exposure	40 – 150 kV
Exposure Techniques	Manual, Automatic Exposure Control (IQX)
Table Tilt Angle	-90° / +90°
Table Height	65 cm – 133 cm
Maximum Patient Weight	284 kg
Tube Column Movement Range	160 cm
Dynamic Flat Detector Size	43 x 43 cm Image matrix size: 2874 x 2840 pixels Pixel size: 148 µm
Wireless Detector (Large)	Digital CsI flat detector 35 x 43 cm Image matrix size: 2330 x 2846 pixels Active area: 34.48 x 42.12 cm
Wireless Detector (Small)	Digital CsI flat detector 24 x 30 cm Image matrix size: 1500 x 1920 pixels Active area: 22.2 x 28.4 cm
Digital Vertical Stand	Detector size: Fixed 43 x 43 cm or SkyPlate 35 x 43 cm Motorised tilting: Optional, -20° to +90° Vertical travel: 30 cm – 180 cm

Applications

Radiography: Skull, ribs, spine, pelvis, upper extremities, long spine, lung, abdomen and more.
Fluoroscopy: Gastrointestinal and urinary studies, ERCP, and fluoroscopy-guided injections.

To contact Philips Healthcare about Philips Fluoroscopy System | CombiDiagnost R90 use Get a quote.
