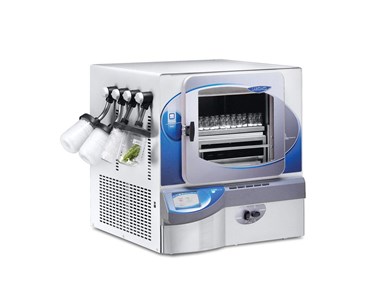

The FreeZone Triad -84 °C Freeze Dryer is designed for laboratories requiring versatile, high-performance lyophilisation of aqueous and dilute acetonitrile sample types across various forms.

Versatile lyophilisation with precise temperature control down to -84 °C and flexible sample handling.

Key Features

Upright stainless steel collector coil holds up to 2.5L of ice and removes up to 1.84L of water in 24 hours before defrosting.
Two 1/3 hp HCFC/CFC-free refrigeration compressors reach -84°C for the collector, ideal for a range of delicate samples (excluding methanol or ethanol).
Temperature-controlled shelves support a range from -55°C to +50°C and pre-freezing down to -75°C; precision control to ±1°C.
Pneumatic stoppering tray integrated, eliminating the need for compressed gas.
Lyo-Works™ OS on a 5" full-colour touchscreen provides real-time collector temperature and vacuum readouts, programmable ramps/holds, data logging, diagnostic tests, and multi-language support.
Four valve ports accommodate various flask adapters (1.27cm and 1.91cm).
Built-in probe for sample temperature monitoring; storage for up to 30 custom programs with 16 segments each.
Vacuum pump maintenance alert; USB/Ethernet for data export; programmable email alerts.
Manual and automated control of collector and shelf temperatures, vacuum, and backfill.
Stainless steel and powder-coated steel construction, 2.5L ice capacity.
Clear acrylic chamber door (2.54cm thick) with latch and silicone gasket. Includes a 91.44cm vacuum hose and clamps.
Vacuum pump and freeze-dry glassware required (but not included).

Shelf and Chamber Specifications

Processing shelf dimensions: 31.5cm (W) × 36.8cm (D).
Shelf-to-chamber clearance: 14.8cm for stoppered containers.
Temperature programming: Store up to 30 sets, each with 16 steps (including ramp rate, hold time, vacuum level).

Connectivity & Control

Real-time data logging to USB or via Ethernet.
Full-colour, touch display interface; setpoints for ramps, hold, and vacuum.
Multilingual interface with settings for temperature (°C/°F) and vacuum (mBar/Torr/Pa).
Alerts for system status and email notifications.
Security lock-out feature.

Additional Design Features

Hot gas defrosting with auto shut-off at +60°C.
Stainless steel drain pan and silicone hose for defrost water removal.
Region-specific electrical plug options available; 230V, 50Hz model for China/Australia.
Pneumatic stoppering mechanism (no compressed gas required), vacuum control and break valves, user-supplied inert gas backfill port (0.32cm OD).

Required Accessories (Not Included)

Vacuum pump with =98L/min displacement and 0.02mBar ultimate pressure, fitting for 1.91cm ID vacuum hose.
Freeze dry glassware (if not performing bulk freeze drying).

General Suitability

Suitable for biological, pharmaceutical, and chemical laboratories requiring lyophilisation of multiple sample types and containers.

To contact Thermo Fisher Scientific Australia Pty Ltd about FreeZone™ Triad Freeze Dryer use Get a quote.

Key Features

Upright stainless steel collector coil holds up to 2.5L of ice and removes up to 1.84L of water in 24 hours before defrosting.
Two 1/3 hp HCFC/CFC-free refrigeration compressors reach -84°C for the collector, ideal for a range of delicate samples (excluding methanol or ethanol).
Temperature-controlled shelves support a range from -55°C to +50°C and pre-freezing down to -75°C; precision control to ±1°C.
Pneumatic stoppering tray integrated, eliminating the need for compressed gas.
Lyo-Works™ OS on a 5" full-colour touchscreen provides real-time collector temperature and vacuum readouts, programmable ramps/holds, data logging, diagnostic tests, and multi-language support.
Four valve ports accommodate various flask adapters (1.27cm and 1.91cm).
Built-in probe for sample temperature monitoring; storage for up to 30 custom programs with 16 segments each.
Vacuum pump maintenance alert; USB/Ethernet for data export; programmable email alerts.
Manual and automated control of collector and shelf temperatures, vacuum, and backfill.
Stainless steel and powder-coated steel construction, 2.5L ice capacity.
Clear acrylic chamber door (2.54cm thick) with latch and silicone gasket. Includes a 91.44cm vacuum hose and clamps.
Vacuum pump and freeze-dry glassware required (but not included).

Shelf and Chamber Specifications

Processing shelf dimensions: 31.5cm (W) × 36.8cm (D).
Shelf-to-chamber clearance: 14.8cm for stoppered containers.
Temperature programming: Store up to 30 sets, each with 16 steps (including ramp rate, hold time, vacuum level).

Connectivity & Control

Real-time data logging to USB or via Ethernet.
Full-colour, touch display interface; setpoints for ramps, hold, and vacuum.
Multilingual interface with settings for temperature (°C/°F) and vacuum (mBar/Torr/Pa).
Alerts for system status and email notifications.
Security lock-out feature.

Additional Design Features

Hot gas defrosting with auto shut-off at +60°C.
Stainless steel drain pan and silicone hose for defrost water removal.
Region-specific electrical plug options available; 230V, 50Hz model for China/Australia.
Pneumatic stoppering mechanism (no compressed gas required), vacuum control and break valves, user-supplied inert gas backfill port (0.32cm OD).

Required Accessories (Not Included)

Vacuum pump with =98L/min displacement and 0.02mBar ultimate pressure, fitting for 1.91cm ID vacuum hose.
Freeze dry glassware (if not performing bulk freeze drying).

General Suitability

Suitable for biological, pharmaceutical, and chemical laboratories requiring lyophilisation of multiple sample types and containers.
