FreeZone™ 4.5 L -50°C Benchtop Freeze ...

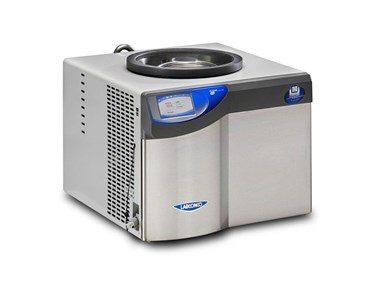

FreeZone™ 4.5 L -50°C Benchtop Freeze Dryer, 230 V Model

Supplier: Thermo Fisher Scientific Australia Pty Ltd

The Benchtop Freeze Dryer is a compact lyophilisation unit, ideal for laboratories with limited space, designed for the efficient freeze drying of light sample loads.

Compact benchtop design with advanced touch-screen control for efficient, high-quality sample lyophilisation.

Key Features

Upright stainless steel collector coil with ice capacity ranging from 2.5 L to 8 L before defrosting.
Three temperature configurations available: -50°C for aqueous samples, -84°C for a wide range of solvents, and -105°C for dilute ethanol and methanol mixtures.
PTFE-coated collector coil and chamber option for corrosive samples.
Compact benchtop footprint with brushed stainless steel and powder-coated steel exterior.
5" full-colour capacitive touchscreen interface with Lyo-Works™ OS, providing real-time display of collector temperature, vacuum levels, and optional End-Zone™ end point detection system.
Data logging, exportable via USB or Ethernet.
Programmable alerts and maintenance reminders (e.g., vacuum pump oil change, refrigeration cleaning, total operating hours).
Hot gas defrost with auto shut off at +60°C.
Security lock-out for program and system parameter changes.
Moisture sensors and vacuum control valves for safety and process control.
Side-mounted USB and quick-disconnect drain hose; rear-mounted Ethernet and electrical connections.
Automatic or manual start-up modes for collector cool-down and vacuum pull-down.
Restart capability after brief power outages.

Capacity & Dimensions

Collector coil holds from 2.5 L to 8 L of ice (depending on model).
3/4" thick acrylic collector lid with neoprene gasket and 3" diameter port for drying accessory connection.
Vacuum connection: 3/4" OD, with 50" of 3/4" ID vacuum hose and two clamps.

Required Accessories (not included)

Vacuum pump with at least 98 L/min displacement, 0.02 mBar ultimate pressure, and fittings for 3/4" ID vacuum hose.
Freeze dry glassware, small tray dryer, or other suitable drying accessory.

Additional Options

PTFE-coated collectors for enhanced chemical resistance.
Region-specific electrical plug configurations.
Multiple supported languages for the interface.

Safety & Maintenance

Programmable alerts for maintenance and safe operation.
Moisture sensors prevent operation when water is detected in drain line.
Automatic system restart after power outages under 5 minutes, with safety checks for temperatures.
Level-specific lockouts for added security.

Control & Connectivity

Interface supports multiple languages.
USB and Ethernet connectivity for monitoring and data export.
Configurable alerts via Ethernet to email addresses.

To contact Thermo Fisher Scientific Australia Pty Ltd about FreeZone™ 4.5 L -50°C Benchtop Freeze Dryer, 230 V Model use Get a quote.

Key Features

Upright stainless steel collector coil with ice capacity ranging from 2.5 L to 8 L before defrosting.
Three temperature configurations available: -50°C for aqueous samples, -84°C for a wide range of solvents, and -105°C for dilute ethanol and methanol mixtures.
PTFE-coated collector coil and chamber option for corrosive samples.
Compact benchtop footprint with brushed stainless steel and powder-coated steel exterior.
5" full-colour capacitive touchscreen interface with Lyo-Works™ OS, providing real-time display of collector temperature, vacuum levels, and optional End-Zone™ end point detection system.
Data logging, exportable via USB or Ethernet.
Programmable alerts and maintenance reminders (e.g., vacuum pump oil change, refrigeration cleaning, total operating hours).
Hot gas defrost with auto shut off at +60°C.
Security lock-out for program and system parameter changes.
Moisture sensors and vacuum control valves for safety and process control.
Side-mounted USB and quick-disconnect drain hose; rear-mounted Ethernet and electrical connections.
Automatic or manual start-up modes for collector cool-down and vacuum pull-down.
Restart capability after brief power outages.

Capacity & Dimensions

Collector coil holds from 2.5 L to 8 L of ice (depending on model).
3/4" thick acrylic collector lid with neoprene gasket and 3" diameter port for drying accessory connection.
Vacuum connection: 3/4" OD, with 50" of 3/4" ID vacuum hose and two clamps.

Required Accessories (not included)

Vacuum pump with at least 98 L/min displacement, 0.02 mBar ultimate pressure, and fittings for 3/4" ID vacuum hose.
Freeze dry glassware, small tray dryer, or other suitable drying accessory.

Additional Options

PTFE-coated collectors for enhanced chemical resistance.
Region-specific electrical plug configurations.
Multiple supported languages for the interface.

Safety & Maintenance

Programmable alerts for maintenance and safe operation.
Moisture sensors prevent operation when water is detected in drain line.
Automatic system restart after power outages under 5 minutes, with safety checks for temperatures.
Level-specific lockouts for added security.

Control & Connectivity

Interface supports multiple languages.
USB and Ethernet connectivity for monitoring and data export.
Configurable alerts via Ethernet to email addresses.
