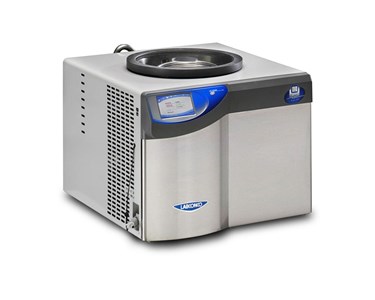

FreeZone™ 2.5 L -84°C Benchtop Freeze Dryer, 230 V Model

Supplier: Thermo Fisher Scientific Australia Pty Ltd

Compact benchtop freeze dryers designed for efficient lyophilisation of light sample loads in laboratories with limited space.

Compact design ideal for efficient lyophilisation in space-limited laboratories.

Key Features

Stainless steel collector coil available in 2.5, 4, or 8 litres ice capacity before defrosting.
Three collector temperature options:
- -50°C for aqueous samples
- -84°C for a wide range of laboratory solvents
- -105°C for dilute ethanol and methanol mixtures
Lyo-Works™ OS with real-time display on a 5" full colour capacitive touchscreen:
- Displays collector temperature, vacuum level, and optional End-Zone™ end point detection system
- Data logging to table or chart, exportable via USB or Ethernet
- Supports multiple languages
- Programmable alerts sent via Ethernet to email addresses
- User manual and diagnostic tests accessible from the interface
PTFE-coated collector models available for corrosive compounds.
Security lock-out for program and system parameters.
Hot gas defrost with auto shut off at +60°C.
Vacuum control valve to maintain vacuum set point.
Moisture sensor to prevent refrigeration/vacuum start if moisture detected in drain line.
Compact benchtop footprint, brushed stainless steel and white, powder-coated steel exterior.
Maintenance alerts for vacuum pump oil change, refrigeration cleaning, and total operating hours.
USB & Ethernet connectivity, language and regional plug options.

Technical Specifications

Ice Holding Capacity	2.5, 4, or 8 litres (depending on model)
Collector Temperatures	-50°C, -84°C, -105°C
Control System	Lyo-Works™ OS, 5" colour touchscreen
Construction	Stainless steel collector, acrylic lid with neoprene gasket
Vacuum Connection	3/4" OD vacuum connection, 50" length vacuum hose
Required Accessories	Vacuum pump (=98 L/min, 0.02 mBar ultimate pressure), suitable drying accessory
Connectivity	USB, Ethernet
Electrical	Region-specific plug, 3-wire electrical cord

Additional Details

Standing or benchtop configuration for flexibility in small lab spaces.
Maintenance features include alerts for pump oil change and unit cleaning.
Programmable with multilingual interface and safety lock-out functions for security.
Accessories and glassware for varied freeze drying applications available separately.
