The APS VM-30 Series is a palm-size veterinary monitor designed for reliable, mobile vital-signs monitoring. It supports selectable parameters (SpO2, Pulse Rate, Temperature, and Capnography) with mainstream or external sidestream EtCO2, plus sound & light alarms, multi-mode display, trend records, Bluetooth connectivity, and a rechargeable lithium battery. Veterinary-tuned algorithms (LowPulseStr™ SpO2, iFastBP® NIBP, wSmartHeart® ECG, wSmartGas® capnography) enhance performance across species and low-perfusion conditions. Typical uses include animal care, ER, OR, and ward monitoring.


Key Features (bullets)

• Palm veterinary monitor; comfortable, ergonomic grip.

• Selectable parameters: SpO2, PR, TEMP, EtCO2 (mainstream or external sidestream).

• Sound & light double alarm; adjustable screen brightness.

• Multi-mode display with information trend record.

• Bluetooth connection; patient-management/data transmission via flexible protocol.

• Dedicated base, rechargeable; connect to the Internet.

• 10500 mA lithium battery; up to 5 h battery life.

• Anti-drop design; excellent usability engineering.

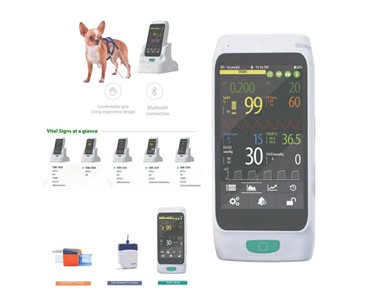

  Variants / Configurations

  • VM-30D: SpO2, PR

  • VM-30E: SpO2, PR, EtCO2 (Mainstream)

  • VM-30F: SpO2, PR, EtCO2 (External Sidestream)

  • VM-30A: SpO2, PR, TEMP, EtCO2 (Mainstream)

  • VM-30H: SpO2, PR, TEMP, EtCO2 (External Sidestream)



    Technical Specifications (table)



    Parameter	Range	Accuracy	Resolution
    SpO2	0–100%	±2% (70–100%), undefined <69%	1%
    Pulse Rate (PR)	25–350 bpm	±3 bpm	1 bpm
    Temperature (TEMP)	0–50 °C	±0.1 °C	0.1 °C
    Respiration (AwRR)	0–150 rpm	±1 rpm (0–70 rpm)	1 rpm
    EtCO2	0–20 vol%	0–12 vol%: ±(0.2 vol% + 2% of reading); 12.1–20 vol%: ±(0.2 vol% + 6% of reading)	1 mmHg

Dimensions: 80 × 45 × 180 mm
Weight: < 2 kg (without accessories)
Operating Temp: 0–40 °C
Operating Humidity: 15–95% RH, non-condensing
Power Supply (base/charger): AC 100–240 V (±10%), 50/60 Hz (±3 Hz), 60 VA
Battery: Built-in lithium (10500 mA), up to 5 h battery life

What’s in the Box (base pack)

• VM-30 device (model per selection)

• Built-in lithium battery

• Lanyard

• Power/charging accessories (per configuration)

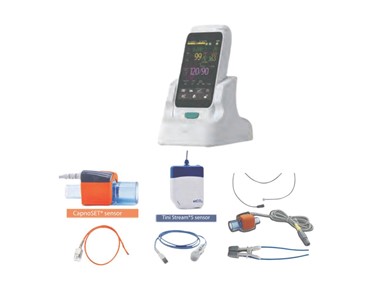

  Options / Accessories

  • CapnoSET® Mainstream sensor kit

  • External Sidestream CO2 module

  • Airway adapters: small animal (disposable), large animal (reusable)

  • Additional sensors and base/dock options

  Applications / Use Cases

  Animal care, emergency/ER, operating room, ward/patient management (veterinary).

  Compliance / Algorithms (for copy where needed)

  Veterinary versions of LowPulseStr™ SpO2, iFastBP® NIBP, wSmartHeart® ECG, wSmartGas® capnography technologies.
