APS Technology Australia - M5V Portable Waterproof Veterinary Ultrasound Get latest price

Read more...

To contact APS Technology Australia Pty Ltd about APS Technology Australia M5V Portable Waterproof Veterinary Ultrasound use Get a quote.

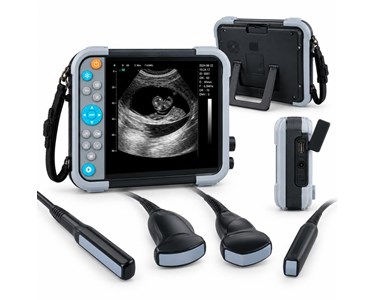

1. The M5V Portable Waterproof Veterinary Ultrasound is a compact veterinary imaging system designed for veterinarians requiring portability for field, farm and livestock examinations.
2. With an approximately 1 kg main unit, waterproof construction and more than 3.5 hours of operating time, the M5V is suited to mobile veterinary workflows where examinations may need to be performed away from a fixed clinical environment.
3. The system features a 7-inch 16:9 display with 800 × 600 resolution and supports B, B+B, B+M and M imaging modes. Local storage accommodates up to 64 images, with additional USB drive support.
4. Multiple veterinary probe options allow the system to be configured for different examination requirements. Supported applications include pregnancy examination and gestational-age measurement in horses, cattle, sheep and goats.

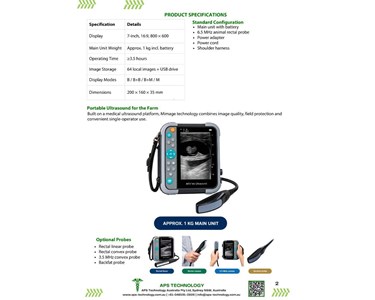

5. Specifications of this Product

6. Display: 7-inch, 16:9

7. Display resolution: 800 × 600

8. Imaging modes: B, B+B, B+M and M

9. Battery operating time: More than 3.5 hours

10. Local image storage: 64 images

11. External storage: USB drive support

12. Dimensions: Approx. 200 × 160 × 35 mm

13. Main unit weight: Approx. 1 kg

14. Construction: Waterproof design

15. Standard probe: 6.5 MHz animal rectal probe

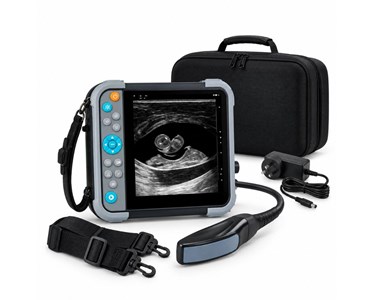

16. Standard accessories: Power adaptor, power cord and shoulder harness

17. Optional probes: Rectal linear probe, rectal convex probe, 3.5 MHz convex probe and backfat probe

18. Features of this Product

19. Compact approximately 1 kg main unit supports mobile veterinary workflows

20. Waterproof design suited to demanding veterinary field environments

21. More than 3.5 hours of operating time supports examinations away from mains power

22. 7-inch display provides an integrated viewing interface in a portable format

23. Multiple imaging modes provide flexibility for supported veterinary examinations

24. 64-image local storage enables examination images to be retained on the unit

25. USB drive support provides an additional option for image storage

26. Multiple veterinary probe options allow configuration for different animal applications

27. Standard 6.5 MHz animal rectal probe supports appropriate livestock examination workflows

28. Shoulder harness assists with carrying and positioning the system during mobile use

29. Compact dimensions make the unit easier to transport between animals and examination locations

30. Supports reproductive imaging applications in several livestock species

31. Applications of this Product

32. Veterinary field examinations

33. Farm-based veterinary imaging

34. Livestock reproductive examinations

35. Pregnancy examination

36. Gestational-age measurement

37. Equine examinations

38. Bovine examinations

39. Ovine examinations

40. Caprine examinations

41. Why Choose this Product

42. Lightweight design for mobile veterinary use

43. Waterproof construction for field-oriented workflows

44. Battery operation for examinations away from fixed power sources

45. Multiple probe options for different veterinary requirements

46. Compact integrated display and control platform

47. Multiple supported imaging modes

48. Local and USB image storage options

49. Suitable for supported livestock reproductive applications

50. Shoulder harness included for easier field handling
