X-ray RAD Speed Fit Plus Version

Supplier: Austrade Medical Australia

X-ray RAD Speed Fit Plus Version

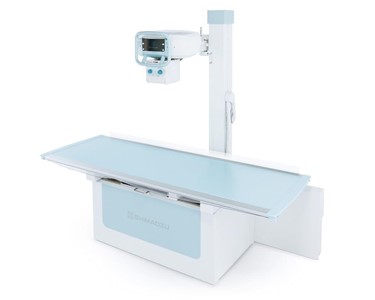

Radiography System RADspeed fit plus version is an X-ray radiographic system suitable for radiography for each region of a patient in horizontal or vertical position.

Receive 1-3 days from order

This system can be used for the following radiography:

• Digital radiography using a flat panel detector

• General radiography using an X-ray film cassette or CR cassette

Features of this product

Inverter Method: This device generates a low ripple high voltage that can produce X-rays with efficiency, using a high frequency inverter. Since it can terminate X-ray asynchronous with the power source, photo timer exposure in an extremely short time range can be operated in a highly accurate manner. Furthermore, the adoption of a feedback control method for X-ray output enables it to generate a stable X-ray without being affected by the fluctuation of the power source voltage.
X-ray High Voltage Generator Control Panel: The adoption of sheet keys for the X-ray high voltage generator control panel prevents dust and dirt from entering through the interstices of the keys, enhancing the reliability of key operations. The X-ray high voltage generator control panel is also a compact wall-hanging type, which does not occupy much installation space.
Switching Control Methods: The radiography condition methods include two methods, that is, a 3-control method where tube voltage (kV), tube current (mA) and exposure time (sec) are set, and a 2-control method where tube voltage (kV) and tube current time product (mAs) are set. In the 2-control method, the tube current (mA) is automatically set to its allowable maximum value and the exposure time (sec) is set to its minimum value.
Anatomical Program Key (APR): The suitable exposure conditions according to position or body thickness are preset. Also, original exposure condition is easy to change.
One-touch Guide Function: This function makes exposure preparation easier by displaying film size, grid setting, and exposure distance suitable for radiography technique and position on the X-ray high voltage generator control panel.
Vertical, Longitudinal and Crosswise (Front/Rear) Travels of X-ray Tube Assembly: The X-ray tube assembly can be moved in the vertical, longitudinal and crosswise (front/rear) directions for smooth positioning as suits the radiograph to be taken.
Heavy Duty 4-way floating table: The bucky table can support up to 320kg. Patient positioning is made easier with the extremely smooth moving tabletop.
Bucky tracking function: Easily synchronize the travel of a bucky unit with the X-ray tube support position thanks to mechanical linkage. Oblique projection is also available by detach the linkage.
Energy saving collimator with a bright irradiation field: LED is adopted as the light source to indicate the irradiation field. This reduces power consumption and improves brightness levels and durability.
Dose Management: A calculated Dose Area Product(DAP) is displayed after exposure, using the actual exposure parameters. The measured exposure parameters and calculated DAP can be displayed on a Generator console.
Removable Grid: Removing the grid during radiography allows reducing the exposure dose level in pediatric and orthopedic applications.
AEC radiography (option): When the AEC option is combined, the Automatic Exposure Control is available.

To contact Austrade Medical Australia about X-ray RAD Speed Fit Plus Version use Get a quote.

This system can be used for the following radiography:

• Digital radiography using a flat panel detector

• General radiography using an X-ray film cassette or CR cassette

Features of this product

Inverter Method: This device generates a low ripple high voltage that can produce X-rays with efficiency, using a high frequency inverter. Since it can terminate X-ray asynchronous with the power source, photo timer exposure in an extremely short time range can be operated in a highly accurate manner. Furthermore, the adoption of a feedback control method for X-ray output enables it to generate a stable X-ray without being affected by the fluctuation of the power source voltage.
X-ray High Voltage Generator Control Panel: The adoption of sheet keys for the X-ray high voltage generator control panel prevents dust and dirt from entering through the interstices of the keys, enhancing the reliability of key operations. The X-ray high voltage generator control panel is also a compact wall-hanging type, which does not occupy much installation space.
Switching Control Methods: The radiography condition methods include two methods, that is, a 3-control method where tube voltage (kV), tube current (mA) and exposure time (sec) are set, and a 2-control method where tube voltage (kV) and tube current time product (mAs) are set. In the 2-control method, the tube current (mA) is automatically set to its allowable maximum value and the exposure time (sec) is set to its minimum value.
Anatomical Program Key (APR): The suitable exposure conditions according to position or body thickness are preset. Also, original exposure condition is easy to change.
One-touch Guide Function: This function makes exposure preparation easier by displaying film size, grid setting, and exposure distance suitable for radiography technique and position on the X-ray high voltage generator control panel.
Vertical, Longitudinal and Crosswise (Front/Rear) Travels of X-ray Tube Assembly: The X-ray tube assembly can be moved in the vertical, longitudinal and crosswise (front/rear) directions for smooth positioning as suits the radiograph to be taken.
Heavy Duty 4-way floating table: The bucky table can support up to 320kg. Patient positioning is made easier with the extremely smooth moving tabletop.
Bucky tracking function: Easily synchronize the travel of a bucky unit with the X-ray tube support position thanks to mechanical linkage. Oblique projection is also available by detach the linkage.
Energy saving collimator with a bright irradiation field: LED is adopted as the light source to indicate the irradiation field. This reduces power consumption and improves brightness levels and durability.
Dose Management: A calculated Dose Area Product(DAP) is displayed after exposure, using the actual exposure parameters. The measured exposure parameters and calculated DAP can be displayed on a Generator console.
Removable Grid: Removing the grid during radiography allows reducing the exposure dose level in pediatric and orthopedic applications.
AEC radiography (option): When the AEC option is combined, the Automatic Exposure Control is available.
