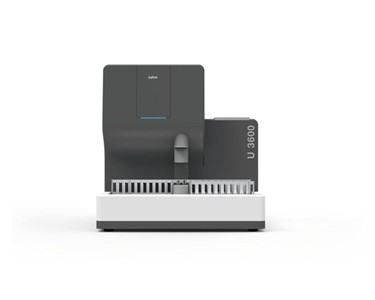

U3600 is an integrated machine that combines the function of urine physical analysis, chemical analysis and formed particle analysis.

Receive 1-3 days from order

It is designed for upgrading your urine analysis solutions, which could provide 16 items chemical analysis, 46 items formed particles analysis, and 5 items physical analysis. The 3600 utilizer laminar flow technology, high-speed photograph technology, and medical image recognition technology to provide high-resolution images and accurate urine particle classification.

Key Features

Comprehensive Testing Capabilities:
- Chemical Analysis: Supports 14+2 parameters using photoelectric colorimetry with full-spectrum laminar flow technology.
- Physical Analysis: Measures 5 parameters, including color, specific gravity, turbidity, osmolarity, and conductivity.
- Morphological Analysis: Utilizes high-speed photography and medical image recognition technology to classify up to 46 formed elements in urine sediments.
High Throughput:
- Chemical Mode: Processes up to 240 samples per hour.
- Hybrid Mode (Chemical + Morphological): Handles up to 120 samples per hour.
Advanced Imaging Technology:
- Laminar Flow Technology: Ensures particles pass through the imaging area in a single layer, minimizing overlap and aggregation, with a sample carry-over rate of less than 0.05%.
- High-Speed Photography: Captures high-resolution images to enhance recognition accuracy and reduce the need for manual microscopy.
- Medical Image Recognition: Employs deep learning algorithms to classify up to 25 types of formed elements, combining precision with efficiency.
User-Friendly Design:
- Compact Footprint: Saves up to 50% of space compared to traditional workstations.
- Automated Sample Loading: Features self-loading of samples and strips, along with cap-break technology to minimize contamination.
- No Need for Centrifugation or Staining: Simplifies sample preparation and handling.

Technical Specifications

Dimensions: 687 mm (W) x 512 mm (D) x 530 mm (H)
Weight: 55 kg
Sample Capacity: Up to 60 samples, with 6 racks of 10 samples each
Throughput:
- Chemical Mode: 240 tests per hour
- Hybrid Mode: 120 tests per hour
Test Parameters:
- Chemical: 14+2 parameters
- Physical: 5 parameters
- Morphological: 46 parameters

Key Features

Comprehensive Testing Capabilities:
- Chemical Analysis: Supports 14+2 parameters using photoelectric colorimetry with full-spectrum laminar flow technology.
- Physical Analysis: Measures 5 parameters, including color, specific gravity, turbidity, osmolarity, and conductivity.
- Morphological Analysis: Utilizes high-speed photography and medical image recognition technology to classify up to 46 formed elements in urine sediments.
High Throughput:
- Chemical Mode: Processes up to 240 samples per hour.
- Hybrid Mode (Chemical + Morphological): Handles up to 120 samples per hour.
Advanced Imaging Technology:
- Laminar Flow Technology: Ensures particles pass through the imaging area in a single layer, minimizing overlap and aggregation, with a sample carry-over rate of less than 0.05%.
- High-Speed Photography: Captures high-resolution images to enhance recognition accuracy and reduce the need for manual microscopy.
- Medical Image Recognition: Employs deep learning algorithms to classify up to 25 types of formed elements, combining precision with efficiency.
User-Friendly Design:
- Compact Footprint: Saves up to 50% of space compared to traditional workstations.
- Automated Sample Loading: Features self-loading of samples and strips, along with cap-break technology to minimize contamination.
- No Need for Centrifugation or Staining: Simplifies sample preparation and handling.

Technical Specifications

Dimensions: 687 mm (W) x 512 mm (D) x 530 mm (H)
Weight: 55 kg
Sample Capacity: Up to 60 samples, with 6 racks of 10 samples each
Throughput:
- Chemical Mode: 240 tests per hour
- Hybrid Mode: 120 tests per hour
Test Parameters:
- Chemical: 14+2 parameters
- Physical: 5 parameters
- Morphological: 46 parameters
