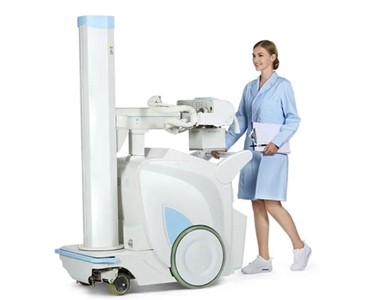

Browiner MobileSparkler Digital Mobile Veterinary Radiography System Get latest price

Read more...

To contact ARO Systems about Browiner MobileSparkler Digital Mobile Veterinary Radiography System use Get a quote.

Mobile Digital Radiography System

Our new mobile DR system could achieve high-frequency & high-voltage generator, large heat capacity of X-ray tube, battery storage and motorized drive unit, with abundant external interface. It can be widely used in radiology, orthopaedic, medical examination department, emergency room, ICU, operating room and neonatal paediatrics, and fully meet the demand of hospital digital radiography.

High-index Image Chain

High power & high voltage generator and large heat capacity of X-ray tube provide strong foundation for output.Wireless flat panel detector is free from cable and makes position more flexible. High pixel provides solid foundation for high quality images.

A Key to Unlock

Four key unlock buttons design, which is more easy to lock and operate, can realize all-directional and multi-angle positioning to meet various also complex radiography needs.

Large-size Touch Screen

The 19 inch large-size touch screen integrates the control and communication of the image system & high voltage generator, making the operation more intelligent and humanized.

Large Capacity for Battery Storage

Equipped with high quality battery, it has the advantage of short charging time, long standby time and long service life.

High Performance Industrial Computer

Fast image processing; Abundant external interface to meet various information interface extension.

Safe and Reliable, Easy to Move

Motorized drive and new type tension sensor, ensure free and relaxed movement of the equipment. Anti-collision design unit installed at the front of device, when encountering obstacles ahead, the braking system will brake automatically to ensure device’s and passers’ safety.

2 Column Versions

The mobile sparkler comes in 2 versions, standard non-collapsing column and collapsing or telescopic column version.

Veterinary Edition

With a vet specific interface and processing, this is the ideal mobile x-ray machine for vet clinics looking for mobile DR system with the power of a fixed room but with flexibility.

Specifications

Models

• Mobile Sparkler 300A/300B/300C
• Standard fixed column
• Telescopic Column

Flat Panel Detector

• X-ray Sensitive: 14x17inch

Generator

• Power: 32kW(max 40kW)
• kV Range: 40~150kV
• mA Range: 10~400mA
• mAs Range: 0.1~500mAs

X-Ray Tube

• Anode Heat Content: 150kHU

Physical Specifications

• Weight: 518kg
• Height: 182cm
• Width: 67cm
• Column Rotation Range: ±270°
• Tube Tilting Angle: ±180°
• Tube Vertical Rotation Angle: -30°~+90°
• Telescopic Arm Length Range:710~1240mm
• SID: 570~1800mm
• SID(optional): 680~2000mm
