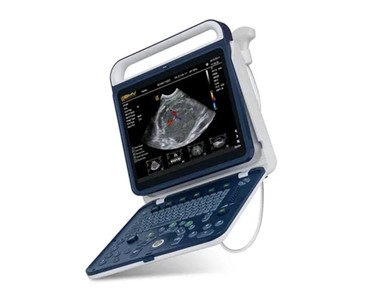

BMV BPU60 OPU OVUM PICK-UP Portable Vet Colour Doppler Ultrasound Get latest price

Read more...

To contact ARO Systems about BMV BPU60 OPU OVUM PICK-UP Portable Vet Colour Doppler Ultrasound use Get a quote.

BMV BPU60 OVUM PICK-UP Veterinary Ultrasound

BPU60 Vet OPU is a portable veterinary color Doppler ultrasound with superior image performance and diverse applications. Based on the advanced imaging technology and ergonomic design, BUP60 Vet OPU is equipped with superior image quality, comprehensive functions, high-cost effectiveness, and mobility, which are capable to provide very comprehensive imaging OPU solutions.

Using a BPU60 purpose-built ultrasound transducer, oocytes and antral follicles can be aspirated transvaginally from live animals. Studies performed on horses in 2015 showed that repeated transvaginal aspiration of follicles did not adversely affect fertility in subsequent cycles. On average, you can expect to harvest 10-15 oocytes per session and could get as many as six embryos from the harvested oocytes in both cattle and horses.

BMV new OPU transducer is the smallest of its kind on the market, allowing it to be used in heifers and even young mares. The transducer measures 61.5cm in length and connects to the ultrasound unit with a 200cm cable. The transducer is lightweight, weighing less than 1kg, and is easily guided with one hand. With 128 elements and a frequency band of 5.0-7.5MHz, the OPU transducer allows accurate visualization with very high resolution. The OPU transducer is a transducer with a 25mm field of view and a 150° angle across which the crystals are spread. This allows a wide view angle and easy visualization of the whole ovary in a single image.

Although primarily indicated for use in follicle aspiration and ovum pick up, the OPU transducer can also be used in aspirating cystic ovaries in female animals. The OPU transducer can be used with short and long needles and includes cannulas for use with needles from 12 to 18 gauge. As an all-in-one transducer, there are no loose parts or screws that need to be undone in order for the transducer to be cleaned. This allows for quick assembly with the needle guide and fast disinfection between animals.

When using the OPU transducer in conjunction with the BPU60 unit, follicles as small as 2mm can be visualized and aspirated.

All accessories and replacement parts for both the OPU transducer and the ultrasound units are available.

Specifications

OPU Probe

• Applications: OPU, need use together with ultrasound probe holder
• Frequency Bandwidth: 5.0/6.5/8.0/H8.0/H9.0/H10.0MHz
• Center frequency: 6.5 MHz
• Radius: 10 mm
• View angle: 150 degrees
• Scanning Depth: 36~175 mm
• Element: 128
• Ultrasound probe holder OPUH-1 available

Ultrasound probe holder

• Very lightweight and smooth probe holder provides easy handling
• Material warms up to body temperature very quickly
• Slim design enables oocyte aspiration in young animals when combined with a small probe
• Optimized needle outlet for recommended needles

Disposable oocyte aspiration needle

• Easy and inexpensive to replace
• New needle for each OPU session
• Short and easy to manipulate
• Suited for collecting follicular fluid from individual follicles
• 100 needles/pack
• For cows (1.2 x 75 mm)
• For heifers (0.9 x 70 mm)

Aspiration pump for OPU

• With media warming block
• Aspiration volume adjustable up to 310 mm Hg
• Warming temperature adjustable up to +50°C
• Available in 120 V or 240 V
