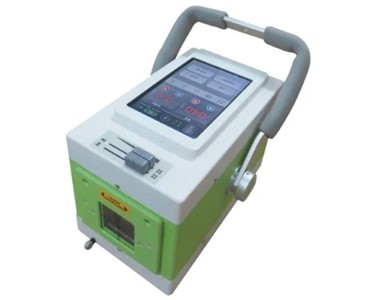

Ecotron EPX-1600B Battery Portable Veterinary X-Ray Generator Get latest price

Key Features:

• Provide high resolution imaging at lower dosages.
• Durable design with solid body.
• Touch screen console
• Calibrated cassette size indicator dials
• Available with Inverted control panel for table use.
• Two stage dynamic, Auto line compensation.
• Easy access to DR systems.
• Collimator with High Lux LED light and Dual Integrated Laser Pointers
• Wired handswitch
• Battery with Super Capacitor Technology
• Wireless/Wire PC interface(Optional)
• EMS-1000 or EMS-H Stand (Optional)
• Podoblock Stat-X Stand Range (Optional)
• Podoblock JiXtr Portable X-Ray Generator(Optional)

Specifications:

• Maximum Output Power: 1.6kW
• Generator Frequency: 100kHz
• kV Range: 40-90kV in 1kV steps
• mA Range: 10-20mA
• mAs Range: 0.4-100mAs
• Focal Spot: 0.8mm x 0.8mm
• Target Angle: 16 Deg
• Anode Heat Storage: 7kHU
• Input Voltage: 110V/230V
• Phase/Frequency: Single/50-60Hz
• Battery Voltage: 29.4VDC
• Battery Life: 999 exposures with one charge (typical)
• Battery Type: Lithium Ion Capacitor
• Dimensions: 335x153x170mm
• Machine Weight: 8.2kG
• Shipping Weight: 20kG

To contact ARO Systems about Ecotron EPX-1600B Battery Portable Veterinary X-Ray Generator use Get a quote.
