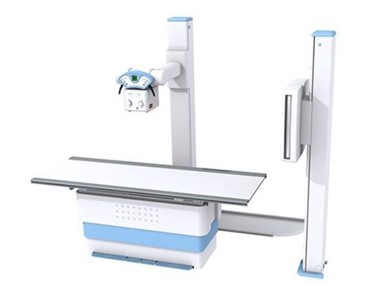

The PolyRad + Radiographic system is a compact system with a floor-mounted tube, a floating elevated table, and a wall stand/bucky. It allows for simple installation in departments that do not have the support structure or budget for a ceiling-mounted system. The PolyRad + provides imaging for any body part in any position of the patient in vertical, horizontal, and angled projections.

The system has been designed to focus on flexibility and user friendly operation for the radiographer and ultimate comfort for the patient.

The Radiologia PolyRad + can be configured depending on your exact clinical requirements and budget. From an analogue console with manual movement to complete auto tracking and positioning systems with multi-panel Canon DR systems.

Available in:

32kW
40kW
50kW

Available in Analogue or Digital DR (Canon) configuration.

50 Kw 3 Phase Generator Specifications

400V 50 Hz.
40kVp to 125kVp (150kVp optional).
0.1mAs to 630*mAs in 39 steps,
10 mA to 630mA in 19 steps,
10, 12.5, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125, 160, 200, 250, 320, 400, 500, 630
(0.001 to 10 seconds) in 38 steps.
