Philips - Mobile X-ray Machine | MobileDiagnost wDR Radiography 5700 M

Supplier: Philips Healthcare

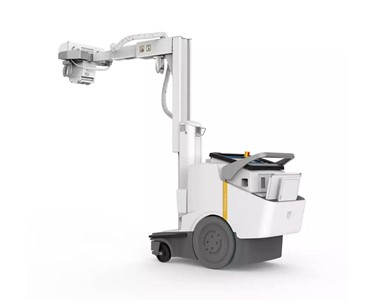

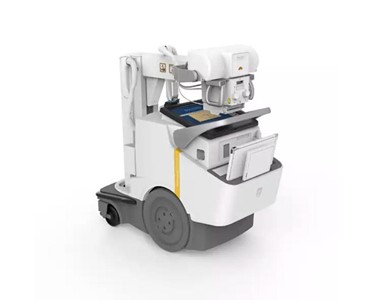

Mobile X-ray Machine | MobileDiagnost wDR Radiography 5700 M

MobileDiagnost wDR is a high-performance mobile X-ray system designed for superior workflow and brilliant digital imaging in demanding clinical environments.

Exceptional mobility and fast, high-quality digital images for clinical environments.

Overview

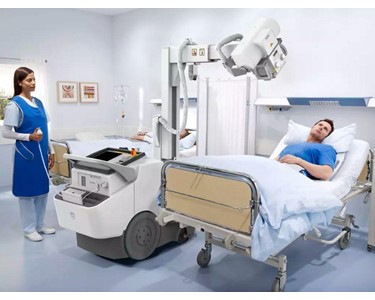

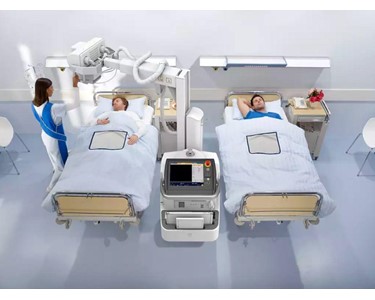

The mobile digital radiography system is engineered to deliver excellent mobility, seamless workflow, and advanced image quality. Ideal for use in operating rooms, emergency rooms, intensive care units, and general wards, it combines user-friendly operation with robust construction for busy healthcare settings.

Key Features

Excellent mobility: Sliding column allows improved visibility and maneuverability in tight clinical spaces.
Seamless workflow: Easy tubehead positioning, cable-free design, rapid availability of digital images, and a streamlined 3-click exam process help accelerate daily routines.
Outstanding image quality: Utilises SkyPlate wireless portable detectors and SkyFlow Plus technology for high-contrast images, supported by UNIQUE 2nd generation image processing and a 40 kW generator.

Specifications

Type	Mobile X-ray unit with sliding telescopic column
Dimensions (L × W × H)	1382 mm × 670 mm × 1330 mm (in parking position)
Wheel base length	600 mm
Motorisation	Up to 5 km/h (parking), 1.6 km/h (not in parking), 2.5 km/h (reverse)
Focal point distance from floor	53 cm to 202 cm
Tube column rotation	±317°
Batteries	Separate for drive and generator controls

Digital Detectors

SkyPlate wireless portable detectors (Digital Cesium Iodide (CsI))
Available sizes: Small (24×30 cm), Large (35×43 cm)
Active area: Small (28.4×22.2 cm), Large (34.48×42.12 cm)
Pixel size: 148 µm, Image resolution: Up to 3.38 Lp/mm
Detector weights: Small (1.6 kg), Large (2.8 kg)
Maximum load: 100 kg (punctual), 300 kg (distributed)

SkyPlate E Wireless Detector

Size: 35×43 cm
Active area: 34.5×42.5 cm
Image matrix: 2156×2653 pixels
Weight: 3.1 kg
Pixel size: 160 µm, Resolution: Up to 3.125 Lp/mm
Maximum load: 100 kg (punctual), 150 kg (distributed)

User Interface & Storage

17" touch-screen monitor
Integrated generator control and over 600 pre-programmable settings
Image storage capacity: up to 4,000 images

Generator and Tube Options

MobileDiagnost wDR Pro:
- 20 kW power
- 10–320 mA range
- Exposure: 0.001–1.25 s (SkyPlate E), 0.001–4 s (cassette)
- Focal spot: 0.3/1.0
- Tube voltage: 40–125 kV (steps of 1 kV)
- mAs range: 0.1–500 mAs
- Anode heat storage: 100 kJ
M90 Premium:
- 40 kW power
- 10–500 mA range
- Exposure: 0.001–1.25 s (SkyPlate E), 0.001–4 s (cassette)
- Focal spot: 0.7/1.3
- Tube voltage: 40–150 kV (steps of 1 kV)
- mAs range: 0.1–500 mAs
- Anode heat storage: 220 kJ

To contact Philips Healthcare about Philips Mobile X-ray Machine | MobileDiagnost wDR Radiography 5700 M use Get a quote.
