Operating Lamp (LED Surgical Light with ...

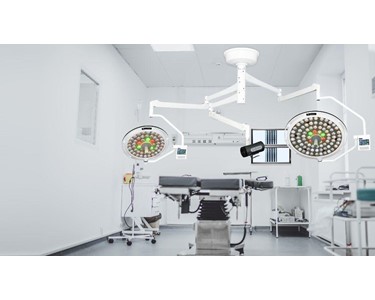

Operating Lamp (LED Surgical Light with Camera System)

Supplier: Austrade Medical Australia

The camera system will monitor the operation ﬁeld and transmit the high-deﬁnition surgical images to the hospital network. The recorded high- deﬁnition images and video can be used for remote consultation, remote teaching, and expert discussion.

Receive 1-3 days from order

Specifications of this product

Camera specifications: Image Sensor:1/2.8 type CMOS, Resolution:1920x1080, Digital zoom:12x, Optical zoom: central 10 x, external 30x
Digital Video Recorder Specifications: Operating system: Embedded LINUX operating system, Video output: 1 channel BNC,1 channel VGA,1 channel HDMI (1080P 30 frames) HD output, Video input: 4-channel SDI+ 4-channel 1080P IPC, Audio input: 4-channel RCA, Network: 1 network port 10 MBIT/s, 100 MBIT/s, and 1000 MBIT/s adaptive Ethernet ports, USB connector: 2*USB2.0 connector, Hard disk: Support 2 SATA connector( A disk supports a maximum of 3TB), Communication: 1 RS-485, supporting multiple PTZ protocols
LCD Monitor Specification: Size:21.5inch HD IPS LCD monitor, Max Resolution:1920*1080, Video Input: SDI*1,S- VEDIO*1,VGA*1,HDMI*1, Video output: SDI-1
SDI recorder and display termination: Size:21.5 inch HD IPS LCD monitor, Local video input: SDI*1,1920*1080 60Hz, 1280*720/60Hz, Resolution:1920*1080/60Hz, Network video input: 4 channels, resolution: 1920*1080/30Audio output:1 channel Double track/3.5mm connector Hz, Video output: VGA*1,HDMI*1, Audio input: 1 channel Double track/3.5mm connector, Network: 1 network port 10 MBIT/s, 100 MBIT/s, and 1000 MBIT/s adaptive Ethernet ports, USB connector:1*USB 3.0 connector , 1*USB 2.0 connector, Hard disk: Support 1 SATA connector( default hard disk is 1TB, a disk supports a maximum of 6TB), Communication: 1 RS-485

Features of this product

The anti-shaking and anti-noise functions: Can effectively overcome the image blur caused by vibration, and ? Filter the noise wave in the picture, even in the low light environment can obtain the cleaning e?ect of the picture.
HD Camera System: Through the Internet, HD camera system can realize remote consultation, large-screen meeting, remote teaching, etc., doctors can record the operating room live, seat training research, online learning precious resources
Optional companion solution:
- Solution 1: It can be equipped with built-in central/external camera, SDI HD LCD monitor, 4 channels HD-SDI digital hard disk video recorder to form the recording system.
- Solution 2: The system can be equipped with built-in central/external cameras and SDI HD recorder and display termination.

To contact Austrade Medical Australia about Operating Lamp (LED Surgical Light with Camera System) use Get a quote.

Specifications of this product

Camera specifications: Image Sensor:1/2.8 type CMOS, Resolution:1920x1080, Digital zoom:12x, Optical zoom: central 10 x, external 30x
Digital Video Recorder Specifications: Operating system: Embedded LINUX operating system, Video output: 1 channel BNC,1 channel VGA,1 channel HDMI (1080P 30 frames) HD output, Video input: 4-channel SDI+ 4-channel 1080P IPC, Audio input: 4-channel RCA, Network: 1 network port 10 MBIT/s, 100 MBIT/s, and 1000 MBIT/s adaptive Ethernet ports, USB connector: 2*USB2.0 connector, Hard disk: Support 2 SATA connector( A disk supports a maximum of 3TB), Communication: 1 RS-485, supporting multiple PTZ protocols
LCD Monitor Specification: Size:21.5inch HD IPS LCD monitor, Max Resolution:1920*1080, Video Input: SDI*1,S- VEDIO*1,VGA*1,HDMI*1, Video output: SDI-1
SDI recorder and display termination: Size:21.5 inch HD IPS LCD monitor, Local video input: SDI*1,1920*1080 60Hz, 1280*720/60Hz, Resolution:1920*1080/60Hz, Network video input: 4 channels, resolution: 1920*1080/30Audio output:1 channel Double track/3.5mm connector Hz, Video output: VGA*1,HDMI*1, Audio input: 1 channel Double track/3.5mm connector, Network: 1 network port 10 MBIT/s, 100 MBIT/s, and 1000 MBIT/s adaptive Ethernet ports, USB connector:1*USB 3.0 connector , 1*USB 2.0 connector, Hard disk: Support 1 SATA connector( default hard disk is 1TB, a disk supports a maximum of 6TB), Communication: 1 RS-485

Features of this product

The anti-shaking and anti-noise functions: Can effectively overcome the image blur caused by vibration, and ? Filter the noise wave in the picture, even in the low light environment can obtain the cleaning e?ect of the picture.
HD Camera System: Through the Internet, HD camera system can realize remote consultation, large-screen meeting, remote teaching, etc., doctors can record the operating room live, seat training research, online learning precious resources
Optional companion solution:
- Solution 1: It can be equipped with built-in central/external camera, SDI HD LCD monitor, 4 channels HD-SDI digital hard disk video recorder to form the recording system.
- Solution 2: The system can be equipped with built-in central/external cameras and SDI HD recorder and display termination.

Read less...

To contact Austrade Medical Australia about Operating Lamp (LED Surgical Light with Camera System) use Get a quote.
