High-energy, non-invasive shockwave therapy for effective pain relief and rehabilitation.

The LiKAWAVE VARIO 3i offers extracorporeal shock wave therapy (ESWT), a proven and effective option for pain relief and rehabilitation, utilising innovative Vario Logic Technology to alternate shockwave intensity and frequency. This device is designed for both acute pain management and reduction of symptom severity in conditions such as erectile dysfunction (IIEF).

Key Features

Non-invasive, medication-free, and surgery-free pain therapy
Wide focus shockwave technology for precise area treatment
HD ceramic projectile for enhanced durability, energy transfer, and corrosion resistance
Multiple treatment modes: Invert, Pulse, Triangle, Linear

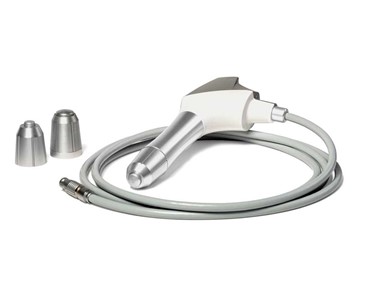

Ergonomic, lightweight handpiece with 2.5 m cable
Compact table device design with optional Porter for mobile workstation conversion
Comprehensive range of applicator sizes for variable penetration depths
Touchscreen interface (10.1-inch display)
Transport case for mobile use
Upgradeable patient database and additional Vario modes

Technical Specifications

Dimensions	24 cm (height, incl. feet) x 31 cm (depth) x 31 cm (width)
Weight	8.3 kg
Shockwave Count	Unlimited
Pressure	Up to 6.5 bar
Max Impulses per Treatment	5,000
Increment Steps	250
Frequency Range	1–25 Hz
Intensity Range	1–25
Maximum Energy	0.88 mJ/mm²
Maximum Penetration Depth	55 mm
Voltage Range	100–240 V
Touchscreen Size	10.1 inch

Applications

Upper Extremity:
- Shoulder, epicondylitis (lateral, medial), thumb basal joint arthritis
Lower Extremity:
- Hips, knee, shin splints, foot, achillodynia, heel spur
Spine:
- Cervical, thoracic, and lumbar regions (various muscle groups)

Accessories & Modes

Applicator sizes for multiple penetration depths (from 10 to 55 mm)
Ultrasound gel, optimum mobility via the Porter add-on, and user-friendly footswitch for adjusting treatment parameters
Transport case with casters for easy relocation

To contact Aerobe about Extracorporeal Shock Wave Therapy ESWT | VARIO 3i Shockwave Therapy Device use Get a quote.

Key Features

Non-invasive, medication-free, and surgery-free pain therapy
Wide focus shockwave technology for precise area treatment
HD ceramic projectile for enhanced durability, energy transfer, and corrosion resistance
Multiple treatment modes: Invert, Pulse, Triangle, Linear
Ergonomic, lightweight handpiece with 2.5 m cable
Compact table device design with optional Porter for mobile workstation conversion
Comprehensive range of applicator sizes for variable penetration depths
Touchscreen interface (10.1-inch display)
Transport case for mobile use
Upgradeable patient database and additional Vario modes

Technical Specifications

Dimensions	24 cm (height, incl. feet) x 31 cm (depth) x 31 cm (width)
Weight	8.3 kg
Shockwave Count	Unlimited
Pressure	Up to 6.5 bar
Max Impulses per Treatment	5,000
Increment Steps	250
Frequency Range	1–25 Hz
Intensity Range	1–25
Maximum Energy	0.88 mJ/mm²
Maximum Penetration Depth	55 mm
Voltage Range	100–240 V
Touchscreen Size	10.1 inch

Applications

Upper Extremity:
- Shoulder, epicondylitis (lateral, medial), thumb basal joint arthritis
Lower Extremity:
- Hips, knee, shin splints, foot, achillodynia, heel spur
Spine:
- Cervical, thoracic, and lumbar regions (various muscle groups)

Accessories & Modes

Applicator sizes for multiple penetration depths (from 10 to 55 mm)
Ultrasound gel, optimum mobility via the Porter add-on, and user-friendly footswitch for adjusting treatment parameters
Transport case with casters for easy relocation
