Biobase - Negative pressure hood with LED for compound preparation (BYKG-X)

Supplier: Advance Scientific Products Pty Ltd

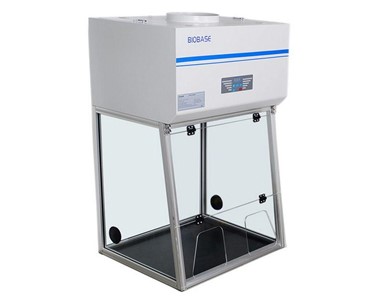

BYKG-X negative pressure compounding hood

The BYKG-X is a hood designed for the preparation of samples under negative pressure conditions in the working area to protect the operator & the samples from contamination. Constructed from cold-rolled steel with an anti-bacteria powder coating.

Great sample protection

Receive 1-2 weeks from order

Key Features

Negative pressure environment in work area to protect operator and samples
Cold-rolled steel construction with anti-bacteria powder coating
360L internal capacity
LED display
Active carbon pre-filter and HEPA filter
Acrylic front window (manual opening and closing): 660 mm opening
Airflow velocity range from 0.3 m/s - 0.8 m/s

Product Description

The BYKG-X is a hood designed for the preparation of samples under negative pressure conditions in the working area to protect the operator and the samples from contamination. It is constructed from cold-rolled steel with an anti-bacteria powder coating and has a 360L internal capacity. It has an LED display to control the airflow velocity from 0.3 m/s - 0.8 m/s.

Excellent visualisation of the working area of the BYKG-X is through a manually operated acrylic front window. Air filtration is achieved by an active carbon pre-filter and HEPA filter.

Specifications

Manufacturer	Biobase
Model number	BYKG-X
External size (W x D x H)	100 mm x 620 mm x 1150 mm
Internal size (W x D x H)	940 mm x 550 mm x 700 mm
Internal capacity	360L
Display	LED
Airflow velocity	≥ 0.3 m/s - 0.8 m/s
Construction material	Main body \| Cold-rolled steel with anti-bacteria powder coating Work table \| Solid physicochemical steel base
Pre-filter	Active carbon filter
Filter	HEPA filter
Noise	≤ 60 dB
Front window	Acrylic \| Manual opening and closing
Maximum opening	660 mm
LED lamp	1 x 12W
UV lamp	1 x 15W \| Emission: 253.7 nm
Power consumption	200W
Electrical requirements	220 VAC±10% \| 50/60Hz
Standard accessories	Active carbon filter \| HEPA filter \| LED lamp \| 4 m PVC exhaust duct (250 mm)
Optional accessories	Base stand \| UV lamp x 2
Gross weight	145 Kg

To contact Advance Scientific Products Pty Ltd about Biobase Negative pressure hood with LED for compound preparation (BYKG-X) use Get a quote.

Key Features

Negative pressure environment in work area to protect operator and samples
Cold-rolled steel construction with anti-bacteria powder coating
360L internal capacity
LED display
Active carbon pre-filter and HEPA filter
Acrylic front window (manual opening and closing): 660 mm opening
Airflow velocity range from 0.3 m/s - 0.8 m/s

Product Description

Excellent visualisation of the working area of the BYKG-X is through a manually operated acrylic front window. Air filtration is achieved by an active carbon pre-filter and HEPA filter.

Specifications

Manufacturer	Biobase
Model number	BYKG-X
External size (W x D x H)	100 mm x 620 mm x 1150 mm
Internal size (W x D x H)	940 mm x 550 mm x 700 mm
Internal capacity	360L
Display	LED
Airflow velocity	≥ 0.3 m/s - 0.8 m/s
Construction material	Main body \| Cold-rolled steel with anti-bacteria powder coating Work table \| Solid physicochemical steel base
Pre-filter	Active carbon filter
Filter	HEPA filter
Noise	≤ 60 dB
Front window	Acrylic \| Manual opening and closing
Maximum opening	660 mm
LED lamp	1 x 12W
UV lamp	1 x 15W \| Emission: 253.7 nm
Power consumption	200W
Electrical requirements	220 VAC±10% \| 50/60Hz
Standard accessories	Active carbon filter \| HEPA filter \| LED lamp \| 4 m PVC exhaust duct (250 mm)
Optional accessories	Base stand \| UV lamp x 2
Gross weight	145 Kg

Read less...

To contact Advance Scientific Products Pty Ltd about Biobase Negative pressure hood with LED for compound preparation (BYKG-X) use Get a quote.
