Wiggens - High speed homogeniser with speed range from 0 to 25000 rpm | D-130C

Supplier: Advance Scientific Products Pty Ltd

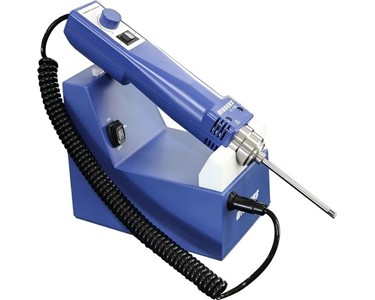

D-130C handheld homogeniser

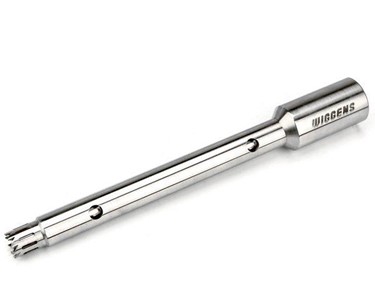

Stainless steel probe for D-130C

The D-130C homogeniser is lightweight so it is ideal for hand-held processing of small samples in volumes from 0.5 mL - 250 mL (based on use in water) and depending upon the size of the probe that is used.

Wide processing range

Receive 1-2 weeks from order

Key Features

Ideal for mixing, emulsification, shredding or chopping
Wide processing range from 0.5 mL - 250 mL depending upon the probe (please see options below)
Lightweight for easy hand-held operation
Autoclavable stainless steel probe shafts
Probes are easily dismantled for cleaning
High speed motor with speed range from 0 rpm to 25,000 rpm

Product Description

The D-130C homogeniser is lightweight so it is ideal for hand-held processing of small samples in volumes from 0.5 mL - 250 mL (based on use in water) and depending upon the size of the probe that is used. A speed range from 0 rpm - 25000 rpm provides sufficient power for a wide range of sample types. The homogeniser is connected to a base stand by a 2m spiral extension cable.

Two stainless steel probes with different volume capacities are available for the D-130C. These probes are chemically-resistant, autoclavable and can be easily dismantled for cleaning.

Purchasing Options

The D-130C is available in two package options:

Part Number	Description
W3050130-P1	D-130C high speed homogeniser motor and base stand with shaft 5E dispersing probe
W3050130-P2	D-130C high speed homogeniser motor and base stand with shaft 12E dispersing probe

Probe Specifications

Part Number	Item Description
5E	Probe for D-130C high speed homogeniser \| length: 118 mm \| Rotor diameter: 3 mm \| Stator diameter 5.5 mm \| Processing range: 0.5 mL - 50 mL \| Linear speed: 4.7 m/s \| Min/max immersion depth: 25 mm/75 mm \| Dispersed particle size (µ): 10 - 50 (suspensions): 1-10 (emulsions)
12E	Probe for D-130C high speed homogeniser \| length: 149 mm \| Rotor diameter: 9 mm \| Stator diameter: 12 mm \|Processing range: 3 mL - 250 mL \| Linear speed: 14.1 m/s \| Min/max immersion depth: 40 mm/110 mm \| Dispersed particle size (µ): 10 - 50 (suspensions): 1-10 (emulsions)

Specifications

Manufacturer	Wiggens
Model number	D-130C
Speed (with zero load)	0 - 25000 rpm
Processing range (with water)	0.5 mL - 250 mL (depends on probe)
Input/output power (W)	140/100
Probe material	316L stainless steel
Dimensions (homogeniser motor)	44 mm x 58 mm x 226 mm
Dimensions (base stand)	160 mm x 185 mm x 162 mm
Motor weight	2 Kg
Electrical specifications (input/output)	100 -240 VAC: 50/60 Hz \| 24 VDC

To contact Advance Scientific Products Pty Ltd about Wiggens High speed homogeniser with speed range from 0 to 25000 rpm | D-130C use Get a quote.

Key Features

Ideal for mixing, emulsification, shredding or chopping
Wide processing range from 0.5 mL - 250 mL depending upon the probe (please see options below)
Lightweight for easy hand-held operation
Autoclavable stainless steel probe shafts
Probes are easily dismantled for cleaning
High speed motor with speed range from 0 rpm to 25,000 rpm

Product Description

Two stainless steel probes with different volume capacities are available for the D-130C. These probes are chemically-resistant, autoclavable and can be easily dismantled for cleaning.

Purchasing Options

The D-130C is available in two package options:

Part Number	Description
W3050130-P1	D-130C high speed homogeniser motor and base stand with shaft 5E dispersing probe
W3050130-P2	D-130C high speed homogeniser motor and base stand with shaft 12E dispersing probe

Probe Specifications

Part Number	Item Description
5E	Probe for D-130C high speed homogeniser \| length: 118 mm \| Rotor diameter: 3 mm \| Stator diameter 5.5 mm \| Processing range: 0.5 mL - 50 mL \| Linear speed: 4.7 m/s \| Min/max immersion depth: 25 mm/75 mm \| Dispersed particle size (µ): 10 - 50 (suspensions): 1-10 (emulsions)
12E	Probe for D-130C high speed homogeniser \| length: 149 mm \| Rotor diameter: 9 mm \| Stator diameter: 12 mm \|Processing range: 3 mL - 250 mL \| Linear speed: 14.1 m/s \| Min/max immersion depth: 40 mm/110 mm \| Dispersed particle size (µ): 10 - 50 (suspensions): 1-10 (emulsions)

Specifications

Manufacturer	Wiggens
Model number	D-130C
Speed (with zero load)	0 - 25000 rpm
Processing range (with water)	0.5 mL - 250 mL (depends on probe)
Input/output power (W)	140/100
Probe material	316L stainless steel
Dimensions (homogeniser motor)	44 mm x 58 mm x 226 mm
Dimensions (base stand)	160 mm x 185 mm x 162 mm
Motor weight	2 Kg
Electrical specifications (input/output)	100 -240 VAC: 50/60 Hz \| 24 VDC

Read less...

To contact Advance Scientific Products Pty Ltd about Wiggens High speed homogeniser with speed range from 0 to 25000 rpm | D-130C use Get a quote.
