Biobase Blood collection monitor | 400 mL ...
Key Features
Product Description

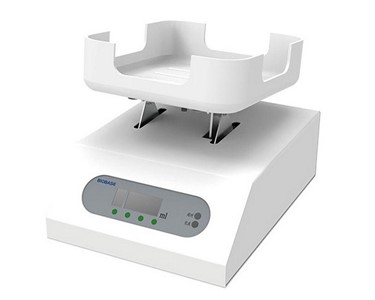

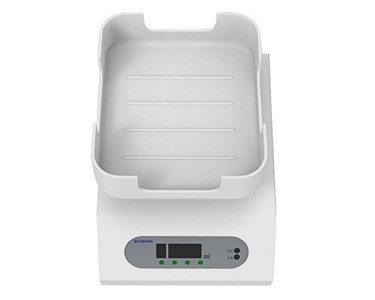

The BCM-4 blood collection monitor has a measuring range of 0 - 400 mL and a gentle shaking mode to ensure minimal cellular disruption. It features taring and calibrating function to ensure optimum measuring accuracy and a pre-set volume function for accurate blood collection. Automatic audio and visual alarms alert when pre-set volume is reached.
Specifications
Model number | BCM-4 |
Measuring range | 0 - 400 mL |
Display | LED |
Resolution | 1 mL |
Blood weight | 1.05 g/mL |
Collection speed | 0.5 mL - 3 mL/second |
Static error | ±2 grams |
Swing angle | 13±2° |
Swing rate | 30 - 32 rpm |
Alarm | Audio and visual collection finished |
Battery | Lithium battery | 12V | 5000mAh | 3 hours battery life |
Operating temperature range | 5°C - 40°C |
Power consumption | 17 W |
Electrical requirements | 110~240 VAC | 50/60 Hz |
Instrument dimensions (W x D x H) | 190 mm x 240 mm x 158 mm |
Weight | 2.5 Kg |
To contact Advance Scientific Products Pty Ltd about Biobase Blood collection monitor | 400 mL capacity | BCM-4 use Get a quote.
Key Features
Product Description
The BCM-4 blood collection monitor has a measuring range of 0 - 400 mL and a gentle shaking mode to ensure minimal cellular disruption. It features taring and calibrating function to ensure optimum measuring accuracy and a pre-set volume function for accurate blood collection. Automatic audio and visual alarms alert when pre-set volume is reached.
Specifications
Model number | BCM-4 |
Measuring range | 0 - 400 mL |
Display | LED |
Resolution | 1 mL |
Blood weight | 1.05 g/mL |
Collection speed | 0.5 mL - 3 mL/second |
Static error | ±2 grams |
Swing angle | 13±2° |
Swing rate | 30 - 32 rpm |
Alarm | Audio and visual collection finished |
Battery | Lithium battery | 12V | 5000mAh | 3 hours battery life |
Operating temperature range | 5°C - 40°C |
Power consumption | 17 W |
Electrical requirements | 110~240 VAC | 50/60 Hz |
Instrument dimensions (W x D x H) | 190 mm x 240 mm x 158 mm |
Weight | 2.5 Kg |
To contact Advance Scientific Products Pty Ltd about Biobase Blood collection monitor | 400 mL capacity | BCM-4 use Get a quote.
