Biobase - Negative pressure hood with LED for compound preparation | BYKG-VII

Supplier: Advance Scientific Products Pty Ltd

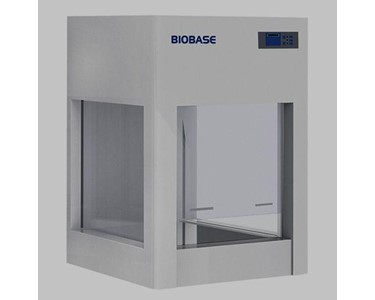

BYKG-VII negative pressure compounding hood

The BYKG-VII is a hood designed for the preparation of samples under negative pressure conditions in the working area to protect the operator and samples from contamination. It has an LED display to control the airflow velocity up to 0.5 m/s.

Prevents sample contamination

Receive 1-2 weeks from order

Key Features

Negative pressure environment in work area to protect operator and samples
Cold-rolled steel construction with anti-bacteria powder coating
60L internal capacity
LED display
Active carbon pre-filter and HEPA main filter
Glass front window (manual opening and closing): 300 mm opening | toughened glass | UV-resistant
Airflow velocity range up to 0.5 m/s

Product Description

The BYKG-VII is a hood designed for the preparation of samples under negative pressure conditions in the working area to protect the operator and the samples from contamination. It is constructed from cold-rolled steel with an anti-bacteria powder coating and an LED display to control the airflow velocity up to 0.5 m/s. It has a 60L internal capacity.

Excellent visualisation of the working area of the BYKG-VII is through a manually operated glass front window made of toughened glass that is UV-resistant to protect the operator. Air filtration is achieved by an active carbon pre-filter and a HEPA main filter.

Specifications

Manufacturer	Biobase
Model number	BYKG-VII
External size (W x D x H)	550 mm x 460 mm x 700 mm
Internal size (W x D x H)	480 mm x 340 mm x 370 mm
Internal capacity	60L
Display	LED
Airflow velocity	Up to 0.5 m/s
Construction material	Main body \| Cold-rolled steel with anti-bacteria powder coating Work table \| 304 stainless steel
Pre-filter	Active carbon filter
Filter	HEPA filter
Noise	≤ 60 dB
Front window	Manual opening and closing \| 5 mm thick toughened glass \| UV-resistant
Maximum window opening	300 mm
LED lamp	1 x 4W
UV lamp	1 x 8W \| Emission: 254 nm
Power consumption	100W
Electrical requirements	220 VAC±10% \| 50/60Hz
Standard accessories	Active carbon filter \| LED lamp \| HEPA filter \| UV lamp x 1
Optional accessories	None
Gross weight	57 Kg

To contact Advance Scientific Products Pty Ltd about Biobase Negative pressure hood with LED for compound preparation | BYKG-VII use Get a quote.
