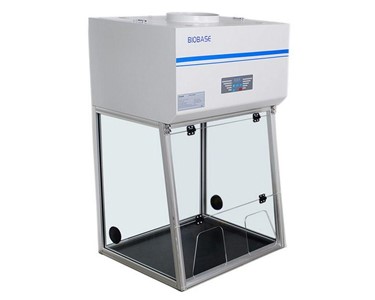

Biobase Negative pressure hood with LED ...
Key Features
Product Description
The BYKG-IX is a hood designed for the preparation of samples under negative pressure conditions in the working area to protect the operator and the samples from contamination. It is constructed from cold-rolled steel with an anti-bacteria powder coating and has an internal capacity of 246L. It has an LED display panel to control the airflow velocity from 0.3 m/s - 0.8 m/s.
Excellent visualisation of the working area of the BYKG-IX is through a manually operated acrylic front window. Air filtration is achieved by an active carbon filter.
Specifications
Manufacturer | Biobase |
Model number | BYKG-IX |
External size (W x D x H) | 700 mm x 620 mm x 1150 mm |
Internal size (W x D x H) | 640 mm x 550 mm x 700 mm |
Internal capacity | 246L |
Display | LED |
Airflow velocity | ≥ 0.3 m/s - 0.8 m/s |
Construction material | Main body | Cold-rolled steel with anti-bacteria powder coating Work table | Solid physicochemical steel base |
Pre-filter | Active carbon filter |
Noise | ≤ 60 dB |
Front window | Acrylic | Manual opening and closing |
Maximum opening | 660 mm |
LED lamp | 2x 4W |
UV lamp | 1 x 15W | Emission: 253.7 nm |
Power consumption | 300W |
Electrical requirements | 220 VAC±10% | 50/60Hz |
Standard accessories | Active carbon filter | LED lamp x 2 | UV lamp x 2 |
Optional accessories | Base stand | UV lamp x 2 |
Gross weight | 100 Kg |
To contact Advance Scientific Products Pty Ltd about Biobase Negative pressure hood with LED for compound preparation (BYKG-IX) use Get a quote.
