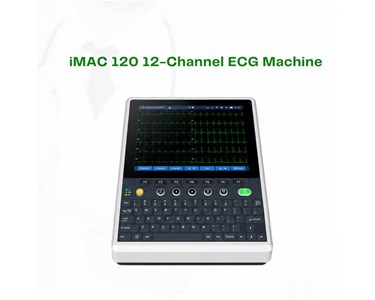

APS Technology iMAC 120 12-Channel ECG ...
The APS Technology iMAC 120 12-Channel ECG Machine is a professional electrocardiograph designed to deliver accurate cardiac diagnostics, efficient clinical workflows, and seamless digital connectivity for modern healthcare facilities.
Featuring simultaneous 12-lead ECG acquisition, advanced Glasgow ECG interpretation, automatic ECG measurements, and a responsive 10.4-inch colour touchscreen, the iMAC 120 supports clinicians in performing fast and reliable cardiac assessments across hospitals, cardiology departments, emergency care, specialist clinics, medical centres, and outpatient services.
With integrated Wi-Fi, LAN, USB, HL7 and DICOM connectivity, along with over 20,000 ECG report storage capacity and more than 10.5 hours of continuous battery operation, the iMAC 120 is well suited for both fixed clinical environments and mobile healthcare applications.
Simultaneous 12-lead ECG acquisition
Advanced Glasgow ECG Interpretation Algorithm
Automatic ECG measurements and analysis
Minnesota Code analysis
Pacemaker detection
10.4-inch colour LCD touchscreen (1024 × 768)
Full QWERTY keyboard with shortcut keys
Integrated high-resolution thermal printer
Foldable carry handle with adjustable viewing stand
Wi-Fi and LAN networking
USB and SD card support
HL7, DICOM, HIS and EMR compatibility
FTP, HTTP and Samba data transfer protocols
Stores over 20,000 ECG reports
Digital report export (PDF, JPG, PNG, XML, HL7, DICOM)
Rechargeable Li-ion battery with over 10.5 hours operation
Adult and paediatric patient support
Multi-language user interface
Hospitals
Cardiology Departments
Emergency Departments
Medical Centres
Specialist Clinics
General Practice
Outpatient Departments
Health Screening Services
Community Healthcare
Mobile Healthcare
Occupational Health
Preventive Cardiac Screening

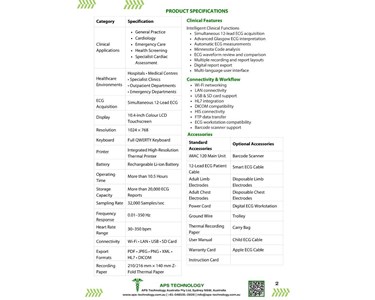

Specification | Details |
ECG Acquisition | Simultaneous 12-Lead ECG |
Display | 10.4-inch Colour LCD Touchscreen |
Screen Resolution | 1024 × 768 |
Keyboard | Full QWERTY Keyboard |
Printer | Integrated High-Resolution Thermal Printer |
Battery | Rechargeable Li-ion |
Continuous Battery Operation | More than 10.5 Hours |
Internal Storage | Over 20,000 ECG Reports |
Sampling Rate | 32,000 Samples/sec |
A/D Resolution | 24-bit |
Frequency Response | 0.01–350 Hz |
Heart Rate Range | 30–350 bpm |
Input Impedance | =60 MO |
Gain | Auto, 2.5, 5, 10, 20, 40 mm/mV |
Paper Speed | 5, 6.25, 10, 12.5, 25, 50 mm/s |
Recording Paper | 210/216 mm × 140 mm Z-Fold Thermal Paper |
Connectivity | Wi-Fi, LAN, USB, SD Card |
Digital Integration | HL7, DICOM, HIS, EMR |
Export Formats | PDF, JPG, PNG, XML, HL7, DICOM |
Dimensions | 285 × 360 × 94 mm |
Weight | Approx. 3.6 kg (with battery) |
12-Lead Electrocardiogram (ECG)
Heart Rate
Cardiac Rhythm Analysis
Automatic ECG Measurements
Glasgow ECG Interpretation
Minnesota Code Analysis
Pacemaker Detection
Bradycardia & Tachycardia Detection
Waveform Review and Comparison
ECG Report Analysis
Not Applicable
The iMAC 120 is a 12-channel electrocardiograph and does not require ultrasound probes.
Produces high-quality simultaneous 12-lead ECG recordings for accurate cardiac assessment.
Supports clinician decision-making with advanced Glasgow ECG interpretation and automated measurements.
Improves workflow through an intuitive touchscreen interface, integrated thermal printer, and full QWERTY keyboard.
Simplifies digital record management with Wi-Fi, LAN, USB, HL7, DICOM, HIS and EMR integration.
Enables efficient patient data storage with capacity for over 20,000 ECG reports.
Suitable for mobile clinical applications with more than 10.5 hours of battery operation and a foldable carry handle.
Reduces examination time while supporting efficient patient throughput in busy healthcare environments.
Supports both adult and paediatric ECG examinations.
Easily integrates into existing hospital and clinical information systems.
Designed for dependable performance across a wide range of healthcare settings.
Public and Private Hospitals
Cardiology Departments
Emergency & Critical Care Units
Medical Centres
Specialist Cardiology Clinics
General Practice Clinics
Day Hospitals
Outpatient Clinics
Health Screening Providers
Occupational Health Services
Community Healthcare Organisations
Mobile Diagnostic Services
Healthcare Procurement Teams
Diagnostic Imaging & Cardiac Assessment Centres
To contact APS Technology Australia Pty Ltd about APS Technology iMAC 120 12-Channel ECG Machine use Get a quote.
