W&H Contra-Angle Surgical Handpieces

W&H - Contra-Angle Surgical Handpieces

Supplier: IVOCLAR VIVADENT

Contra-Angle Surgical Handpieces

Surgical interventions represent a great challenge. To meet this challenge a number of surgical handpieces are required. W&H contra-angle handpieces made from high-quality stainless steel with special coating are particularly robust.

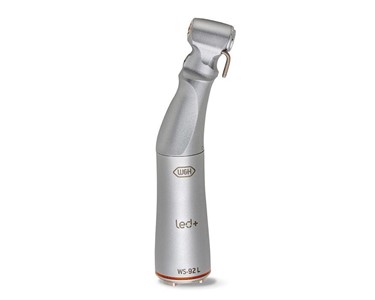

The new surgical contra-angle handpieces with mini-LED+ and W&H connection

Fatigue-free and flexible operation
Optimum cooling and illumination of the treatment site. High-quality stainless steel with a scratch-resistant coating makes the contra-angle handpieces robust and gives them a particularly long service life.

Matched to Implantmed SI-1023, SI-1015 and SI-1010
Optimal illumination at all stages of the work
Fatigue-free working thanks to ergonomic balance
Robust and long service life due to high-quality stainless steel with scratch-resistant coating

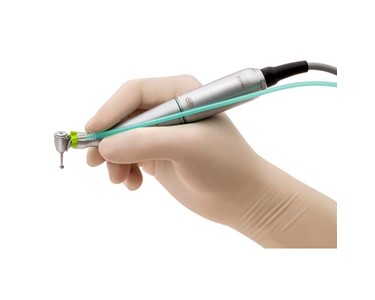

Developed for the W&H electric motor EM-19 LC
Work with daylight quality
Can be dismantled for thorough cleaning
Thermo washer disinfectable and sterilisable

W&H Connection	WS-75 L	WS-56 L	WS-91 L	WS-92 L
Transmission ratio	20:1	1:1	1:2.7	1:2.7
External spray	Single	Single	Triple	Triple
Rotary instruments	For burs with CA shank Ø 2.35mm	For burs with CA shank Ø 2.35mm	For burs with FG shank Ø 1.6mm	For burs with FG shank Ø 1.6mm
Maximum drive speed	50,000 min^-1	50,000 min^-1	50,000 min^-1	50,000 min^-1

Surgical contra-angle handpieces with mini-LED+ and generator

Work with daylight quality

As the undisputed leader in LED technology, W&H has developed surgical contra-angle handpieces with mini-LED+, which offers outstanding illumination with high-contrast, natural light.

Natural reproduction of red tones
Independent power supply with integrated generator
Fatigue-free working thanks to optimal ergonomics
Durable and robust due to high-quality stainless steel and scratch-resistant coating
Can be dismantled for thorough cleaning
Thermo washer disinfectable and sterilisable

Generator	WS-75 L G	WS-56 L G	WS-91 L G	WS-92 L G
Transmission ratio	20:1	1:1	1:2.7	1:2.7
External spray	Single	Single	Triple	Triple
Rotary instruments	For burs with CA shank Ø 2.35mm	For burs with CA shank Ø 2.35mm	For burs with FG shank Ø 1.6mm	For burs with FG shank Ø 1.6mm
Maximum drive speed	40,000 min^-1	40,000 min^-1	40,000 min^-1	40,000 min^-1

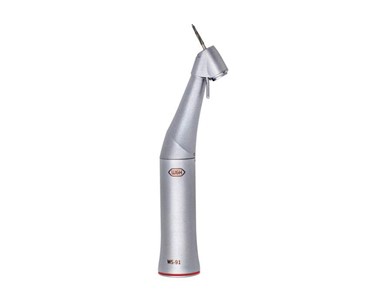

Surgical contra-angle handpieces with 45° head

The contra-angle handpieces with 45° head unite the advantages of straight and contra-angle handpieces for the first time.

This is particularly helpful in the surgical extraction of wisdom teeth, precise tooth separations and apical resections.

Depending on the drive speed, the ratio of 1:2.7 makes it possible to achieve speeds of up to 135,000 revolutions per minute on the rotary instrument.

Considerably better visibility of the treatment site thanks to the 45° head
Unite the advantages of a straight and contra-angle handpiece
Makes the access to the maxillary and mandibular molars much simpler
A 3x spray guarantees sufficient cooling of the rotary instrument and the treatment site

Surgical contra-angle handpieces without light

Providing the best treatment

The high standards required for the achievement of optimum surgical results are met by the W&H range of surgical contra-angle handpieces, whose design is the result of close attention to detail, high operational safety and stainless-steel construction.

Durable and robust due to high-quality stainless steel and scratch-resistant coating (except WI-75 E/KM)
Fatigue-free working thanks to optimal ergonomics
Can be dismantled for thorough cleaning (except WI-75 E/KM)
Thermo washer disinfectable and sterilisable

Without Light	WS-75	WS-56	WS-91	WS-92
Transmission ratio	20:1	1:1	1:2.7	1:2.7
External spray	Single	Single	Triple	Triple
Rotary instruments	For burs with CA shank Ø 2.35mm	For burs with CA shank Ø 2.35mm	For burs with FG shank Ø 1.6mm	For burs with FG shank Ø 1.6mm
Maximum drive speed	50,000 min^-1	50,000 min^-1	50,000 min^-1	50,000 min^-1

The new surgical contra-angle handpieces with mini-LED+ and W&H connection

Matched to Implantmed SI-1023, SI-1015 and SI-1010
Optimal illumination at all stages of the work
Fatigue-free working thanks to ergonomic balance
Robust and long service life due to high-quality stainless steel with scratch-resistant coating
Developed for the W&H electric motor EM-19 LC
Work with daylight quality
Can be dismantled for thorough cleaning
Thermo washer disinfectable and sterilisable

W&H Connection	WS-75 L	WS-56 L	WS-91 L	WS-92 L
Transmission ratio	20:1	1:1	1:2.7	1:2.7
External spray	Single	Single	Triple	Triple
Rotary instruments	For burs with CA shank Ø 2.35mm	For burs with CA shank Ø 2.35mm	For burs with FG shank Ø 1.6mm	For burs with FG shank Ø 1.6mm
Maximum drive speed	50,000 min^-1	50,000 min^-1	50,000 min^-1	50,000 min^-1

Surgical contra-angle handpieces with mini-LED+ and generator

Work with daylight quality

As the undisputed leader in LED technology, W&H has developed surgical contra-angle handpieces with mini-LED+, which offers outstanding illumination with high-contrast, natural light.

Natural reproduction of red tones
Independent power supply with integrated generator
Fatigue-free working thanks to optimal ergonomics
Durable and robust due to high-quality stainless steel and scratch-resistant coating
Can be dismantled for thorough cleaning
Thermo washer disinfectable and sterilisable

Generator	WS-75 L G	WS-56 L G	WS-91 L G	WS-92 L G
Transmission ratio	20:1	1:1	1:2.7	1:2.7
External spray	Single	Single	Triple	Triple
Rotary instruments	For burs with CA shank Ø 2.35mm	For burs with CA shank Ø 2.35mm	For burs with FG shank Ø 1.6mm	For burs with FG shank Ø 1.6mm
Maximum drive speed	40,000 min^-1	40,000 min^-1	40,000 min^-1	40,000 min^-1

Surgical contra-angle handpieces with 45° head

Considerably better visibility of the treatment site thanks to the 45° head
Unite the advantages of a straight and contra-angle handpiece
Makes the access to the maxillary and mandibular molars much simpler
A 3x spray guarantees sufficient cooling of the rotary instrument and the treatment site

Surgical contra-angle handpieces without light

Providing the best treatment

Durable and robust due to high-quality stainless steel and scratch-resistant coating (except WI-75 E/KM)
Fatigue-free working thanks to optimal ergonomics
Can be dismantled for thorough cleaning (except WI-75 E/KM)
Thermo washer disinfectable and sterilisable

Without Light	WS-75	WS-56	WS-91	WS-92
Transmission ratio	20:1	1:1	1:2.7	1:2.7
External spray	Single	Single	Triple	Triple
Rotary instruments	For burs with CA shank Ø 2.35mm	For burs with CA shank Ø 2.35mm	For burs with FG shank Ø 1.6mm	For burs with FG shank Ø 1.6mm
Maximum drive speed	50,000 min^-1	50,000 min^-1	50,000 min^-1	50,000 min^-1

Read less...

To contact IVOCLAR VIVADENT about W&H Contra-Angle Surgical Handpieces use Get a quote.

W&H Oral Surgery and Implantology Brochure(6.47MB)
