Vacc-Safe Vacc-Safe VSC-3KVA18 Continuum ...

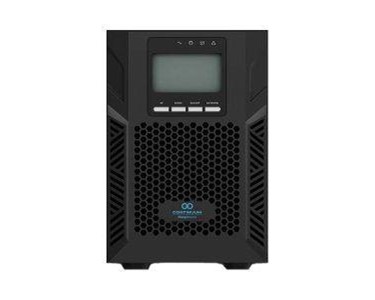

The Vacc-Safe VSC-3KVA18 Continuum UPS provides uninterruptible power supply for critical systems, specifically designed to engineer an extended backup time for medical applications. This unit employs True Online Double Conversion technology, delivering a clean, regulated Pure Sinewave AC output. This advanced technology completely isolates sensitive electronic loads, such as vaccine fridges and laboratory equipment, from poor power events, voltage dips, and frequency fluctuations.
The UPS boasts a 3 kVA capacity with 2.7 kW active power. Input nominal voltage is 220/230/240V AC Single Phase, accepting a voltage range of 176 to 264V AC, and operates at a frequency of 40-70Hz. Output voltage regulates to 220/230/240V AC Single Phase with a Power Factor of 0.9.
The system achieves its extended run time using 18 total batteries. The main UPS module contains 6 internal 12V 9Ah VRLA batteries, and the accompanying Extended Battery Module (EBM) houses 12 batteries. This comprehensive battery configuration ensures a significantly longer backup duration during a complete mains failure. The entire system operates in a Mini Tower design, which features a small physical footprint and maintains silent operation (less than 50 dB at 1 metre).
Battery Configuration (Standard Extended):
Total Batteries: 18 high-capacity batteries (6 internal + 12 EBM).
Battery Type: BAT-12V9AH VRLA.
Maximum EBMs: Supports up to 4 Extended Battery Modules (EBMs).
Dimensions and Installation:
UPS Dimensions (WxDxH): 191 x 460 x 337 mm.
UPS Weight: 24.5 kg.
EBM Weight: 38.5 kg.
Monitoring and Connectivity:
Display: Features an LCD Display for real-time monitoring of Input/Battery/Output Voltage, Load %, and Remaining Backup Time.
Communication: Supports standard USB communication and offers optional SNMP Ethernet Adaptor or Relay Output Card for remote network control.
Maintenance: Hot-Swappable Battery capability allows EBMs to be serviced without interrupting power to the load.
To contact ENLAKE about Vacc-Safe Vacc-Safe VSC-3KVA18 Continuum 3KVA UPS with 18 Batteries use Get a quote.
