Vacc-Safe Vacc-Safe VSC-1KVA Continuum ...

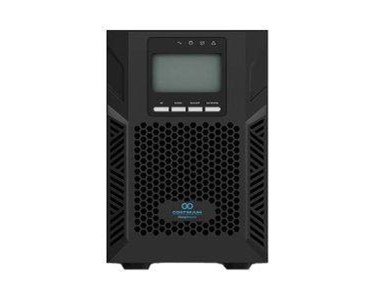

The Vacc-Safe VSC-1KVA Continuum 1KVA UPS provides uninterruptible power supply for critical systems, specifically designed to engineer an extended backup time for lower-capacity applications.
This unit employs True Online Double Conversion technology, delivering a clean, regulated Pure Sinewave AC output. This advanced technology completely isolates sensitive electronic loads, such as smaller vaccine fridges and laboratory equipment, from poor power events, voltage dips, and frequency fluctuations.
The UPS boasts a 1 kVA capacity with 900 W active power. Input nominal voltage is 220/230/240V AC Single Phase, accepting a voltage range of 176 to 264V AC, and operates at a frequency of 40-70Hz. Output voltage regulates to 220/230/240V AC Single Phase with a Power Factor of 0.9.
The main UPS module contains 3 internal 12V 9Ah VRLA batteries. The unit configures the system for extended run time, leveraging the flexibility of the Continuum line which supports up to 4 Extended Battery Modules (EBMs). Each EBM houses 6 batteries. This configuration ensures a significantly longer backup duration during a complete mains failure.
Battery Configuration (Standard Extended):
Number of Batteries (UPS + 1 EBM): 9 high-capacity batteries (3 internal + 6 EBM).
Battery Type: BAT-12V9AH VRLA.
Runtime: The configuration provides extended backup time.
Dimensions and Installation:
UPS Dimensions (WxDxH): 144 x 399 x 209 mm.
UPS Weight: 12.5 kg.
EBM Weight: 18.5 kg.
Monitoring and Connectivity:
Display: Features an LCD Display for real-time monitoring of Input/Battery/Output Voltage, Input/Output Frequency, Load %, and Remaining Backup Time.
Connectivity: Supports standard USB communication and offers optional SNMP Ethernet Adaptor or Relay Output Card for remote network control.
To contact ENLAKE about Vacc-Safe Vacc-Safe VSC-1KVA Continuum 1KVA UPS with 9 Batteries use Get a quote.
