Steelco CSSD Washer Disinfectors & Automation ...

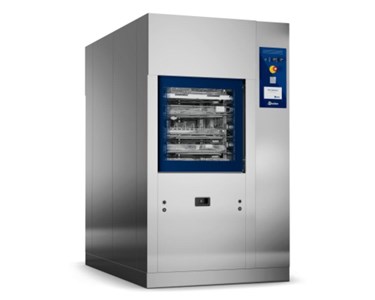

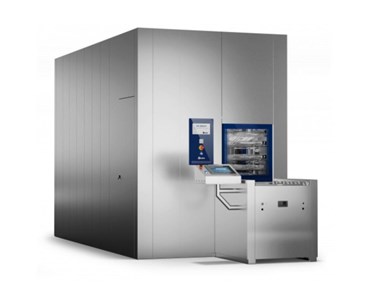

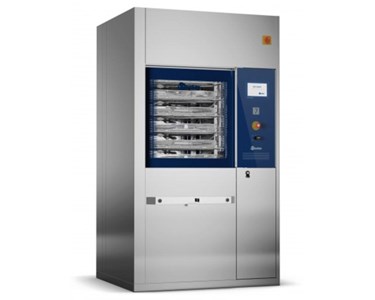

Steelco - CSSD Washer Disinfectors & Automation Systems | Large Capacity

Supplier: In Vitro Technologies

CSSD Washer Disinfectors & Automation Systems | Large Capacity

Designed to meet the strict reprocessing needs of Central Sterile Supply Departments, these advanced washer-disinfectors deliver high performance in cleaning, disinfection, and drying of medical instruments.

Unmatched productivity and automation with high-capacity, energy-saving washer-disinfectors for medical instrument reprocessing.

Key Features & Benefits

Comprehensive range of washer-disinfectors suitable for CSSD, supporting flexible installation in various architectural settings.
Supports both manual and fully automated loading/unloading with motorised solutions, improving workflow and productivity.
High-capacity single- and multi-chamber models, with each chamber able to process up to 18 DIN trays (DIN tray: 480 x 250 x 50 mm).
Multi-chamber systems can process up to 86 DIN trays per hour through simultaneous, independent cycles.
Constructed with chemical-resistant AISI 316L stainless steel and rounded internal corners to prevent soil build-up and bacterial growth.
Eco-friendly design with water and energy saving functions, including water recovery and heat recovery systems.
Fast cycle options dramatically reduce overall reprocessing times, energy, and water consumption by up to 50%.
Customisable with a comprehensive set of dedicated wash carts and modules for specific instruments—MIS, ophthalmic, dental, robotic, and more.
User-friendly HMI interface with up to 10'' touchscreen, 5-level user access, barcode/RFID program selection, and integrated data traceability.
SteelcoData Live and Pro traceability software ensures end-to-end monitoring and management of workflow and reprocessing cycles.
Available options for ATS (Automatic Transfer System) and M-ATS (self-driving robot transfer) enhance automation.

Technical Specifications & Configurations

Model	Chamber Size (mm)	Overall Dimensions (mm)	Capacity	Doors
DS 900, DS 1000, DS 1000N	660 x 785 x 675	900-1100 x 960 x 1940	18 DIN trays (per chamber)	Single/Double
TW 3000/2	660 x 785 x 675	1150 x 1775 x 1980	18 DIN trays (per chamber), dual-chamber	Sliding
TW 3000/3-5	660 x 785 x 675	2100 x 2937-4854 x 2650	18 DIN trays (per chamber), triple/four/five-chamber	Sliding

All models provide full front access for maintenance.
Electric, steam, or mixed heating (for redundancy or utility flexibility).
Automatic dosing pumps for detergents and disinfectants, controlled by flow meters.
Options for single-, double-, or triple-pre-heating tanks for process speed and water re-use.
Electrically heated HEPA H14 filtered forced air drying, regulated by humidity sensor for energy savings.
Integrated printer, Ethernet port for traceability, multicolor chamber lighting for status indication.

Module & Accessory Compatibility

Wash carts and modules for all surgical and specialty instruments—MIS, dental, ophthalmic, anaesthesia, robotic, micro-instruments, laboratory glassware, and more.
Flexible system for module and accessory combinations, including double-deck and specialty storage solutions.
Optional accessories for secure instrument connection, full coverage, and easy manual handling.

Automation & Data Management

ATS and M-ATS solutions for automatic loading, unloading, and distribution of carts.
Configurable according to spatial and productivity needs—narrow barrier, multi-chamber cascades, or tunnel systems.
SteelcoData Live (web-based real time and historic device/cycle monitoring) and SteelcoData Pro (instrument-level traceability with HL7 compatibility).

Sustainability Highlights

Water savings exceeding 25% with water reuse systems.
Energy savings by heat recovery and optimised drying using humidity sensor-controlled phase termination.
Reduced manual pre-treatment of instruments with optional high-capacity ultrasonic washer (US 1000).

To contact In Vitro Technologies about Steelco CSSD Washer Disinfectors & Automation Systems | Large Capacity use Get a quote.
