Modsel Eye & ENT Chair | VSM-20V

Modsel - Eye & ENT Chair | VSM-20V

Supplier: Modsel

Eye & ENT Chair | VSM-20V

Purpose-built for ENT, eye and dental procedures requiring precision positioning. Built with direct input from clinicians, the VSM-20V combines smooth electronic positioning with a unique adjustable headrest to support patient comfort

Receive 1-3 days from order

Positioning made seamless

Designed with direct feedback and insights from leading Eye, ENT, plastics and dental professionals, the Modsel Eye & ENT Chair features a breakthrough headrest design combining state-of-the-art technology and ergonomics to deliver exceptional functionality when close proximity is required.

Convenient, touch-button controls allow the surgeon and support team to quickly, safely and smoothly adjust the headrest, chair height and patient position throughout the procedure, transport and recovery.

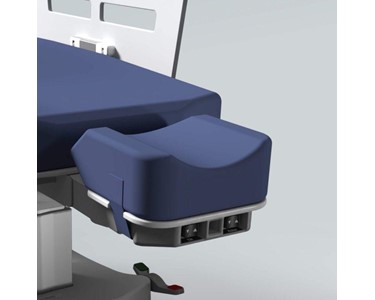

Infinitely adjustable headrest with tilt and height functionality
One-touch, electronic control for precise positioning and minute adjustments

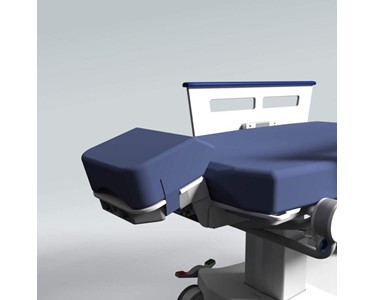

Reversible cushioned headrest with flat or scalloped shape for tailored patient positioning

Key Benefits

Greater throughput: Patients can remain in the same chair for admission, procedure and recovery, reducing risk and enhancing efficiency.
Leading weight capacity: Modsel stretcher chairs are built with a super strong subframe that can hold and lift a class-leading 400kg/880lb.
Supercharged: The long-life, cordless, fast-charge battery system keeps things moving all day (and night).
Clean and hygienic: The smooth, gap-free platform makes cleaning easy and prevents fluid ingress to meet the highest infection control standards.

Application

Ideal for Eye, ENT, plastics and dental care.

Specifications

Overall Size: 780mm/30.7″ wide x 1130mm/44.5″ long (1830mm/72.0″ lying flat). 100mm/4″ wider option available
Mattress size (with headrest): 1830mm/72.0″ long x 650mm/25.6″ wide with 500mm/19.7″ deep seat. 100mm/4″ wider option available
Mattress Construction: 100mm/4″ thick, premium 4-layer foam, with welded pressure relieving cover
Height Range: 480mm/18.9″ – 860mm/33.9″ with lie-flat, forward and reverse tilt
SWL: 400kg/880lbs
Backrest: 0 to 85º with CPR emergency quick release
Castors: Precision 150mm/6″ twin wheel with 4-wheel braking and center steering

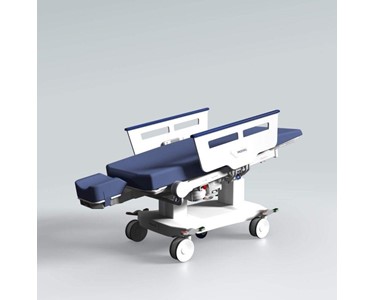

Trendelenburg: 15º both head and foot down
Wheelbase: 590mm/23.2″ wide overall x 750mm/29.5″ long
Undercarriage clearance: 140mm/5.5″

Product Codes

VSM-20V
100mm Wide Chair Option; VSM-201

To contact Modsel about Modsel Eye & ENT Chair | VSM-20V use Get a quote.

Positioning made seamless

Infinitely adjustable headrest with tilt and height functionality
One-touch, electronic control for precise positioning and minute adjustments
Reversible cushioned headrest with flat or scalloped shape for tailored patient positioning

Key Benefits

Greater throughput: Patients can remain in the same chair for admission, procedure and recovery, reducing risk and enhancing efficiency.
Leading weight capacity: Modsel stretcher chairs are built with a super strong subframe that can hold and lift a class-leading 400kg/880lb.
Supercharged: The long-life, cordless, fast-charge battery system keeps things moving all day (and night).
Clean and hygienic: The smooth, gap-free platform makes cleaning easy and prevents fluid ingress to meet the highest infection control standards.

Application

Ideal for Eye, ENT, plastics and dental care.

Specifications

Overall Size: 780mm/30.7″ wide x 1130mm/44.5″ long (1830mm/72.0″ lying flat). 100mm/4″ wider option available
Mattress size (with headrest): 1830mm/72.0″ long x 650mm/25.6″ wide with 500mm/19.7″ deep seat. 100mm/4″ wider option available
Mattress Construction: 100mm/4″ thick, premium 4-layer foam, with welded pressure relieving cover
Height Range: 480mm/18.9″ – 860mm/33.9″ with lie-flat, forward and reverse tilt
SWL: 400kg/880lbs
Backrest: 0 to 85º with CPR emergency quick release
Castors: Precision 150mm/6″ twin wheel with 4-wheel braking and center steering
Trendelenburg: 15º both head and foot down
Wheelbase: 590mm/23.2″ wide overall x 750mm/29.5″ long
Undercarriage clearance: 140mm/5.5″

Product Codes

VSM-20V
100mm Wide Chair Option; VSM-201

Read less...

To contact Modsel about Modsel Eye & ENT Chair | VSM-20V use Get a quote.

eye-ent-chair-vsm-20v-specifications(0.25MB)
