Biobase UV PCR workstation for nucleic ...
Key Features
Product Description

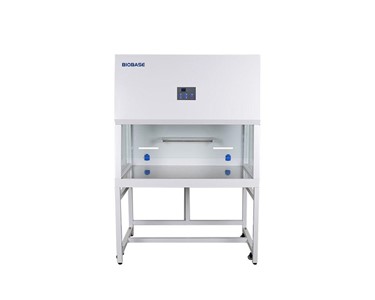

The PCR-1300 workstation is specifically designed to provide a sterile and nucleic acid-free environment for PCR reactions. It has an LCD display and a cold-rolled steel main body with an anti-bacteria powder coating. Toughened anti-UV glass front and side windows protect the operator from harmful UV exposure and an interlock function only allows the UV lamp to be switched on when the front window is closed.
The PCR-1300's UV sterilization system emits at 254 nm and is controlled by a UV timer with a range from 0 - 90 minutes with an automatic cut off when the time expires. It has an adjustable airflow velocity from 0.3 m/s - 0.5 m/s and a pre-filter and HEPA filter with 99.999% efficiency at 0.3μm.
Incorporated into the PCR-1300 is an external shelf and two internal waterproof sockets to connect instrumentation such as vortexers. It also features a memory function in case of power-failure.
Standard accessories include UV lamp, a fluorescent lamp, a base stand, two waterproof sockets and an internal shelf. An optional electric height-adjustable base stand is also available.
Specifications
Manufacturer | Biobase |
Model number | PCR-1300 |
External size (W x D x H) | 1300 mm x 700 mm x 1770 mm |
Internal size (W x D x H) | 1200 mm x 595 mm x 550 mm |
Work surface height | 750 mm |
Construction | Main body: Cold-rolled steel with anti-bacteria powder coating Work table: 304 stainless steel |
Front and side windows | 5 mm toughened glass | anti-UV | motorised front window |
Maximum opening | 300 mm |
Pre-filter | Polyester fiber, washable |
Filter | HEPA | 99.995% efficiency at 0.3μm |
Airflow velocity | 0.3 m/s ~ 0.5 m/s | speed adjustable |
Noise | ≤65 dB |
UV lamp | 30W x 1 | 254 nm emission | with timer (0 - 90 minutes) |
LED lamp | 12W x 2 |
Illumination | ≥350 lux |
Internal shelf (W x D x H) | Stainless steel | 502 mm x 150 mm x 50 mm |
Casters | Universal casters with leveling feet |
Power | 600W |
Waterproof sockets | Two | total load ≤500W |
Electrical requirements | 220VAC ±10% : 50/60Hz |
Standard accessories | UV lamp | fluorescent lamp | base stand | waterproof socket x 2 | internal shelf |
Optional accessories | Electric height adjustable base stand |
Gross weight | 231 Kg |
To contact Advance Scientific Products Pty Ltd about Biobase UV PCR workstation for nucleic acid denaturation | 1300 mm | PCR-1300 use Get a quote.
Key Features
Product Description
The PCR-1300 workstation is specifically designed to provide a sterile and nucleic acid-free environment for PCR reactions. It has an LCD display and a cold-rolled steel main body with an anti-bacteria powder coating. Toughened anti-UV glass front and side windows protect the operator from harmful UV exposure and an interlock function only allows the UV lamp to be switched on when the front window is closed.
The PCR-1300's UV sterilization system emits at 254 nm and is controlled by a UV timer with a range from 0 - 90 minutes with an automatic cut off when the time expires. It has an adjustable airflow velocity from 0.3 m/s - 0.5 m/s and a pre-filter and HEPA filter with 99.999% efficiency at 0.3μm.
Incorporated into the PCR-1300 is an external shelf and two internal waterproof sockets to connect instrumentation such as vortexers. It also features a memory function in case of power-failure.
Standard accessories include UV lamp, a fluorescent lamp, a base stand, two waterproof sockets and an internal shelf. An optional electric height-adjustable base stand is also available.
Specifications
Manufacturer | Biobase |
Model number | PCR-1300 |
External size (W x D x H) | 1300 mm x 700 mm x 1770 mm |
Internal size (W x D x H) | 1200 mm x 595 mm x 550 mm |
Work surface height | 750 mm |
Construction | Main body: Cold-rolled steel with anti-bacteria powder coating Work table: 304 stainless steel |
Front and side windows | 5 mm toughened glass | anti-UV | motorised front window |
Maximum opening | 300 mm |
Pre-filter | Polyester fiber, washable |
Filter | HEPA | 99.995% efficiency at 0.3μm |
Airflow velocity | 0.3 m/s ~ 0.5 m/s | speed adjustable |
Noise | ≤65 dB |
UV lamp | 30W x 1 | 254 nm emission | with timer (0 - 90 minutes) |
LED lamp | 12W x 2 |
Illumination | ≥350 lux |
Internal shelf (W x D x H) | Stainless steel | 502 mm x 150 mm x 50 mm |
Casters | Universal casters with leveling feet |
Power | 600W |
Waterproof sockets | Two | total load ≤500W |
Electrical requirements | 220VAC ±10% : 50/60Hz |
Standard accessories | UV lamp | fluorescent lamp | base stand | waterproof socket x 2 | internal shelf |
Optional accessories | Electric height adjustable base stand |
Gross weight | 231 Kg |
To contact Advance Scientific Products Pty Ltd about Biobase UV PCR workstation for nucleic acid denaturation | 1300 mm | PCR-1300 use Get a quote.
