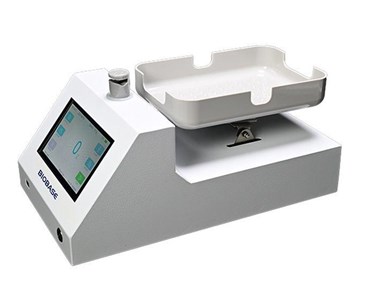

BCM-12C Blood Collection Monitor

The BCM-12C blood collection monitor has a measuring range of 20 mL - 1200 mL and a gentle shaking motion to ensure minimal cellular disruption. It features taring and calibrating functions to ensure optimum measuring accuracy.

Selectable pre-set collection volumes

Receive 2-4 weeks from order

Key Features

Gentle shaking motion to ensure minimal cellular disruption
Collection range from 20 mL - 1200 mL
178 mm HD IPS touch screen displaying operational parameters and real-time display of blood collection weight and volume
Selectable pre-set collection volumes of 100 mL: 200 mL: 300 mL: 400 mL
Microcomputer programme control
Automatic clamping line
Audio alarm to alert end user if flow rate is too high or too low allowing for the flow rate range to be reset
Taring and calibrating functions to ensure optimum measuring accuracy
Storage of collected data that can also be exported to a computer

Product Description

The BCM-12C blood collection monitor has a collection range of 20 mL - 1200 mL and a gentle shaking motion to ensure minimal cellular disruption. It features taring and calibrating functions to ensure optimum measuring accuracy and a pre-set volume function for accurate blood collection.

The unit features a 178 mm HD IPS touch screen displaying operational parameters and real-time display of blood collection weight and volume. End users can choose from four selectable pre-set collection volumes (100 mL, 200 mL, 300 mL, and 400mL).

The BCM-12C also incorporates an automatic clamping line to prevent overfilling and an audio alarm to alert the end-user if the flow rate is too high or too low.

Specifications

Model number	BCM-12C
Collection range	20 mL - 1200 mL
Selectable pre-set collection volumes	100 mL: 200 mL: 300 mL: 400mL
Display	178 mm HD IPS touch screen
Resolution	1 mL
Blood weight	1.05 grams/mL
Collection speed	0.5 mL - 3 mL/sec.
Static error	±1%
Swing rate	30 - 32 rpm
Swing angle	13° ± 2°
Alarm	Buzzer alarm
Tubing diameter for clamping line	Outer Diameter: 3 mm - 6 mm Wall thickness: 0.5 mm
Ambient operating temperature range	0 to 40°C: Relative humidity less than 85%.
Power consumption	50 W
Electrical requirements	110/220 VAC ± 10% \| 50/60 Hz
Instrument dimensions (W x D x H)	380 mm x 220 mm x 150 mm
Weight	5.2 Kg

To contact Advance Scientific Products Pty Ltd about Biobase BCM-12C blood collection monitor use Get a quote.

Key Features

Gentle shaking motion to ensure minimal cellular disruption
Collection range from 20 mL - 1200 mL
178 mm HD IPS touch screen displaying operational parameters and real-time display of blood collection weight and volume
Selectable pre-set collection volumes of 100 mL: 200 mL: 300 mL: 400 mL
Microcomputer programme control
Automatic clamping line
Audio alarm to alert end user if flow rate is too high or too low allowing for the flow rate range to be reset
Taring and calibrating functions to ensure optimum measuring accuracy
Storage of collected data that can also be exported to a computer

Product Description

The BCM-12C also incorporates an automatic clamping line to prevent overfilling and an audio alarm to alert the end-user if the flow rate is too high or too low.

Specifications

Model number	BCM-12C
Collection range	20 mL - 1200 mL
Selectable pre-set collection volumes	100 mL: 200 mL: 300 mL: 400mL
Display	178 mm HD IPS touch screen
Resolution	1 mL
Blood weight	1.05 grams/mL
Collection speed	0.5 mL - 3 mL/sec.
Static error	±1%
Swing rate	30 - 32 rpm
Swing angle	13° ± 2°
Alarm	Buzzer alarm
Tubing diameter for clamping line	Outer Diameter: 3 mm - 6 mm Wall thickness: 0.5 mm
Ambient operating temperature range	0 to 40°C: Relative humidity less than 85%.
Power consumption	50 W
Electrical requirements	110/220 VAC ± 10% \| 50/60 Hz
Instrument dimensions (W x D x H)	380 mm x 220 mm x 150 mm
Weight	5.2 Kg

Read less...

To contact Advance Scientific Products Pty Ltd about Biobase BCM-12C blood collection monitor use Get a quote.

BCM-12C Blood Collection Monitor(1.18MB)
