W&H Straight & Contra-Angle Handpieces | ...

W&H - Straight & Contra-Angle Handpieces | Alegra

Supplier: IVOCLAR VIVADENT

Straight & Contra-Angle Handpieces | Alegra

With Alegra dental straight and contra-angle handpieces from W&H the treatment of your patient is very efficient and extremely safe.

Alegra Straight and Contra-angle Handpieces without light

Small head and ergonomic design
The Alegra straight or contra-angle handpiece is comfortable in the hand. Thanks to the excellent ergonomics, the straight and contra-angle handpieces from W&H prevent excessive strain on your hands during preparation. The small contra-angle head allows optimal view of the treatment site.

Robust and durable
Ergonomic design
Simple bur changing with the push-button chucking system
Thermo washer disinfectable and sterilisable

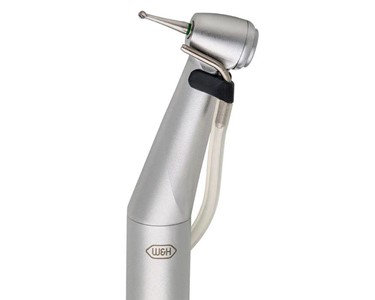

External coolant supply (spray clip, coolant hose, nozzle cleaner) available as accessories

Outer diameter of the sheath 20mm	WE-56	WE-57	WE-66	HE-43
Transmision ratio	1:1	1:1	4:1	1:1
Maximum motor speed	40,000 min^-1	40,000 min^-1	40,000 min^-1	40,000 min^-1
Head size	Ø 10.1mm	Ø 10.1mm	Ø 10.1mm	-
Head height (with 19mm bur)	20.8mm	22.7mm	20.8mm	-
Rotary Instruments	Contra-Angle (CA) Burs	Friction Grip (FG) Burs	Contra-Angle (CA) Burs	Handpiece (HP) & Contra-Angle (CA) Burs
Instrument shaft diameter	2.35mm	1.6mm	2.35mm	2.35mm
Maximum permitted bur length	34mm	25mm	34mm	HP: 50mm, CA: 34mm

Alegra Contra-angle Handpieces with LED+ light

More colour. More contrast. LED+
LED+ contra-angle handpieces from W&H offer an incomparably high colour rendering index (CRI). The self-generated LED light is of daylight quality, renders colours naturally and is many times brighter than a conventional halogen light.

Independent sterilisable LED light
High colour rendering index of more than 90
Robust design
Thermo washer disinfectable and sterilisable

Outer diameter of the sheath 20mm	WE-56 LED G	WE-66 LEED G	WE-99 LED G
Transmission ratio	1:1	4:1	1:4.5
Colour coding	Blue	Green	Red
Maximum motor speed	40,000 min^-1	40,000 min^-1	40,000 min^-1
Head size	Ø 10.1mm	Ø 10.1mm	Ø 10.1mm
Head height (with 19mm bur)	20.7mm	20.7mm	22.3mm
Rotary Instruments	Contra-Angle (CA) burs	Contra-Angle (CA) burs	Friction Grip (FG) burs
Instrument shank diameter	2.35mm	2.35mm	1.6mm
Maximum permitted bur length	34mm	34mm	25mm
Spray	Single	Single	Triple

Alegra Straight and Contra-angle Handpieces without light

Light construction and slender design

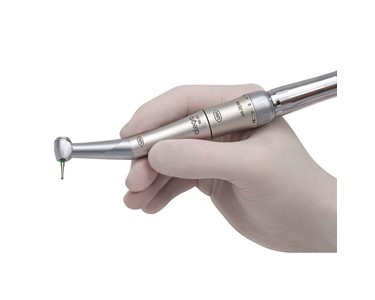

The ultralight design of the Alegra straight and contra-angle handpieces reduces fatigue. With the micro air motor, the Alegra straight or contra-angle handpiece is perfectly balanced.

W&H offers the optimal range of air motors for your Alegra straight and contra-angle handpieces.

Robust and durable
Ergonomic design
Simple bur changing with the push-button chucking system
Outer diameter of the sheath: 18mm
Component replacement by the user
Sterilizable
External coolant supply (spray clip, coolant hose, nozzle cleaner) available as accessories

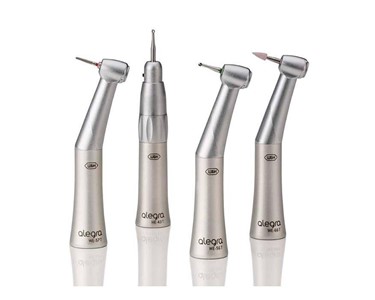

Outer diameter of the sheath 18mm	WE-56 T	WE-57 T	WE-66 T	HE-43 T
Transmision ratio	1:1	1:1	4:1	1:1
Maximum motor speed	40,000 min ^-1	40,000 min^-1	40,000 min^-1	40,000 min^-1
Head size	Ø 10.1mm	Ø 10.1mm	Ø 10.1mm	Ø 10.1mm
Head height (with 19mm bur)	20.8mm	22.7mm	20.8mm	-
Rotary instruments	Contra-Angle (CA) Burs	Friction Grip (FG) burs	Contra-Angle (CA) Burs	Handpiece (HP) & Contra-Angle (CA) Burs
Instrument shank diameter	2.35mm	1.6mm	2.35mm	2.35mm
Maximum permitted bur length	34mm	25mm	34mm	HP: 50mm CA: 34mm

Alegra Straight and Contra-angle Handpieces without light

Robust and durable
Ergonomic design
Simple bur changing with the push-button chucking system
Thermo washer disinfectable and sterilisable
External coolant supply (spray clip, coolant hose, nozzle cleaner) available as accessories

Outer diameter of the sheath 20mm	WE-56	WE-57	WE-66	HE-43
Transmision ratio	1:1	1:1	4:1	1:1
Maximum motor speed	40,000 min^-1	40,000 min^-1	40,000 min^-1	40,000 min^-1
Head size	Ø 10.1mm	Ø 10.1mm	Ø 10.1mm	-
Head height (with 19mm bur)	20.8mm	22.7mm	20.8mm	-
Rotary Instruments	Contra-Angle (CA) Burs	Friction Grip (FG) Burs	Contra-Angle (CA) Burs	Handpiece (HP) & Contra-Angle (CA) Burs
Instrument shaft diameter	2.35mm	1.6mm	2.35mm	2.35mm
Maximum permitted bur length	34mm	25mm	34mm	HP: 50mm, CA: 34mm

Alegra Contra-angle Handpieces with LED+ light

Independent sterilisable LED light
High colour rendering index of more than 90
Robust design
Thermo washer disinfectable and sterilisable

Outer diameter of the sheath 20mm	WE-56 LED G	WE-66 LEED G	WE-99 LED G
Transmission ratio	1:1	4:1	1:4.5
Colour coding	Blue	Green	Red
Maximum motor speed	40,000 min^-1	40,000 min^-1	40,000 min^-1
Head size	Ø 10.1mm	Ø 10.1mm	Ø 10.1mm
Head height (with 19mm bur)	20.7mm	20.7mm	22.3mm
Rotary Instruments	Contra-Angle (CA) burs	Contra-Angle (CA) burs	Friction Grip (FG) burs
Instrument shank diameter	2.35mm	2.35mm	1.6mm
Maximum permitted bur length	34mm	34mm	25mm
Spray	Single	Single	Triple

Alegra Straight and Contra-angle Handpieces without light

W&H offers the optimal range of air motors for your Alegra straight and contra-angle handpieces.

Robust and durable
Ergonomic design
Simple bur changing with the push-button chucking system
Outer diameter of the sheath: 18mm
Component replacement by the user
Sterilizable
External coolant supply (spray clip, coolant hose, nozzle cleaner) available as accessories

Outer diameter of the sheath 18mm	WE-56 T	WE-57 T	WE-66 T	HE-43 T
Transmision ratio	1:1	1:1	4:1	1:1
Maximum motor speed	40,000 min ^-1	40,000 min^-1	40,000 min^-1	40,000 min^-1
Head size	Ø 10.1mm	Ø 10.1mm	Ø 10.1mm	Ø 10.1mm
Head height (with 19mm bur)	20.8mm	22.7mm	20.8mm	-
Rotary instruments	Contra-Angle (CA) Burs	Friction Grip (FG) burs	Contra-Angle (CA) Burs	Handpiece (HP) & Contra-Angle (CA) Burs
Instrument shank diameter	2.35mm	1.6mm	2.35mm	2.35mm
Maximum permitted bur length	34mm	25mm	34mm	HP: 50mm CA: 34mm

Read less...

To contact IVOCLAR VIVADENT about W&H Straight & Contra-Angle Handpieces | Alegra use Get a quote.

W&H Alegra Straight & Contra-Angle Handpiece Brochure(1.30MB)

W&H Alegra LED Straight & Contra-Angle Handpiece Brochure(0.62MB)

W&H Alegra T Series Straight & Contra-Angle Handpiece Brochure(1.74MB)
